1691524 - Simplicity Cart Collector Cart Collector - Cart Group Parts Diagram

Cart Collector

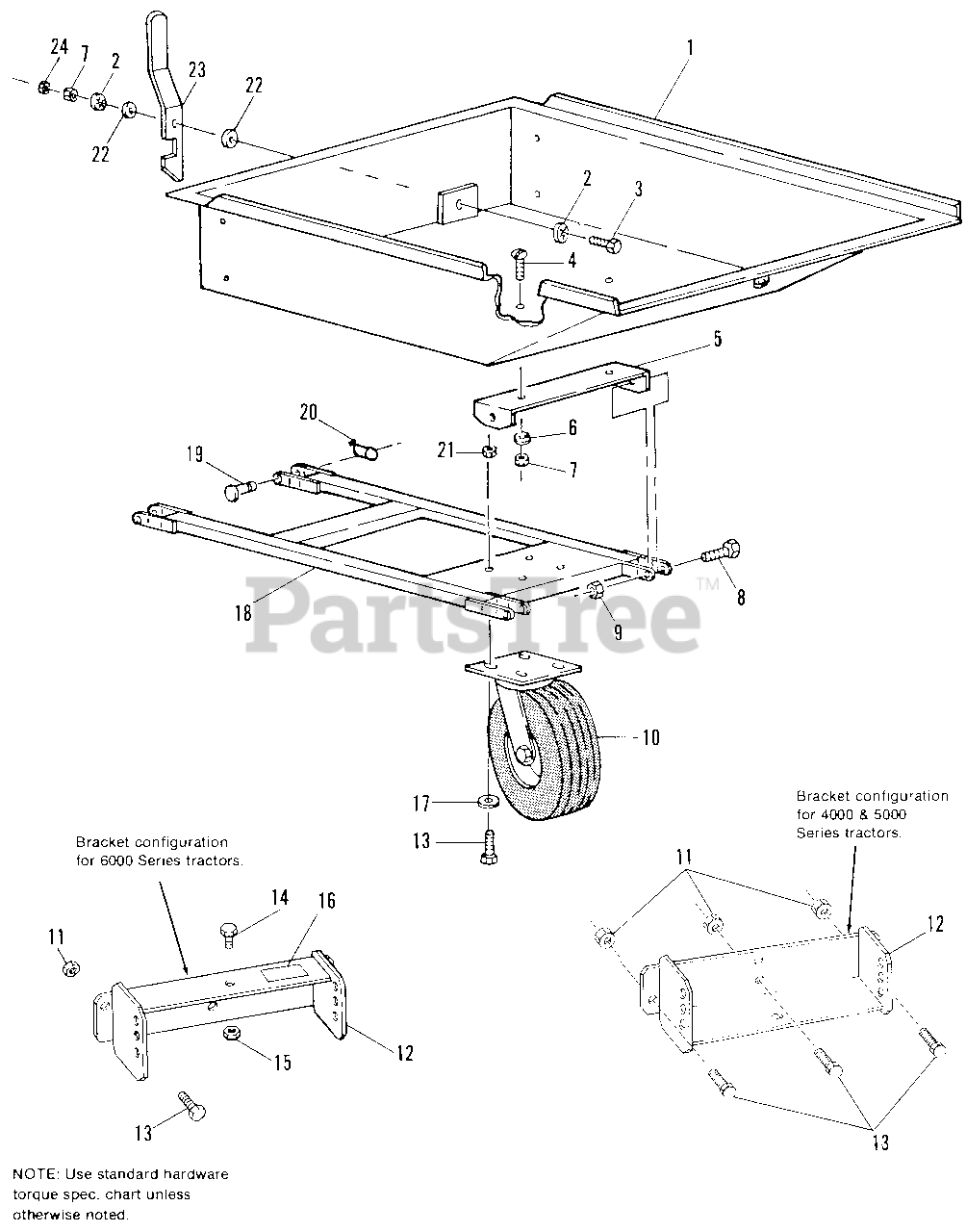

Cart Collector - Cart Group Parts Diagram

  • Title
1

Simplicity 1701925

BOX (Order 1691243 from wholegoods.)

$

$

Not available

2

Simplicity 2177649SM

WASHER, Spring, 5/16

$9.49

$

In Stock, Qty 5

0

3

Simplicity 1921977SM

CAPSCREW, Hex Hd., 5/16-18 x 1-1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 7

0

4

Simplicity 1918249SM

BOLT, Slotted Truss Hd., 5/16-18 x 3/4

$4.99

$

Usually ships in 2-12 days

0

5

Simplicity 1676891

"S" BRACKET

$

$

Not available

6

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

7

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

8

Simplicity 1921176SM

CAPSCREW, Hex Hd., 1/2-13 x 1-1/4

$4.99

$

In Stock, only 1 left!

0

9

Simplicity 1922134SM

NUT, Hex Lock, 1/2-13
(Superseded to 703894)

$3.49

$

In Stock, Qty 9

0

10

Simplicity 1676892SM

WHEEL, Sewivel

$307.99

$

Usually ships in 2-12 days

0

11

Simplicity 1930645SM

NUT, Hex Lock 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

12

Simplicity 1676898SM

BRACKET, Hitch

$

$

Not available

13

Simplicity 1921210SM

CAPSCREW, Hex, 3/8-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

14

Simplicity 1921965SM

CAPSCREW, Hex, 3/8-16 x 3/4 (6000 Series Tractors Only)
(Superseded to 703237)

$4.99

$

Usually ships in 2-12 days

0

15

Simplicity 1930645SM

NUT, Hex Full Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

16

Simplicity 1700346

DECAL, Warning (6000 Series Only)

$

$

Not available

17

Simplicity 1924940SM

FLATWASHER, 3/8 S.A.E.
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

$

$

Not available

19

Simplicity 2102004SM

PIN, Clevis, 1/2 x 1-1/4

$9.49

$

In Stock, only 3 left!

0

20

Simplicity 2176012SM

COTTER, Hairpin
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

21

Simplicity 1930645SM

NUT, Hex Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

22

Simplicity 1919326SM

FLATWASHER, 5/16

$4.49

$

In Stock, Qty 8

0

23

Simplicity 1700765SM

HANDLE, Latch

$53.99

$

Usually ships in 2-12 days

0

24

Simplicity 1920161SM

NUT, Hex, Jam, 5/16-18

$4.49

$

In Stock, only 2 left!

0
