1691522 - Simplicity 42" Snow Thrower Attachment Body & Rotor Group Parts Diagram

42" Snow Thrower Attachment

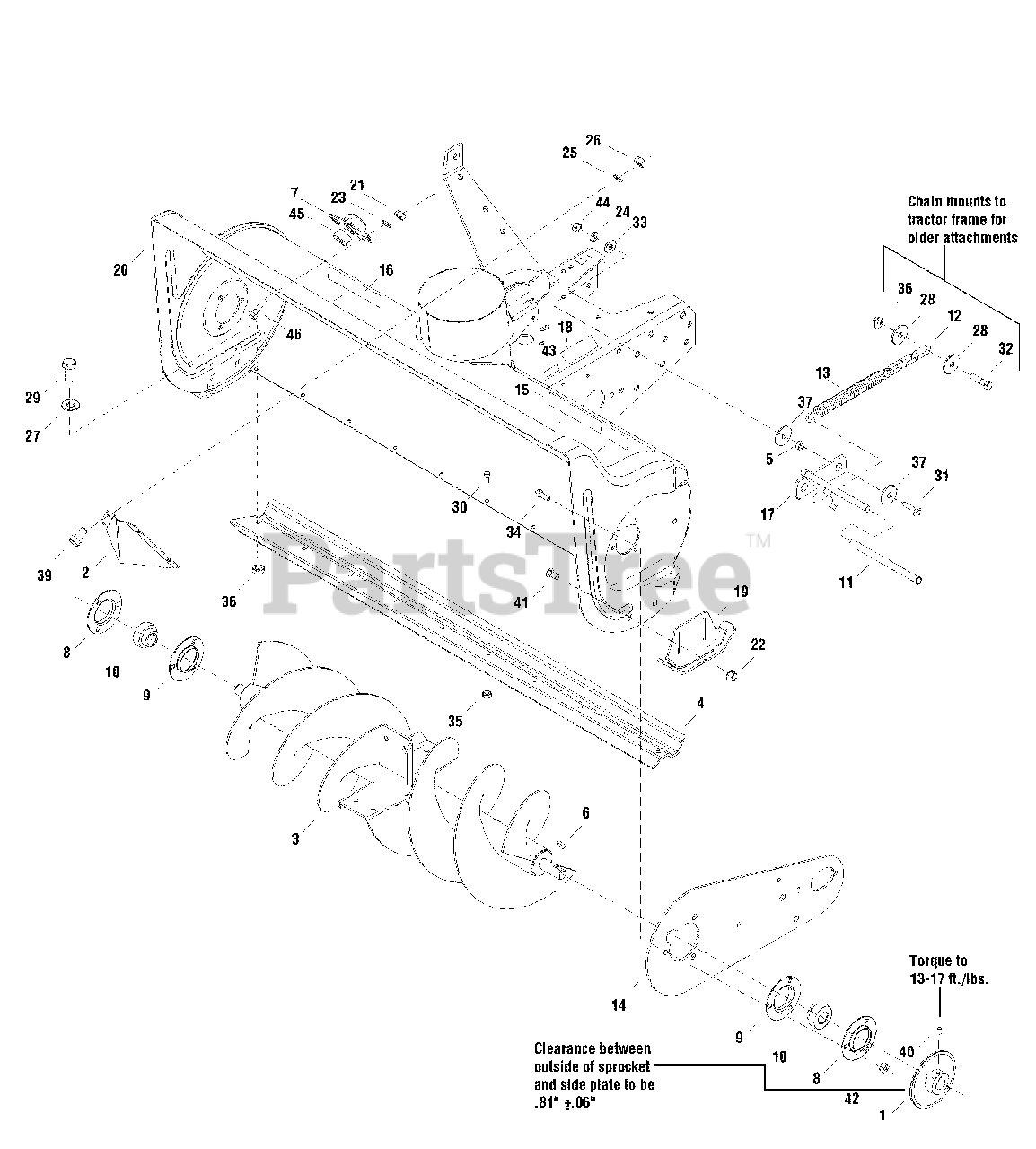

Body & Rotor Group Parts Diagram

  • Title

1

Simplicity 2106653SM

SPROCKET, Rotor, 29 Tooth

$98.99

$

Usually ships in 2-12 days

0

2

Simplicity 2106774ASM

DEFLECTOR

$29.99

$

Usually ships in 2-12 days

0

3

Simplicity 1721840ASM

ROTOR ASSEMBLY

$817.99

$

In Stock, only 1 left!

0

4

Simplicity 2106746ASM

SCRAPER, Body

$158.99

$

In Stock, only 3 left!

0

5

Simplicity 1611705SM

SPACER

$4.49

$

In Stock, Qty 17

0

6

Simplicity 2151040SM

KEY

$9.49

$

In Stock, only 2 left!

0

7

Simplicity 2171388SM

BEARING

$11.99

$

In Stock, only 1 left!

0

8

Simplicity 2172278ASM

FLANGE, Bearing

$11.99

$

In Stock, only 3 left!

0

9

Simplicity 2172278ASM

FLANGE, Bearing

$11.99

$

In Stock, only 3 left!

0

10

Simplicity 1733105SM

BEARING, Ball

$57.99

$

In Stock, Qty 18

0

11

Simplicity 2176934SM

GRIP

$3.99

$

Usually ships in 2-12 days

0

12

Simplicity 1707514ASM

LINK CHAIN

$14.99

$

In Stock, only 1 left!

0

13

Simplicity 1675232SM

SPRING

$20.99

$

Usually ships in 2-12 days

0

14

Simplicity 1676632A

PLATE, Side
(Superseded to 1676632ASM)

$44.99

$

Usually ships in 2-12 days

0

15

Simplicity 1716532SM

DECAL, Safety

$12.99

$

Usually ships in 2-12 days

0

16

Simplicity 1716531SM

DECAL, Safety

$19.99

$

In Stock, only 1 left!

0

17

Simplicity 1701917ASM

LEVER ASSEMBLY

$31.99

$

Usually ships in 2-12 days

0

18

Simplicity 1716536SM

DECAL, Caution

$18.99

$

Usually ships in 2-12 days

0

19

Simplicity 1713424ASM

SKID, w/ Wear Strip

$54.99

$

Usually ships in 2-12 days

0

20

Simplicity 1713542A

BODY & FRAME ASSEMBLY

$

$

Not available

21

Simplicity 1916622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

22

Simplicity 1960687SM

NUT, Hex, ESNA 3/8-16
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

23

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

24

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

25

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

26

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

27

Simplicity 1919326SM

WASHER, 11/32

$4.49

$

In Stock, Qty 5

0

28

Simplicity 1919381SM

WASHER, 5/16
(Superseded to 703298)

$4.49

$

Usually ships in 2-12 days

0

29

Simplicity 1921332SM

CAPSCREW, Hex Head, 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 8

0

30

Simplicity 1921959SM

CAPSCREW, Hex Head, 1/4-20 x 5/8
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 10

0

31

Simplicity 1921969SM

CAPSCREW, Hex Head, 3/8-16 x 1-1/2
(Superseded to 703406)

$4.99

$

In Stock, only 1 left!

0

32

Simplicity 1921977SM

CAPSCREW, HexHead, 5/6-18 x 1-1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 7

0

33

Simplicity 1922755SM

WASHER, 3/8
(Superseded to 704128)

$4.99

$

In Stock, Qty 9

0

34

Simplicity 1923325SM

CAPSCREW, Hex Head, 5/16-18 x 7/8
(Superseded to 703408)

$4.99

$

In Stock, Qty 13

0

35

Simplicity 1923358SM

LOCKNUT, Hex, 1 /4-20
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

36

Simplicity 1923362SM

LOCKNUT, Hex, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 17

0

37

Simplicity 1924356SM

WASHER, 3/8
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

39

Simplicity 1925205SM

CAPSCREW, Hex Head, 5/16-18 x 5/8
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

40

Simplicity 1928721SM

SETSCREW, 5/16-18 x 5/16, G8

$4.99

$

In Stock, only 2 left!

0

41

Simplicity 1960711SM

BOLT, Carriage, 3/8 x 3/4 Std Neck
(Superseded to 703448)

$4.49

$

In Stock, Qty 20+

0

42

Simplicity 1935048SM

NUT, Hex, Flange Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

43

Decal, I. D.

$

$

Not available

44

Simplicity 1916950SM

NUT, Hex, Full 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

45

Simplicity 1705249SM

Spacer

$

$

Not available

46

Simplicity 1921960SM

CAPSCREW, HexHead, 1/4-20 x 1

$3.49

$

In Stock, only 1 left!

0
