1691518 - Simplicity 22" Snow Thrower, 7hp Frame Parts Diagram

22" Snow Thrower, 7hp

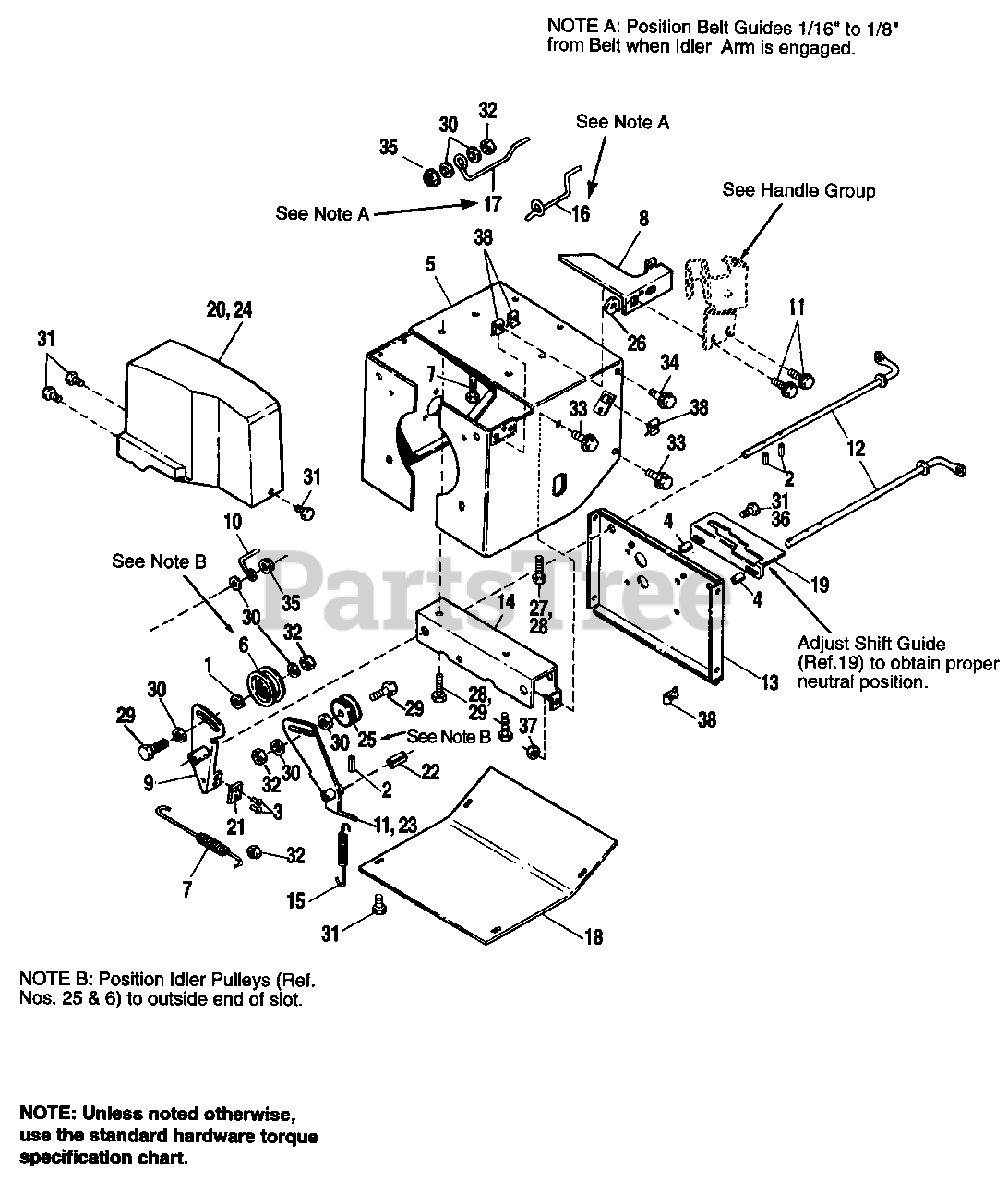

Frame Parts Diagram

  • Title

1

Simplicity 2174870SM

SPACER

$45.99

$

Usually ships in 2-12 days

0

2

Simplicity 2816169SM

PIN, Roll

$4.49

$

Usually ships in 2-12 days

0

3

Simplicity 2825160SM

RIVET

$4.49

$

In Stock, Qty 8

0

4

Simplicity 1608310SM

SPACER (7 HP only)

$38.99

$

Usually ships in 2-12 days

0

5

Simplicity 1611743

FRAME

$

$

Not available

6

Simplicity 1668477SM

PULLEY, Idler, Auger

$23.99

$

In Stock, Qty 20+

0

7

Simplicity 1673911SM

SPRING, Brake Return

$21.99

$

In Stock, only 1 left!

0

8

Simplicity 1674297

COVER, Belt

$

$

Not available

9

Simplicity 1674316

IDLER ARM & BRAKE ASSY. (Incl. Ref. Nos. 21 & 3)

$

$

Not available

10

Simplicity 1674315SM

GUIDE, Belt

$4.99

$

Usually ships in 2-12 days

0

11

Simplicity 1674318SM

IDLER ARM ASSY., Traction (5 HP only)

$23.99

$

Usually ships in 2-12 days

0

12

Simplicity 1674320SM

ROD, Idler

$

$

Not available

13

Simplicity 1675112

MOUNTING PLATE, Transmission

$

$

Not available

14

Simplicity 1675114

SUPPORT, Transmission

$

$

Not available

15

Simplicity 1676210SM

SPRING

$7.99

$

Usually ships in 2-12 days

0

16

Simplicity 1676219

BELT GUIDE, LH

$

$

Not available

17

Simplicity 1676220

BELT GUIDE, RH

$

$

Not available

18

Simplicity 1676442SM

PAN, Bottom

$

$

Not available

19

Simplicity 1676501SM

GUIDE, Shift

$4.49

$

Usually ships in 2-12 days

0

20

Simplicity 1678699SM

GUARD, Belt (5 HP only)

$

$

Not available

21

Simplicity 1676543

PAD, Brake

$

$

Not available

22

Simplicity 1677237SM

SPACER

$3.99

$

Usually ships in 2-12 days

0

23

Simplicity 1678694SM

IDLER ARM ASSY., Traction (7 HP only)

$37.99

$

Usually ships in 2-12 days

0

24

Simplicity 1678699SM

GUARD, Belt (7 HP only)

$

$

Not available

25

Simplicity 1685370SM

PULLEY, Idler (Incl. Ref. No. 1)

$15.99

$

Usually ships in 2-12 days

0

26

Simplicity 1919326SM

WASHER, 11/32

$4.49

$

In Stock, Qty 6

0

27

Simplicity 1921221SM

SCREW, Hex, 5/16-18 x 1-1/2 (5 HP only)
(Superseded to 703906)

$4.99

$

In Stock, only 4 left!

0

28

Simplicity 1921332SM

CAPSCREW, Hex Hd., 5/16-18 x 3/4 (7 HP only)
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

29

Simplicity 1921969SM

CAPSCREW, Hex, 3/8-16 x 1-1/2
(Superseded to 703406)

$4.99

$

In Stock, only 1 left!

0

30

Simplicity 1924940SM

WASHER
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

31

Simplicity 1925003SM

SCREW, Hex, Taptite, 1/4-20 x 1/2 (Qty. 7 on 7 HP)
(Superseded to 704130)

$3.99

$

In Stock, Qty 5

0

32

Simplicity 1928731SM

NUT, Hex, Jam 3/8-16

$4.99

$

In Stock, only 1 left!

0

33

Simplicity 1930591SM

SCREW, Hex, Flange Lock, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 10

0

34

Simplicity 1930595SM

SCREW, Hex, Flange Lock, 5/16-18 x 1-1/4

$3.99

$

In Stock, Qty 5

0

35

Simplicity 1930645SM

NUT, Hex, Flange Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

36

Simplicity 1930810SM

SCREW, Hex Hd., Taptite 1/4-20 x 1-1/2 (7 HP only)

$3.49

$

In Stock, only 1 left!

0

37

Simplicity 1931277SM

NUT, Hex, Flange Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

38

Simplicity 1935255SM

PALNUT, 5/16-18

$3.49

$

In Stock, only 2 left!

0
