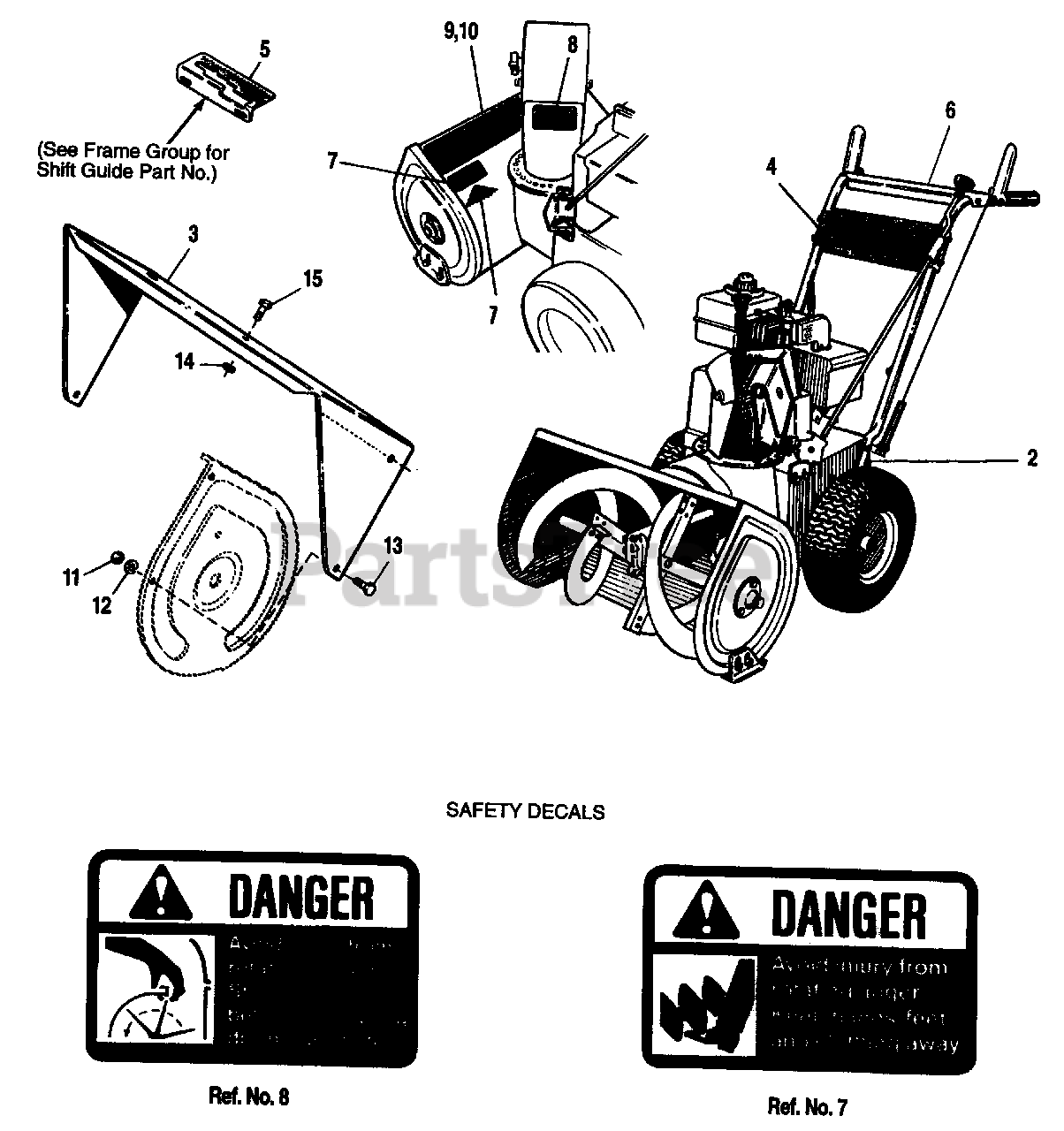

1691518 - Simplicity 22" Snow Thrower, 7hp Decal & Wrapper Extension Group Parts Diagram

22" Snow Thrower, 7hp

Decal & Wrapper Extension Group Parts Diagram

  • Title

1

DECAL, OPEI

$

$

Not available

2

ID. PLATE, Simplicity

$

$

Not available

3

Simplicity 1676631SM

WRAPPER EXT
(Superseded to 1676631CSM)

Note: This is standard equipment on Model 755. It is optional for Model 555.

$66.99

$

Usually ships in 2-12 days

0

4

Simplicity 1722551SM

DECAL, Simplicity

$11.99

$

In Stock, Qty 12

0

5

Simplicity 1676667

DECAL, Shift pattern

$

$

Not available

6

Simplicity 1676937

DECAL, Dash

$

$

Not available

7

Simplicity 1716532SM

DECAL, Danger, Auger

$12.99

$

Usually ships in 2-12 days

0

8

Simplicity 1722674SM

DECAL, Danger, Blower

$14.99

$

Usually ships in 2-12 days

0

9

Simplicity 1714107SM

DECAL, Simplicity 755

$13.99

$

Usually ships in 2-12 days

0

10

Simplicity 1714108SM

DECAL, Simplicity 555

$16.99

$

Usually ships in 2-12 days

0

11

Simplicity 1916622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

12

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

13

Simplicity 1921958SM

CAPSCREW, 1/4-20 x 1/2

$3.99

$

Usually ships in 2-12 days

0

14

Simplicity 1930641SM

NUT, Hex, Flange, 1/4-20
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0

15

Simplicity 1931315SM

CAPSCREW, 5/16-18 x 5/8
(Superseded to 703978)

$3.99

$

In Stock, Qty 20+

0

15

Simplicity 1704482

DECAL, Touch-up Paint

Note: Not Shown

$

$

Not available
