1691426 - Simplicity 48" Mower Deck 42" & 48" Arbor Cover Parts Diagram

48" Mower Deck

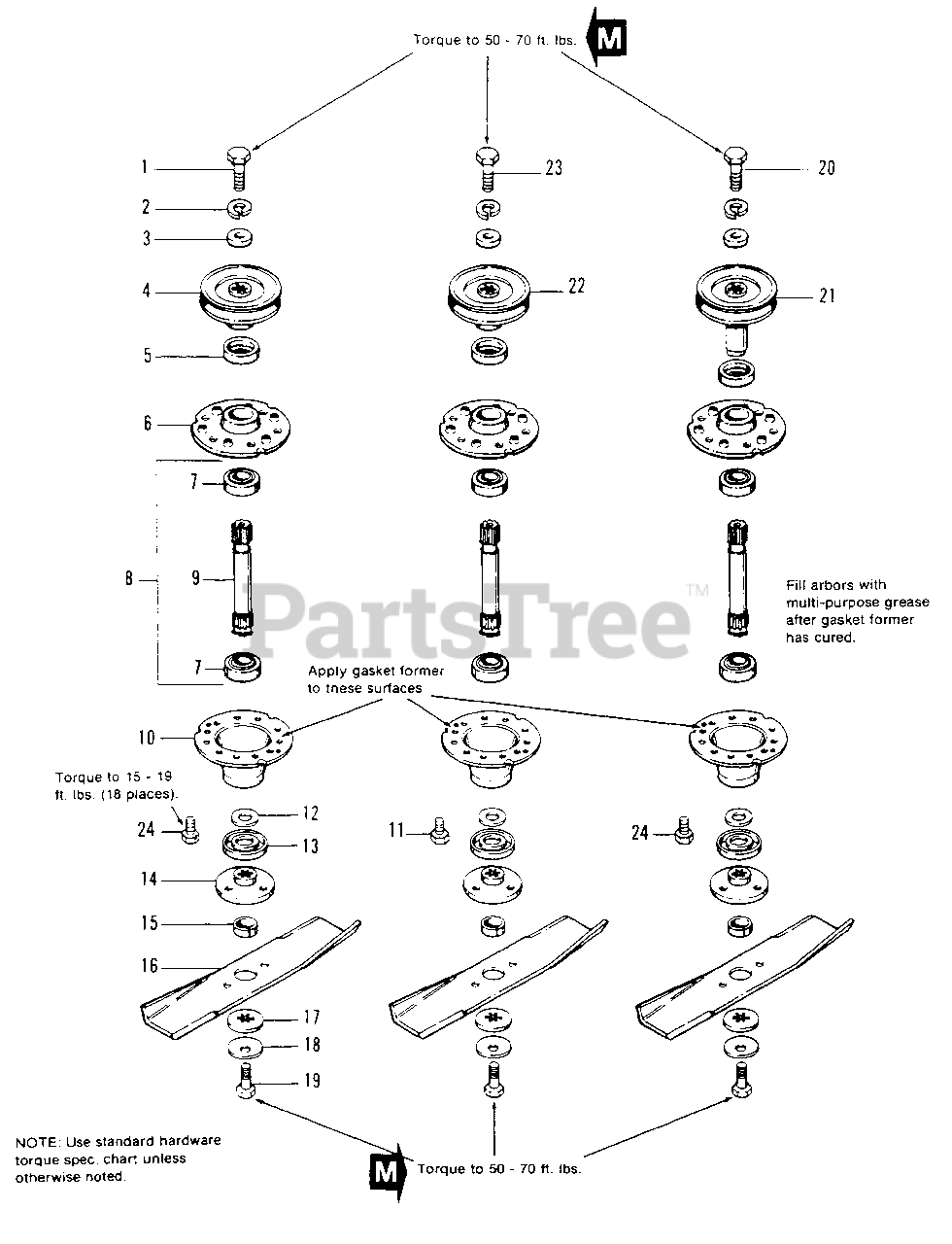

42" & 48" Arbor Cover Parts Diagram

  • Title
1

Simplicity 1923451SM

CAPSCREW, Hex 7/16-14 x 1/2

$

$

Not available

2

Simplicity 1918199SM

LOCKWASHER, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

3

Simplicity 1933263SM

WASHER, Plain, 29/64 x 1-1/4 x 1/4
(Superseded to 703990)

$6.99

$

In Stock, Qty 20+

0

4

Simplicity 1702153SM

PULLEY ASSY.

$

$

Not available

5

Simplicity 1657969SM

SHIELD, Bearing Upper, Arbor

$7.49

$

In Stock, Qty 20+

0

6

Simplicity 1655729ASM

HOUSING TOP

$14.99

$

Usually ships in 2-12 days

0

$11.99

$

In Stock, Qty 20+

0

8

Simplicity 1685251SM

SHAFT & BEARING ASSY. (Incl. Ref. Nos. 7, 9 & 15)

$99.99

$

In Stock, Qty 13

0

9

Simplicity 1685245SM

SHAFT, Arbor (Incl. Ref. No. 15)

$74.99

$

In Stock, Qty 6

0

10

Simplicity 1703273ASM

HOUSING, Bottom

$38.99

$

In Stock, Qty 20+

0

11

Simplicity 1664847SM

SCREW, Hex, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

12

Simplicity 1700230SM

WASHER, Shim

$4.99

$

In Stock, Qty 20+

0

13

Simplicity 1700229SM

SHIELD, Grass

$10.99

$

In Stock, Qty 20+

0

14

Simplicity 1655777SM

ADAPTOR, Blade

$25.99

$

In Stock, Qty 20+

0

$12.99

$

In Stock, only 3 left!

0

16

Simplicity 1656147ASM

BLADE, 42" Mower

$21.99

$

In Stock, only 3 left!

0

16

Simplicity 1656146ASM

BLADE, 48" Mower

$27.99

$

In Stock, only 3 left!

0

17

Simplicity 1656927SM

WASHER, Spline

$8.99

$

In Stock, Qty 17

0

18

Simplicity 1656916SM

WASHER, Spring

$7.49

$

In Stock, Qty 20+

0

19

Simplicity 2823471SM

CAPSCREW, Hex 7/16-14 x 1
(Superseded to 703579)

$4.49

$

In Stock, Qty 20+

0

20

Simplicity 1930585SM

CAPSCREW, Hex, 7/16-14 x 3-1/2

$7.49

$

In Stock, only 2 left!

0

21

Simplicity 1665347ASM

PULLEY ASSY.

$104.99

$

In Stock, only 1 left!

0

22

Simplicity 1665476SM

PULLEY ASSY.
(Superseded to 1665476ASM)

$90.99

$

Usually ships in 2-12 days

0

23

Simplicity 1936723SM

CAPSCREW, Hex, 7/16-14 x 1-3/4

$

$

Not available

24

Simplicity 1960373SM

SCREW, Hex Taptite, 5/16-18 x 1
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0
