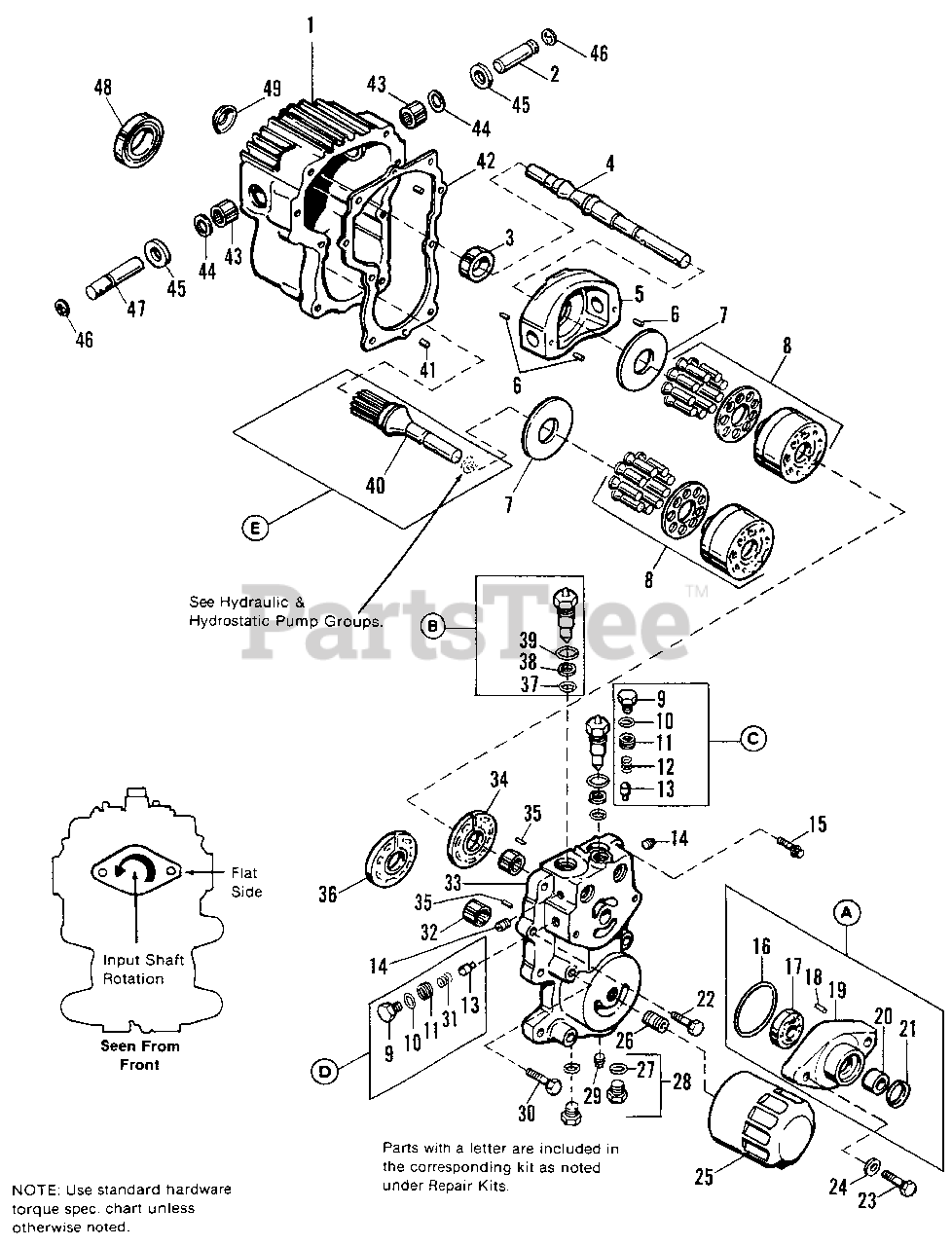

1691386 - Simplicity SunStar 48" Garden Tractor, 16hp Hydrostatic Pump Parts Diagram

SunStar 48" Garden Tractor, 16hp

Hydrostatic Pump Parts Diagram

  • Title

1

Simplicity 1678975SM

HOUSING ASSY. (Incl. Ref. Nos. 49, 43 & 44)

$1424.99

$

Usually ships in 2-12 days

0

2

Simplicity 1652194SM

SHAFT, Trunnion

$86.99

$

Usually ships in 2-12 days

0

3

Simplicity 1652231SM

BEARING, Ball

$60.99

$

Usually ships in 2-12 days

0

4

Simplicity 1678987SM

SHAFT, Pump

$968.99

$

Usually ships in 2-12 days

0

5

Simplicity 1673533SM

PLATE, Swash

$199.99

$

Usually ships in 2-12 days

0

6

Simplicity 1652226SM

PIN, Spring

$5.99

$

Usually ships in 2-12 days

0

7

Simplicity 1673532SM

PLATE, Thrust

$24.99

$

Usually ships in 2-12 days

0

8

Simplicity 1673535SM

BLOCK, Cylinder

$1017.99

$

Usually ships in 2-12 days

0

9

Simplicity 1652217SM

PLUG, Hex Hd.

$21.99

$

Usually ships in 2-12 days

0

10

Simplicity 2821884SM

"O" RING

$3.99

$

In Stock, only 3 left!

0

11

Simplicity 1652216SM

KIT, Shim Pack

$54.99

$

Usually ships in 2-12 days

0

12

Simplicity 1700813SM

SPRING, Rel. Valve

Note: Used on Sundstrand Model 90-1256 Serial No. 06-86-33 and greater or Sundstrand Model 90-1267.

$14.99

$

Usually ships in 2-12 days

0

12

Simplicity 1678986SM

SPRING, Rel. Valve

Note: Used on Sundstrand Model 90-1256 Serial No. 06-86-32 or less.

$

$

Not available

13

Simplicity 1652214SM

CONE, Rel. Valve

$

$

Not available

14

Simplicity 2860625SM

PLUG, Pipe

$1.99

$

Usually ships in 2-12 days

0

15

Simplicity 1652212SM

SCREW, 12 Pt.

$6.99

$

Usually ships in 2-12 days

0

16

Simplicity 1652207SM

"O" RING

$8.99

$

In Stock, only 1 left!

0

17

Simplicity 1678985SM

GEROTER

$327.99

$

Usually ships in 2-12 days

0

18

Simplicity 1678984SM

PIN, Straight

$23.99

$

In Stock, only 1 left!

0

19

Simplicity 1678983SM

HOUSING, Charge Pump

$293.99

$

Usually ships in 2-12 days

0

20

Simplicity 1678979SM

BEARING, Roller

$

$

Not available

21

Simplicity 1678981SM

SEAL, Lip

$

$

Not available

22

Simplicity 1920415SM

CAPSCREW, Hex Hd., 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

23

Simplicity 2827531

CAPSCREW, Hex Hd., 7/16-14 x 2

$

$

Not available

24

Simplicity 1918199SM

WASHER, Flat
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

25

Simplicity 1671234SM

FILTER ASSY. 2.28" Long (1691250 & 1691357)

$24.99

$

Usually ships in 2-12 days

0

25

Simplicity 1650954SM

FILTER ASSY. 3.75" Long (All models except 1691250 & 1691357)

$

$

Not available

26

Simplicity 1671699SM

UNION, Filter

$18.99

$

Usually ships in 2-12 days

0

27

Simplicity 1652196SM

"O" RING

$2.49

$

Usually ships in 2-12 days

0

28

Simplicity 1652197SM

PLUG, Hex Hd. (Incl. Ref. No. 27)

$20.99

$

Usually ships in 2-12 days

0

29

Simplicity 1671665SM

PLUG, Pipe (Incl. Ref. No. 27)

$4.49

$

Usually ships in 2-12 days

0

30

Simplicity 1923701SM

CAPSCREW, Hex Hd., 3/8-16 x 2
(Superseded to 703589)

$4.49

$

Usually ships in 2-12 days

0

31

Simplicity 1652253SM

SPRING, Rel. Valve

$3.99

$

Usually ships in 2-12 days

0

32

Simplicity 1678979SM

BEARING, Roller

$

$

Not available

33

Simplicity 1678980SM

SECTION, Center

$

$

Not available

34

Simplicity 1652223SM

PLATE, Valve (Pump)

$

$

Not available

35

Simplicity 1652224SM

PIN, Headless, St.

$

$

Not available

36

Simplicity 1652189SM

PLATE, Valve (Motor)

$

$

Not available

37

Simplicity 1652221SM

"O" RING

$2.99

$

Usually ships in 2-12 days

0

38

Simplicity 1652220SM

RING, Back-Up

$10.99

$

Usually ships in 2-12 days

0

39

Simplicity 1652219SM

O-RING

$5.49

$

In Stock, only 1 left!

0

40

SHAFT, Motor (See Repair Kit "E")

$

$

Not available

41

Simplicity 1652185SM

PIN, Headless

$4.99

$

Usually ships in 2-12 days

0

42

Simplicity 1652184SM

GASKET

$

$

Not available

43

Simplicity 1652251SM

BEARING, Needle

$20.99

$

Usually ships in 2-12 days

0

44

Simplicity 1652234SM

SEAL, Lip

$

$

Not available

45

Simplicity 1652235SM

WASHER

$8.49

$

Usually ships in 2-12 days

0

46

Simplicity 1652192SM

RING, Retaining

$6.99

$

Usually ships in 2-12 days

0

47

Simplicity 1652183SM

SHAFT, Trunnion

$159.99

$

Usually ships in 2-12 days

0

48

Simplicity 1678977SM

BEARING, Ball

$159.99

$

Usually ships in 2-12 days

0

49

Simplicity 1612093SM

SEAL, Lip

$10.99

$

In Stock, Qty 20+

0

A

Simplicity 1678988SM

CHARGE PUMP KIT (Incl. Ref. Nos. 16, 17, 18, 19, 20 & 21)

Note: Repair Kits

$

$

Not available

B

Simplicity 1673537SM

CHECK VALVE ASSY. (Incl. Ref. Nos. 37, 38 & 39)

Note: Repair Kits

$245.99

$

Usually ships in 2-12 days

0

C

Simplicity 1700812SM

RELIEF VALVE KIT (Incl. Ref. Nos. 9, 10, 11, 12 & 13)

Note: Repair Kits Used on Sundstrand Model 90-1256 Serial No. 06-86-32 or less. Used on Sundstrand Model 90-1256 Serial No. 06-86-32 or less.

$139.99

$

Usually ships in 2-12 days

0

C

Simplicity 1678990SM

RELIEF VALVE KIT (Incl. Ref. Nos. 9, 10, 11, 12 & 13)

Note: Repair Kits Used on Sundstrand Model 90-1256 Serial No. 06-86-32 or less.

$

$

Not available

D

Simplicity 1673538SM

RELIEF VALVE KIT (Incl. Ref. Nos. 9, 10, 11, 13 & 31)

Note: Repair Kits

$

$

Not available

E

Simplicity 1703993SM

SHAFT & SNAP RING KIT

Note: Repair Kits

$490.99

$

Usually ships in 2-12 days

0
