1691380 - Simplicity SunStar Garden Tractor, 18hp Hydraulic & Hydrostatic Pump - For Models 1691017 & 1691380 Parts Diagram

SunStar Garden Tractor, 18hp

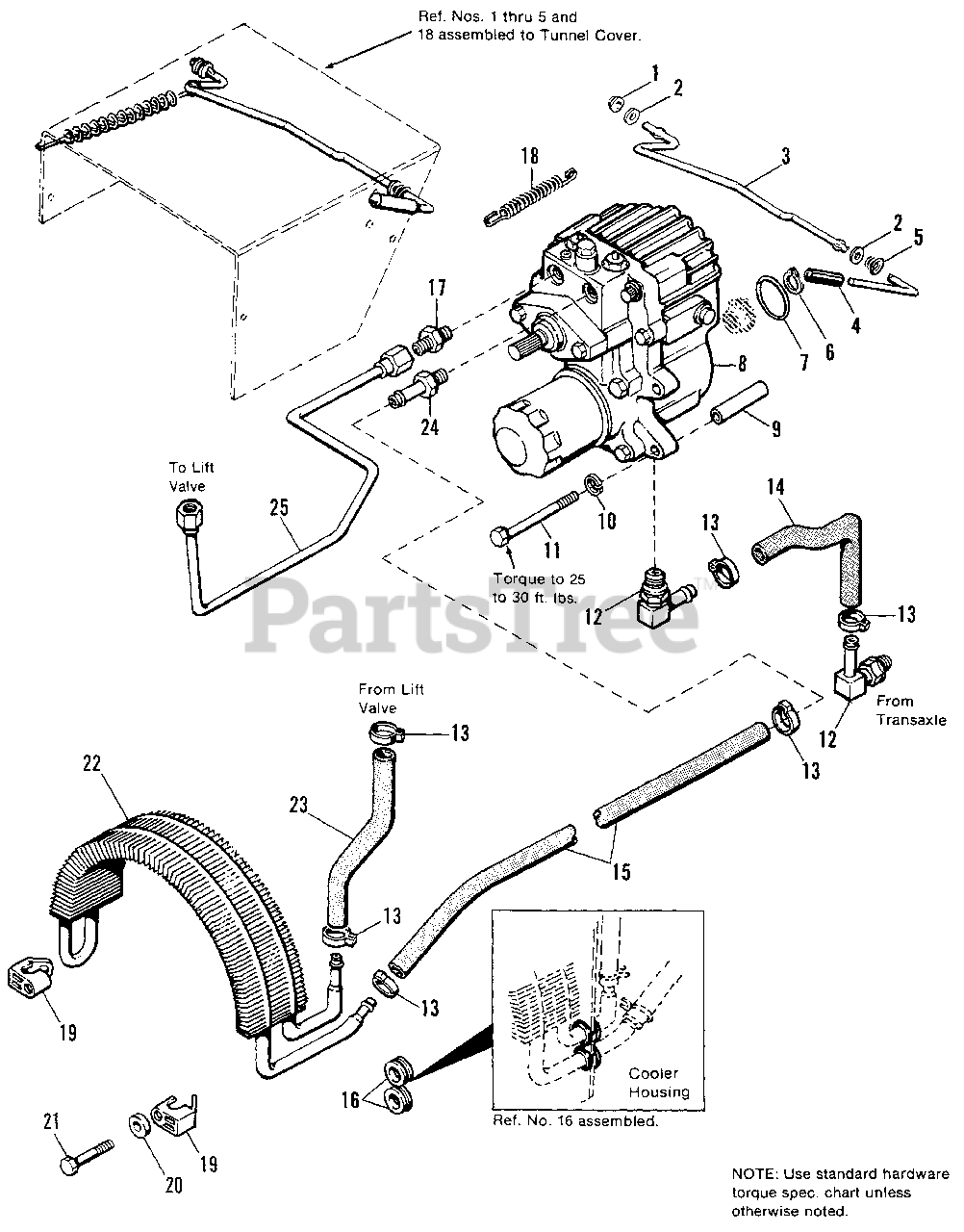

Hydraulic & Hydrostatic Pump - For Models 1691017 & 1691380 Parts Diagram

  • Title

1

Simplicity 1960126SM

PUSH NUT, 1/4
(Superseded to 704066)

$4.99

$

In Stock, Qty 14

0

2

Simplicity 1921319SM

WASHER, 17/64 x 5/8 x 3/64
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

3

Simplicity 1675567

ROD, Hydrostatic Release

$

$

Not available

4

Simplicity 1704575SM

GRIP, Release Handle

$2.99

$

Usually ships in 2-12 days

0

5

Simplicity 2153010SM

SPRING

$8.99

$

Usually ships in 2-12 days

0

6

Simplicity 2827731SM

RING, Retaining Ext. (.688 Shaft I.D., Early Models)

$3.99

$

In Stock, only 1 left!

0

6

Simplicity 2827103SM

RING, Retaining Ext. (.625 Shaft I.D., Later Models)

$4.49

$

Usually ships in 2-12 days

0

7

Simplicity 2824135SM

"O" RING

$

$

Not available

8

Simplicity 1717052SM

HYDROSTATIC PUMP (See page 44 for parts breakdown.)

$2932.99

$

Usually ships in 2-12 days

0

9

Simplicity 1960233SM

SPACER, Mounting

$13.99

$

Usually ships in 2-12 days

0

10

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

11

Simplicity 1922648SM

CAPSCREW, Hex Hd., 3/8-16 x 4
(Superseded to 703875)

$4.99

$

Usually ships in 2-12 days

0

12

Simplicity 1669954SM

FITTING HYD., 7/8-14 O.R. x 5/8 90

$27.99

$

Usually ships in 2-12 days

0

13

Simplicity 2860266SM

CLAMP, Hose

$7.49

$

Usually ships in 2-12 days

0

14

Simplicity 1677011SM

HOSE, HYD., 5/8 Preformed

$

$

Not available

15

Simplicity 1674218SM

HOSE, Hyd., Return (Cooler to Pump)

$35.99

$

Usually ships in 2-12 days

0

16

Simplicity 1676648SM

GROMMET, Rubber, 5/8" x 1-1/8" O.D.

$3.99

$

Usually ships in 2-12 days

0

17

Simplicity 2822522SM

FITTING, Hyd., 9/16-18 O.R. x 9/16-18

$

$

Not available

18

Simplicity 1706553SM

SPRING, Tension, Hydrostatic Release

$9.99

$

Usually ships in 2-12 days

0

19

Simplicity 1675960

CLAMP, Oil Cooler

$

$

Not available

20

Simplicity 1700692SM

SPACER

$45.99

$

Usually ships in 2-12 days

0

21

Simplicity 1960308

SCREW, Plastite, 1/4 x 1-1/2

$

$

Not available

22

Simplicity 1675987SM

COOLER, Oil

$

$

Not available

23

Simplicity 1674217SM

HOSE, Return, (Lift Valve to Cooler)

$

$

Not available

24

Simplicity 2171465SM

FITTING, Hyd., 9/16-18 O.R. x 1/2

$19.99

$

Usually ships in 2-12 days

0

25

Simplicity 1686617SM

TUBE ASSY., Hyd. (Pump to Lift Valve)

$

$

Not available
