1691360 - Simplicity 46" Snow Thrower Attachment 46" Snowthrower, Gear Assembly Parts Diagram

46" Snow Thrower Attachment

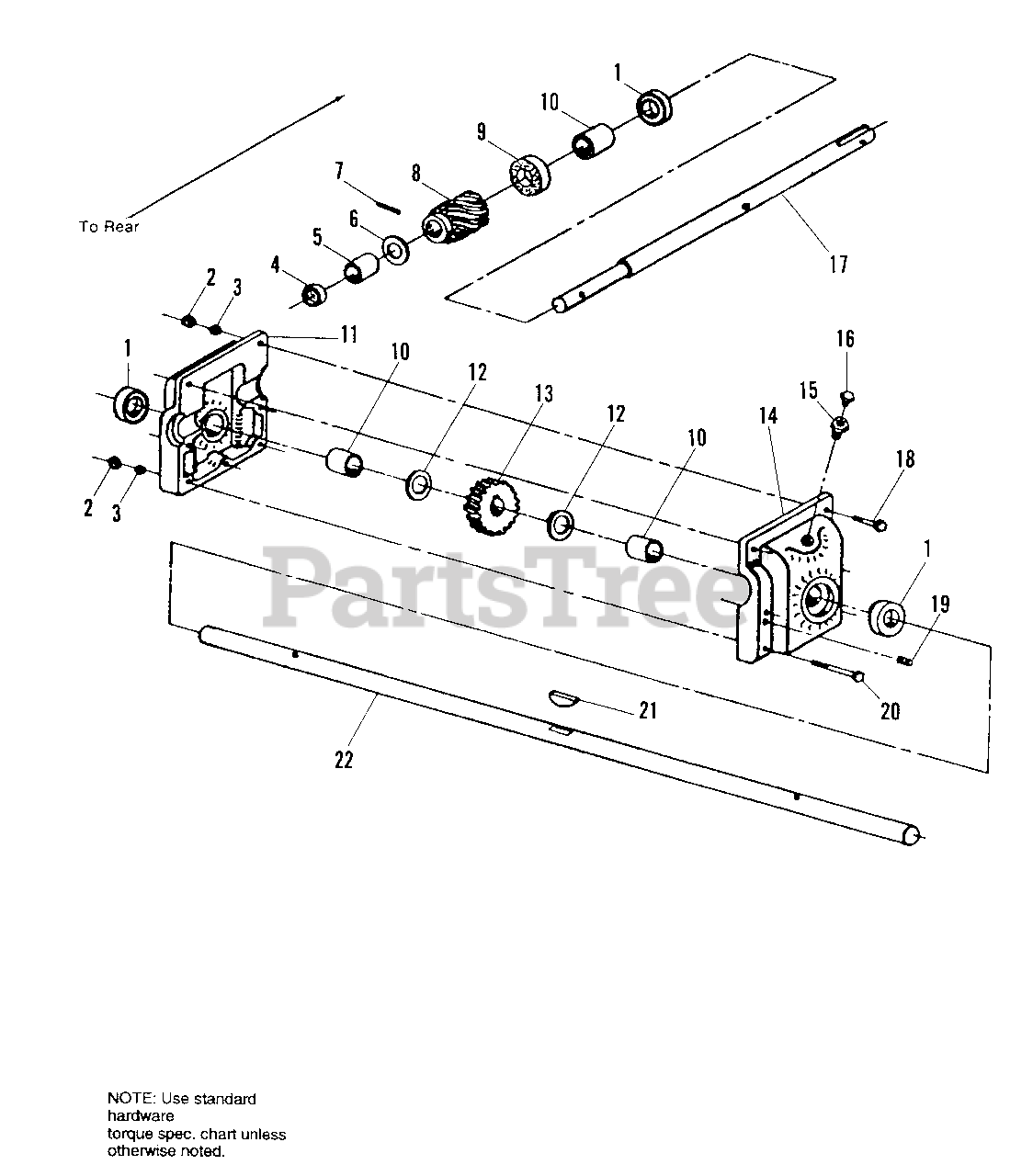

46" Snowthrower, Gear Assembly Parts Diagram

  • Title

1

Simplicity 2118118SM

SEAL, Oil (1 x 1-1/2 x 1/4)

Note: Used on Mfg. No. 1691360 before Serial No. 00309.

$10.99

$

In Stock, Qty 20+

0

1

Simplicity 2172588SM

SEAL, Oil (1 x 1-5/16 x 1/8)

Note: Used on Mfg. No. 1691360 after Serial No. 00308.

$9.99

$

In Stock, only 2 left!

0

2

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

3

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

4

Simplicity 1701060SM

CAP Input

Note: Used on Mfg. No. 1691360 before Serial No. 00309.

$24.99

$

Usually ships in 2-12 days

0

4

Simplicity 1707750SM

CAP Input

Note: Used on Mfg. No. 1691360 after Serial No. 00308.

$23.99

$

Usually ships in 2-12 days

0

5

Simplicity 1701059SM

BUSHING, 7/8 x 1-1/8 x 1

Note: Used on Mfg. No. 1691360 before Serial No. 00309.

$32.99

$

Usually ships in 2-12 days

0

5

Simplicity 1707749SM

BUSHING, 7/8 x 1-1/4 x 1

Note: Used on Mfg. No. 1691360 after Serial No. 00308.

$34.99

$

Usually ships in 2-12 days

0

6

Simplicity 1701058SM

WASHER, 1-3/8

$

$

Not available

7

Simplicity 1701057SM

PIN, 1/4 x 1-3/8

$

$

Not available

8

Simplicity 1701056

WORM GEAR, R.H. Rotation

$

$

Not available

9

Simplicity 1701055SM

BEARING

$61.99

$

Usually ships in 2-12 days

0

10

Simplicity 1701054SM

BUSHING, 1" I.D. x 1-1/4" O.D. x 1"

$47.99

$

Usually ships in 2-12 days

0

11

Simplicity 1701061

COVER, R.H.

Note: Used on Mfg. No. 1691360 before Serial No. 00309.

$

$

Not available

11

Simplicity 1707751SM

COVER, R.H.

Note: Used on Mfg. No. 1691360 after Serial No. 00308.

$

$

Not available

12

Simplicity 1701062

WASHER, 1-1/2

$

$

Not available

13

Simplicity 1701063

GEAR, Brass

$

$

Not available

14

Simplicity 1701064

COVER, L.H.

Note: Used on Mfg. No. 1691360 before Serial No. 00309.

$

$

Not available

14

Simplicity 1707752SM

COVER, L.H.

Note: Used on Mfg. No. 1691360 after Serial No. 00308.

$159.99

$

Usually ships in 2-12 days

0

15

Simplicity 1678933SM

FITTING Bushing, Reduction 7/8 x 1/8 NPT

$5.49

$

Usually ships in 2-12 days

0

16

Simplicity 1678690SM

BREATHER, 1/8 NPT

$13.99

$

Usually ships in 2-12 days

0

17

Simplicity 1701065SM

SHAFT, Input

Note: Used on Mfg. No. 1691360 before Serial No. 00309.

$296.99

$

Usually ships in 2-12 days

0

17

Simplicity 1701065SM

SHAFT, Input

Note: Used on Mfg. No. 1691360 after Serial No. 00308.

$296.99

$

Usually ships in 2-12 days

0

18

Simplicity 1921977SM

CAPSCREW, Hex Hd., 5/16-18 x 1-1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 7

0

19

Simplicity 2817673

PLUG, 1/8, NPT

$

$

Not available

20

Simplicity 1921719SM

CAPSCREW, Hex Hd., 5/16-18 x 2-1/4
(Superseded to 703868)

$4.99

$

In Stock, only 3 left!

0

21

Simplicity 2822138SM

KEY, Woodruff, 1/4 x 7/8

$9.99

$

In Stock, only 2 left!

0

22

Simplicity 1701066SM

SHAFT, Output

$199.99

$

Usually ships in 2-12 days

0

Simplicity 1707748SM

Gear Case Assy.

$

$

Not available
