1691356 - Simplicity Turbo Collector Blower Turbo Collector Blower for 36" Mowers - 4000 Series Parts Diagram

Turbo Collector Blower

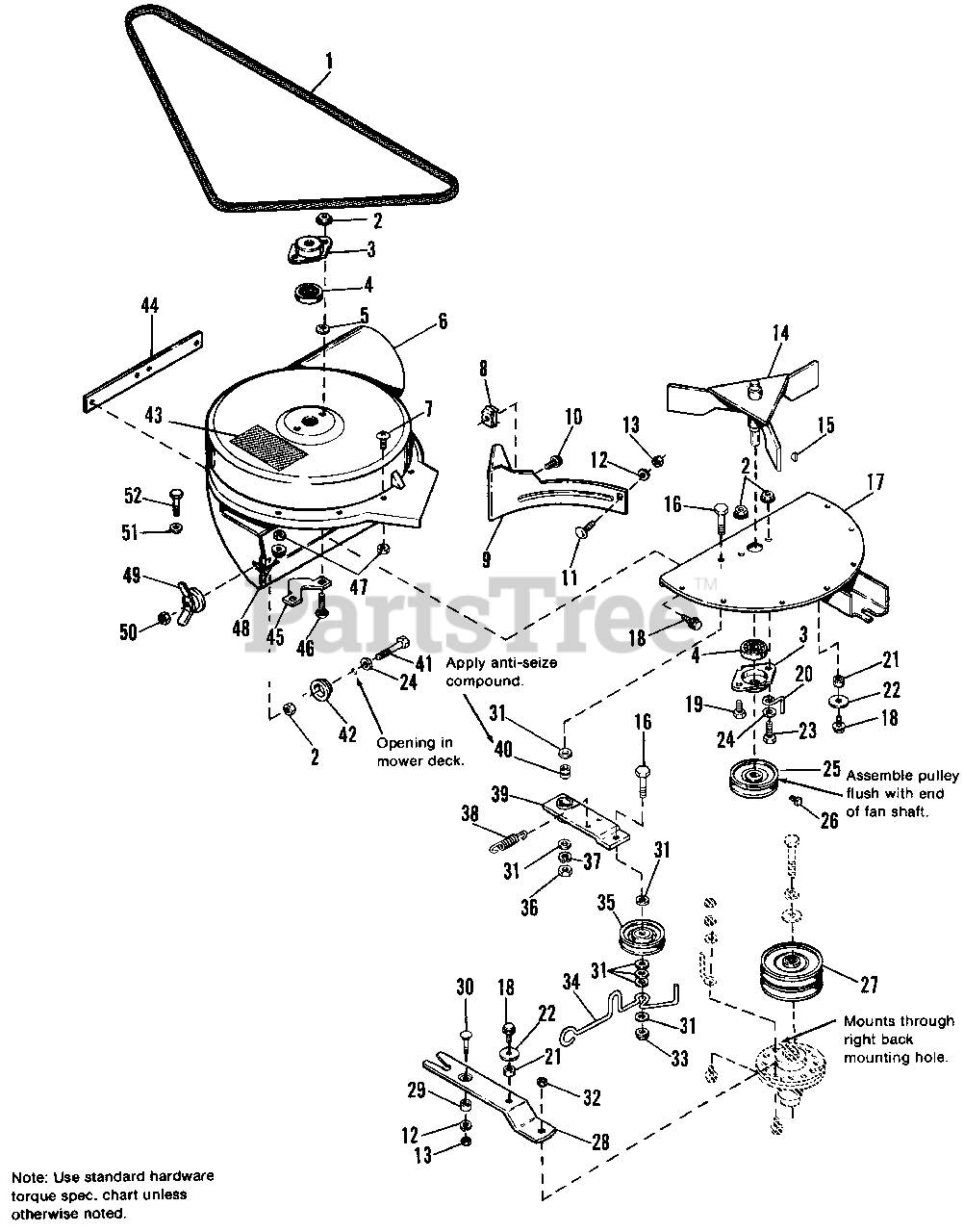

Turbo Collector Blower for 36" Mowers - 4000 Series Parts Diagram

  • Title

1

Simplicity 1679915SM

BELT
(Superseded to 1734009SM)

$47.99

$

In Stock, only 1 left!

0

2

Simplicity 1927557SM

NUT, Flange Lock, 5/16-18

$4.99

$

Usually ships in 2-12 days

0

3

Simplicity 1667341SM

BEARING, Retainer
(Superseded to 703155)

$5.99

$

In Stock, Qty 16

0

4

Simplicity 1705897SM

BEARING

$8.49

$

In Stock, Qty 20+

0

5

Simplicity 2833988

PUSHNUT, 5/16

$

$

Not available

6

Simplicity 1700965SM

HOUSING ASSY., (Indl. Ref. No. 53)

$163.99

$

Usually ships in 2-12 days

0

7

Simplicity 1921959SM

SCREW, Truss Hd., 1/4-20 x 5/8
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 18

0

8

Simplicity 2820462

NUT, Retainer, 1/4-20

$

$

Not available

9

Simplicity 1672171A

BAFFLE

$

$

Not available

10

Simplicity 1931646SM

SCREW, Whizlock 1/4-20 x 1/2

$4.49

$

In Stock, only 2 left!

0

11

Simplicity 1960252SM

CARRIAGE BOLT, 1/4-20 x 5/8

$3.99

$

In Stock, only 1 left!

0

12

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

13

Simplicity 1916622SM

NUT, Hex Full, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

14

Simplicity 1707157

FAN ASSY.
(Superseded to 1707157ASM)

$202.99

$

Usually ships in 2-12 days

0

15

Simplicity 2818312SM

KEY, Woodruff
(Superseded to 703891)

$4.99

$

In Stock, Qty 20+

0

16

Simplicity 1921971SM

CAPSCREW, 3/8-16 x 1-3/4
(Superseded to 704289)

$4.99

$

In Stock, Qty 13

0

17

Simplicity 1700696

PLATE ASSY.

$

$

Not available

18

Simplicity 1927429SM

SCREW, Taptite, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, Qty 9

0

19

Simplicity 1920787SM

CAPSCREW, Hex Hd., 5/16-18 x 1/2
(Superseded to 704317)

$4.49

$

Usually ships in 2-12 days

0

20

Simplicity 1678924

STOP, Belt

$

$

Not available

21

Simplicity 1675339SM

SPACER

$21.99

$

Usually ships in 2-12 days

0

22

Simplicity 1960151SM

WASHER, Special
(Superseded to 703136)

$3.99

$

In Stock, only 1 left!

0

23

Simplicity 1960122SM

CAPSCREW, Hex Thin Hd., 5/16-18 x 3/4

$6.99

$

Usually ships in 2-12 days

0

24

Simplicity 1919326SM

WASHER, Plaing, 11/32

$4.49

$

In Stock, Qty 9

0

25

Simplicity 1706634SM

PULLEY, Driven

$45.99

$

In Stock, only 3 left!

0

26

Simplicity 1960619SM

SETSCREW, 5/16-18 x 1/2

$3.49

$

In Stock, Qty 10

0

27

Simplicity 1700705ASM

PULLEY ASSY.

$104.99

$

In Stock, only 1 left!

0

28

Simplicity 1700694SM

STRAP

$26.99

$

Usually ships in 2-12 days

0

29

Simplicity 1700695SM

SPACER

$16.99

$

Usually ships in 2-12 days

0

30

Simplicity 1931320SM

CARRIAGE BOLT, 1/4-20 x 1-1/4
(Superseded to 703178)

$3.99

$

In Stock, only 1 left!

0

31

Simplicity 1924940SM

WASHER, Plain 13/32
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

32

Simplicity 1928698SM

NUT, Hex Jam Lock, 5/16-18

$4.49

$

Usually ships in 2-12 days

0

33

Simplicity 1930645SM

NUT, Hex Flange Lock, 3/8
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

34

Simplicity 1701095SM

LEVER, Belt, Retainer

$18.99

$

Usually ships in 2-12 days

0

35

Simplicity 2174561SM

PULLEY, Idler

$53.99

$

Usually ships in 2-12 days

0

36

Simplicity 1916950SM

NUT, Hex Full, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

37

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 18

0

38

Simplicity 1679554SM

SPRING, Tension

$7.49

$

Usually ships in 2-12 days

0

39

Simplicity 1700861SM

IDLER ARM ASSY.

$43.99

$

Usually ships in 2-12 days

0

40

Simplicity 1666114SM

SPACER
(Superseded to 703140)

$11.99

$

Usually ships in 2-12 days

0

41

Simplicity 1960318SM

CAPSCREW, Hex, 5/16-18 x 2-1/2

$4.99

$

Usually ships in 2-12 days

0

42

Simplicity 1679164ASM

CUP

$56.99

$

Usually ships in 2-12 days

0

43

Simplicity 1700259SM

DECAL, Danger

$27.99

$

Usually ships in 2-12 days

0

44

Simplicity 1706630

STRIP, Reinforcement
(Superseded to 1706630ASM)

$9.49

$

In Stock, only 1 left!

0

45

Simplicity 1678811

PLATE, Flange

$

$

Not available

46

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

47

Simplicity 1930641SM

NUT, Hex, Lock, Nylon, 1/4-20
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0

48

Simplicity 1930642SM

NUT, Hex, Flange Lock, 1/4-20
(Superseded to 703916)

$4.99

$

In Stock, only 2 left!

0

49

Simplicity 1679163SM

NUT ASSY.

$69.99

$

In Stock, only 1 left!

0

50

Simplicity 1923362SM

NUT, Hex, Full, Lock, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 20+

0

51

Simplicity 1921319SM

WASHER, Plain, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

52

Simplicity 1921960SM

CAPSCREW, Hex, 1/4-20 x 1

$3.49

$

In Stock, only 1 left!

0
