1691333 - Simplicity 42" Mower Deck 42" Mower Support Group Parts Diagram

42" Mower Deck

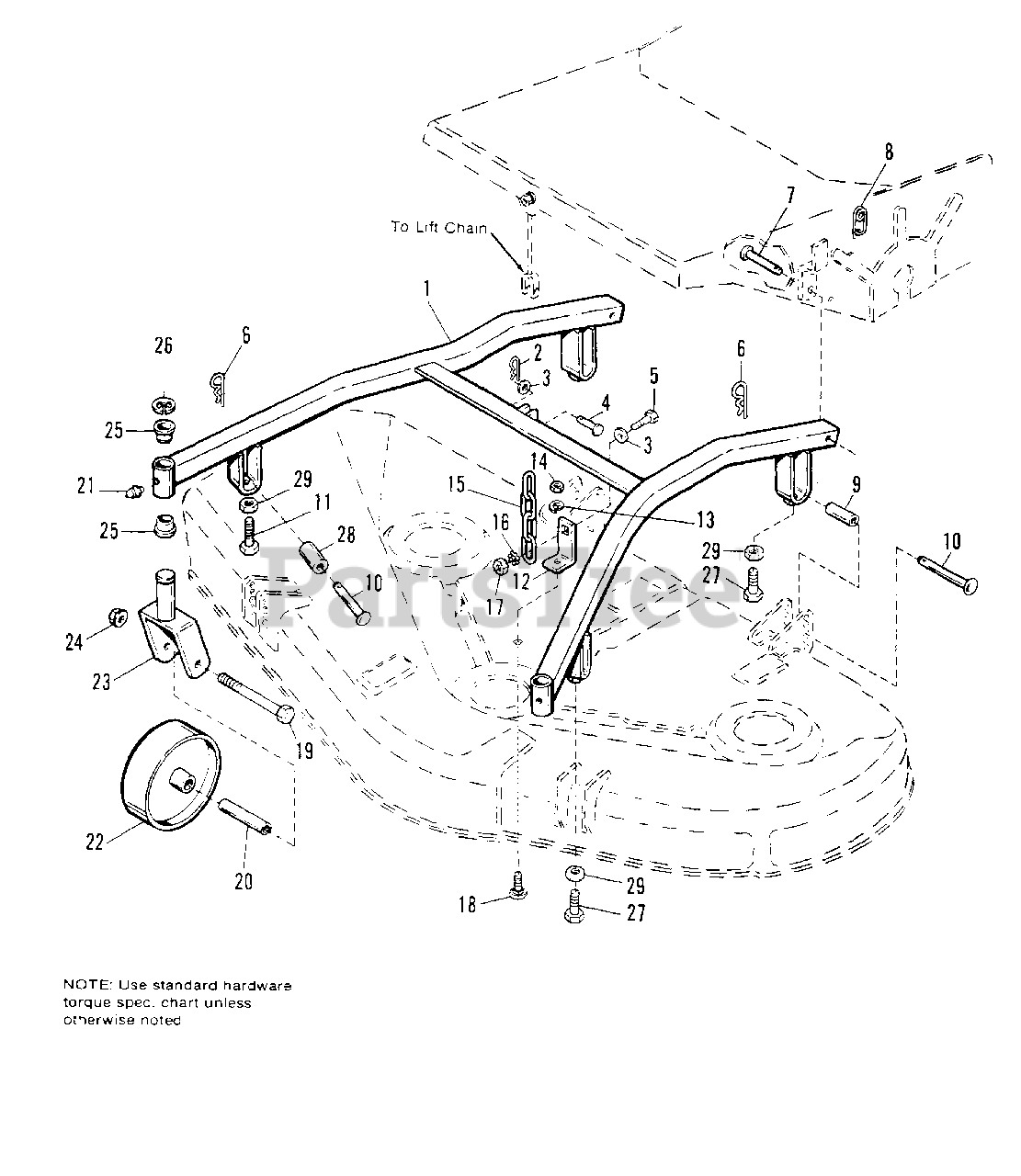

42" Mower Support Group Parts Diagram

  • Title

1

Simplicity 1678247

ARM ASSY.

$

$

Not available

2

Simplicity 1960221SM

PIN, Quick
(Superseded to 704039)

$4.49

$

In Stock, Qty 9

0

3

Simplicity 1921319SM

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

4

Simplicity 1960296SM

PIN, Lift Cable

$2.99

$

Usually ships in 2-12 days

0

5

Simplicity 1923341SM

CAPSCREW, Hex, 1/4-20 x 3/4

$4.49

$

In Stock, Qty 8

0

6

Simplicity 1918196SM

PIN, Quick
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

7

Simplicity 2105249SM

PIN, Hitch

$16.99

$

Usually ships in 2-12 days

0

8

Simplicity 2176012SM

PIN, Safety
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

9

Simplicity 1678291

SPACER, Rear

$

$

Not available

10

Simplicity 1678434SM

PIN

$6.99

$

Usually ships in 2-12 days

0

11

Simplicity 1929116

CAPSCREW, Hex, 3/8-16 x 2

$

$

Not available

12

Simplicity 1678339

BRACKET, Lift

$

$

Not available

13

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

14

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

15

Simplicity 1678337SM

CHAIN, Lift

$

$

Not available

16

Simplicity 1921880SM

LOCKWASHER, Ext., 1/4

$3.49

$

Usually ships in 2-12 days

0

17

Simplicity 1916622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

18

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

19

Simplicity 1960286SM

CAPSCREW, Hex, 1/2-13 x 3-1/2

$3.99

$

Usually ships in 2-12 days

0

20

Simplicity 1678304SM

SPACER, Wheel

$16.99

$

In Stock, only 1 left!

0

21

Simplicity 2821133SM

FITTING, Lube, 1/4
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

22

Simplicity 1702483SM

WHEEL

$20.99

$

In Stock, Qty 6

0

23

Simplicity 1685389SM

YOKE ASSY., Wheel

$133.99

$

Usually ships in 2-12 days

0

24

Simplicity 1930644SM

NUT, Lock, 1/2-13

$3.49

$

In Stock, Qty 6

0

25

Simplicity 2176440SM

BUSHING

$4.99

$

In Stock, Qty 20+

0

26

Simplicity 2827794SM

E-RING

$3.49

$

In Stock, Qty 18

0

27

Simplicity 1921974SM

CAPSCREW, Hex, 3/8-16 x 1-1/2

$

$

Not available

28

Simplicity 1678292SM

SPACER, Front

$

$

Not available

29

Simplicity 1917421SM

NUT, Hex Jam, 3/8-16
(Superseded to 703996)

$4.99

$

In Stock, Qty 11

0
