1691278 - Simplicity SunRunner 36" Front Cut Rear-Engine Riding Mower, 8hp 36" Mower Support Group Parts Diagram

SunRunner 36" Front Cut Rear-Engine Riding Mower, 8hp

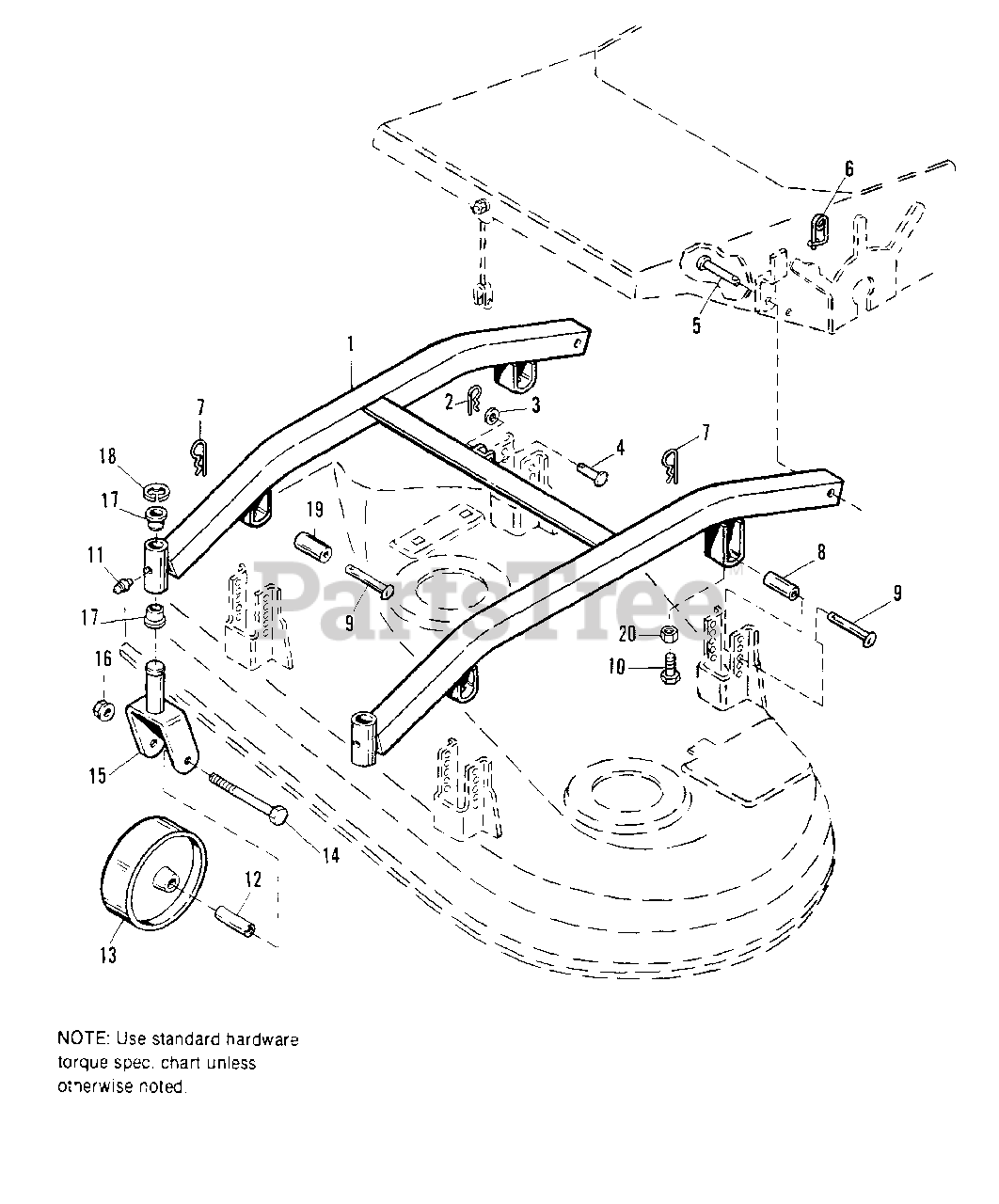

36" Mower Support Group Parts Diagram

  • Title

1

Simplicity 1700251

SUPPORT ASSY., 36" Mower

$

$

Not available

2

Simplicity 1960221SM

PIN, Quick
(Superseded to 704039)

$4.49

$

In Stock, Qty 9

0

3

Simplicity 1921319SM

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

4

Simplicity 1960296SM

PIN, Lift Cable

$2.99

$

Usually ships in 2-12 days

0

5

Simplicity 2105249SM

PIN, Hitch

$16.99

$

Usually ships in 2-12 days

0

6

Simplicity 2176012SM

PIN, Safety
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

7

Simplicity 1918196SM

PIN, Quick
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

8

Simplicity 1678291

SPACER, Rear

$

$

Not available

9

Simplicity 1678434SM

PIN

$6.99

$

Usually ships in 2-12 days

0

10

Simplicity 1921210SM

CAPSCREW, Hex Hd., 3/8-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

11

Simplicity 2821133SM

FITTING, Lube
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

12

Simplicity 1678304SM

SPACER, Wheel

$16.99

$

In Stock, only 1 left!

0

13

Simplicity 1702483SM

WHEEL

$20.99

$

In Stock, Qty 6

0

14

Simplicity 1960286SM

CAPSCREW, Hex Hd., 1/2-13 x 3-1/2

$3.99

$

Usually ships in 2-12 days

0

15

Simplicity 1685389SM

YOKE ASSY.

$133.99

$

Usually ships in 2-12 days

0

16

Simplicity 1930644SM

LOCKNUT, 1/2-13

$3.49

$

In Stock, Qty 6

0

17

Simplicity 2176440SM

BUSHING

$4.99

$

In Stock, Qty 20+

0

18

Simplicity 2827794SM

E-RING

$3.49

$

In Stock, Qty 17

0

19

Simplicity 1678292SM

SPACER, Front

$

$

Not available

20

Simplicity 1917421SM

NUT Hex Jam, 3/8-16
(Superseded to 703996)

$4.99

$

In Stock, Qty 11

0
