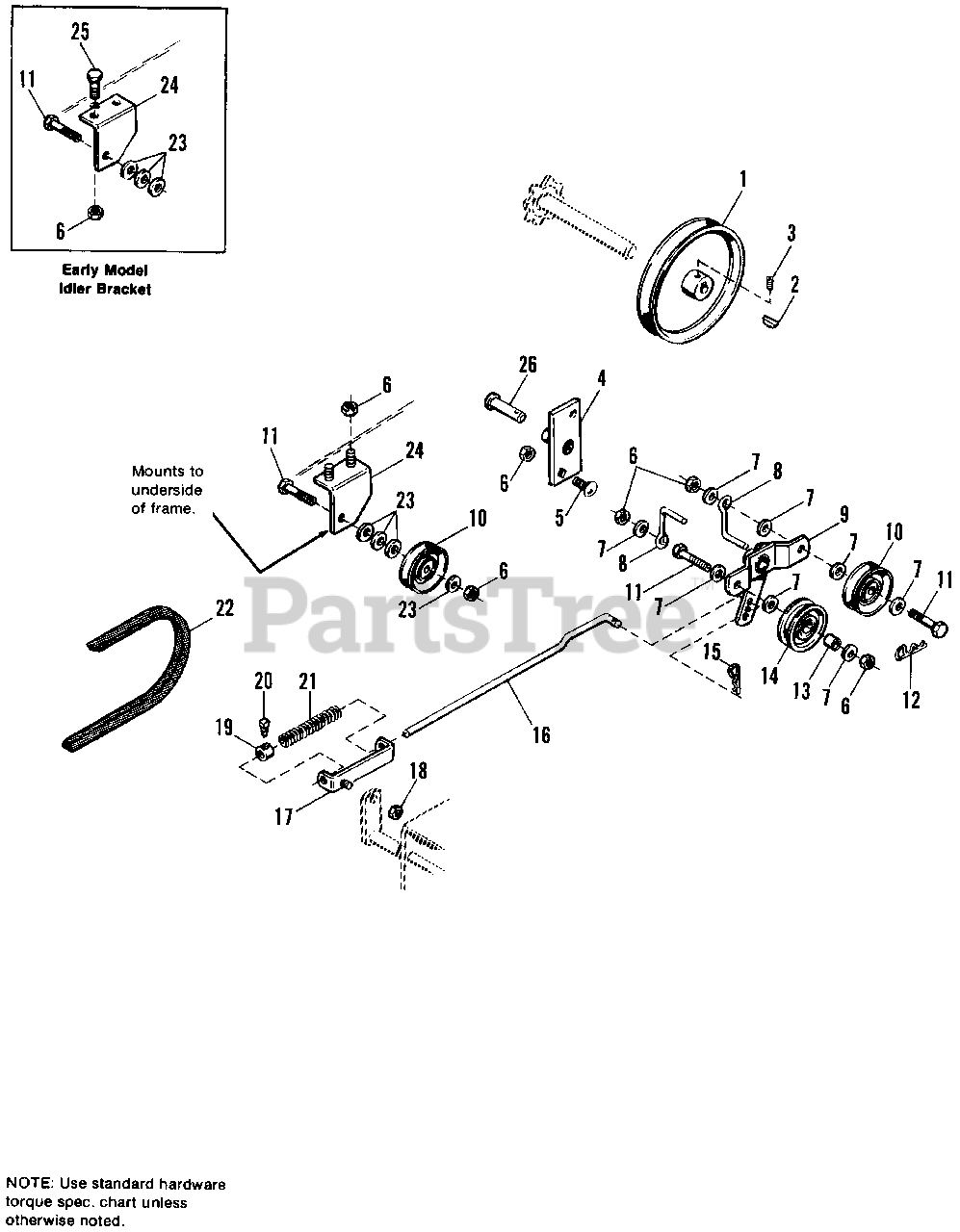

1691277 - Simplicity 30" Offset Tiller Drive & Clutch Group Parts Diagram

30" Offset Tiller

Drive & Clutch Group Parts Diagram

  • Title

1

Simplicity 1679729

PULLEY, Driven

$

$

Not available

2

Simplicity 2805123SM

KEY, #9, 3/16 x 3/4
(Superseded to 7010211YP)

$3.49

$

In Stock, Qty 18

0

3

Simplicity 1930544SM

SETSCREW, 5/16-18 x 1/2
(Superseded to 704033)

$4.49

$

Usually ships in 2-12 days

0

4

Simplicity 1701367

BRACKET & HUB ASSY.

$

$

Not available

5

Simplicity 1931348SM

CARRIAGE BOLT, 3/8 x 3/4
(Superseded to 703448)

$4.49

$

In Stock, Qty 20+

0

6

Simplicity 1916950SM

NUT, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

7

Simplicity 1922755SM

WASHER, 3/8 x 1 x 1/8
(Superseded to 704128)

$4.99

$

In Stock, Qty 11

0

8

Simplicity 1656054SM

GUIDE, Belt

$

$

Not available

9

Simplicity 1679857

BRACKET ASSY., Idler

$

$

Not available

10

Simplicity 2174561SM

PULLEY, Idler

$53.99

$

Usually ships in 2-12 days

0

11

Simplicity 1921971SM

CAPSCREW, 3/8-16 x 1-3/4
(Superseded to 704289)

$4.99

$

In Stock, Qty 13

0

12

Simplicity 1960033SM

PIN, Quick, Hairpin

$3.49

$

In Stock, Qty 20+

0

13

Simplicity 1666294SM

SPACER

$4.99

$

In Stock, Qty 20+

0

14

Simplicity 2154534SM

PULLEY (Flat-side)

$32.99

$

Usually ships in 2-12 days

0

15

Simplicity 1918196SM

PIN
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

16

Simplicity 1679744

ROD, Clutch

$

$

Not available

17

Simplicity 2108662SM

GUIDE, Rod

$

$

Not available

18

Simplicity 1923362SM

NUT, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 19

0

19

Simplicity 1729276SM

COLLAR SET

$

$

Not available

20

Simplicity 1928804SM

SETSCREW, 1/4-20 x 3/8

$4.49

$

Usually ships in 2-12 days

0

21

Simplicity 2163103SM

SPRING

$8.49

$

Usually ships in 2-12 days

0

22

Simplicity 1673667SM

BELT, "V" Rear

$43.99

$

Usually ships in 2-12 days

0

23

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 8

0

24

Simplicity 1700011

BRACKET, Idler (Early Models)

$

$

Not available

24

Simplicity 1703726

BRACKET, Idler (Later Models)

$

$

Not available

25

Simplicity 923369

CAPSCREW, Hex, 3/8-16 x 3/4 (Later Models only)

$

$

Not available

26

Simplicity 1701388

PIN, Clevis

$

$

Not available
