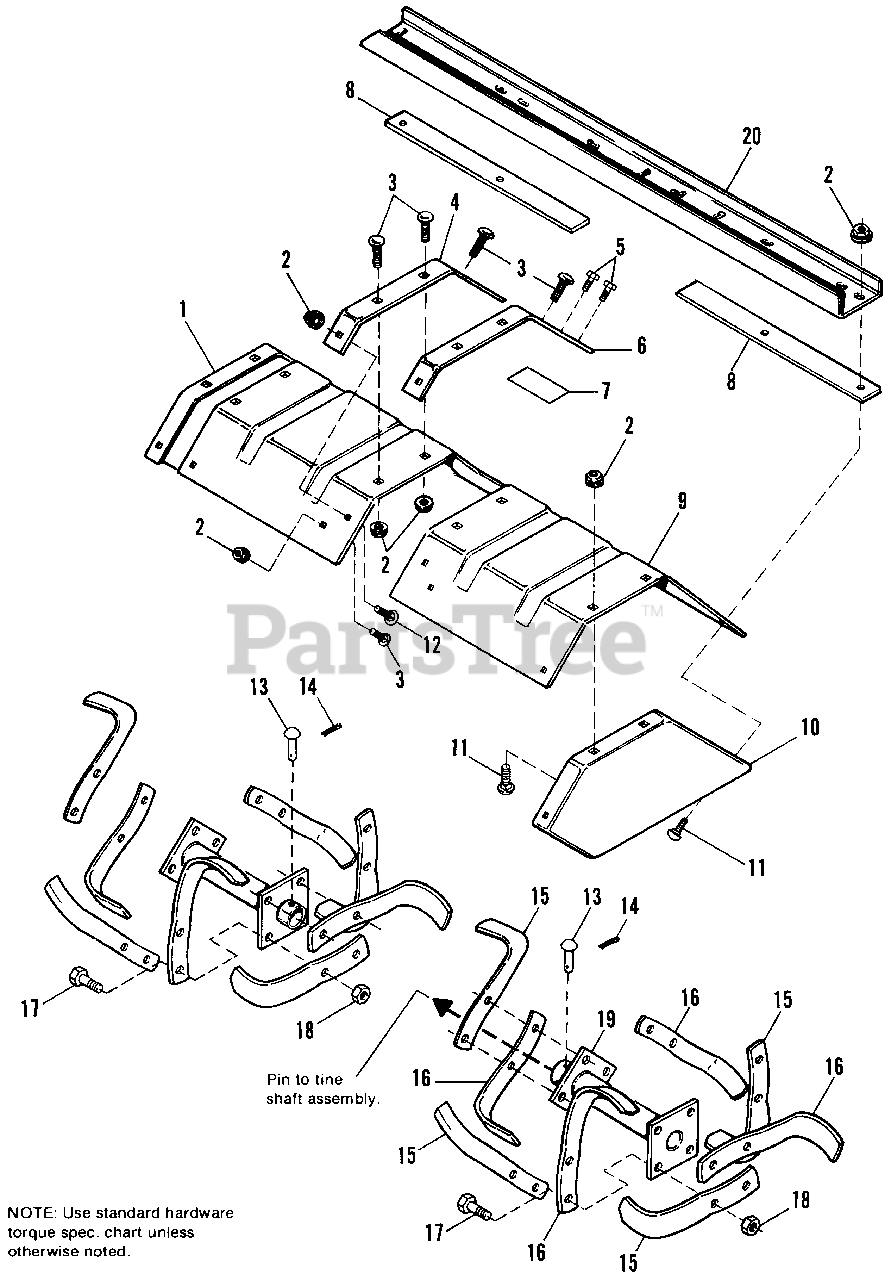

1691277 - Simplicity 30" Offset Tiller Deflector & Tine Group Parts Diagram

30" Offset Tiller

Deflector & Tine Group Parts Diagram

  • Title

1

Simplicity 2105274A

PLATE END, Deflector, R.H.

$

$

Not available

2

Simplicity 1927557SM

NUT, Hex, Flange, 5/16-18

$4.99

$

Usually ships in 2-12 days

0

3

Simplicity 1931332SM

CARRIAGE BOLT, 5/16-18 x 5/8
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

4

Simplicity 1656088

BAR, Reinforcement, R.H.

$

$

Not available

5

Simplicity 1664847SM

SCREW, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

6

Simplicity 1656087

BAR, Reinforcement, L.H.

$

$

Not available

7

Simplicity 1679700SM

DECAL, Safety

$18.99

$

Usually ships in 2-12 days

0

8

Simplicity 1701034

SPACER, Strip

$

$

Not available

9

Simplicity 1678768

DEFLECTOR

$

$

Not available

10

Simplicity 2105273A

PLATE END, Deflector, L.H.

$

$

Not available

11

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

12

Simplicity 1931335SM

CARRIAGE BOLT, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 12

0

13

Simplicity 2118053SM

PIN
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

14

Simplicity 1918451SM

PIN, Cotter, 1/8 x 3/4

$3.99

$

Usually ships in 2-12 days

0

15

Simplicity 1729271SM

TINE BLADE, L.H.

$

$

Not available

16

Simplicity 1729272SM

TINE BLADE, R.H.

$28.99

$

Usually ships in 2-12 days

0

17

Simplicity 1922380

CAPSCREW, Hex, 7/16-20 x 1-1/4

$

$

Not available

18

Simplicity 1928867SM

LOCKNUT, Hex, 7/16-20

$2.99

$

Usually ships in 2-12 days

0

19

Simplicity 1656040SM

HUB & PLATE ASSY., Tine

$89.99

$

Usually ships in 2-12 days

0

20

Simplicity 1700700

CHANNEL

$

$

Not available
