1691250 - Simplicity SunStar Garden Tractor, 14hp Steering Group - Mechanical - Mfg. Nos. 1691250, 1691357, 1691380 Parts Diagram

SunStar Garden Tractor, 14hp

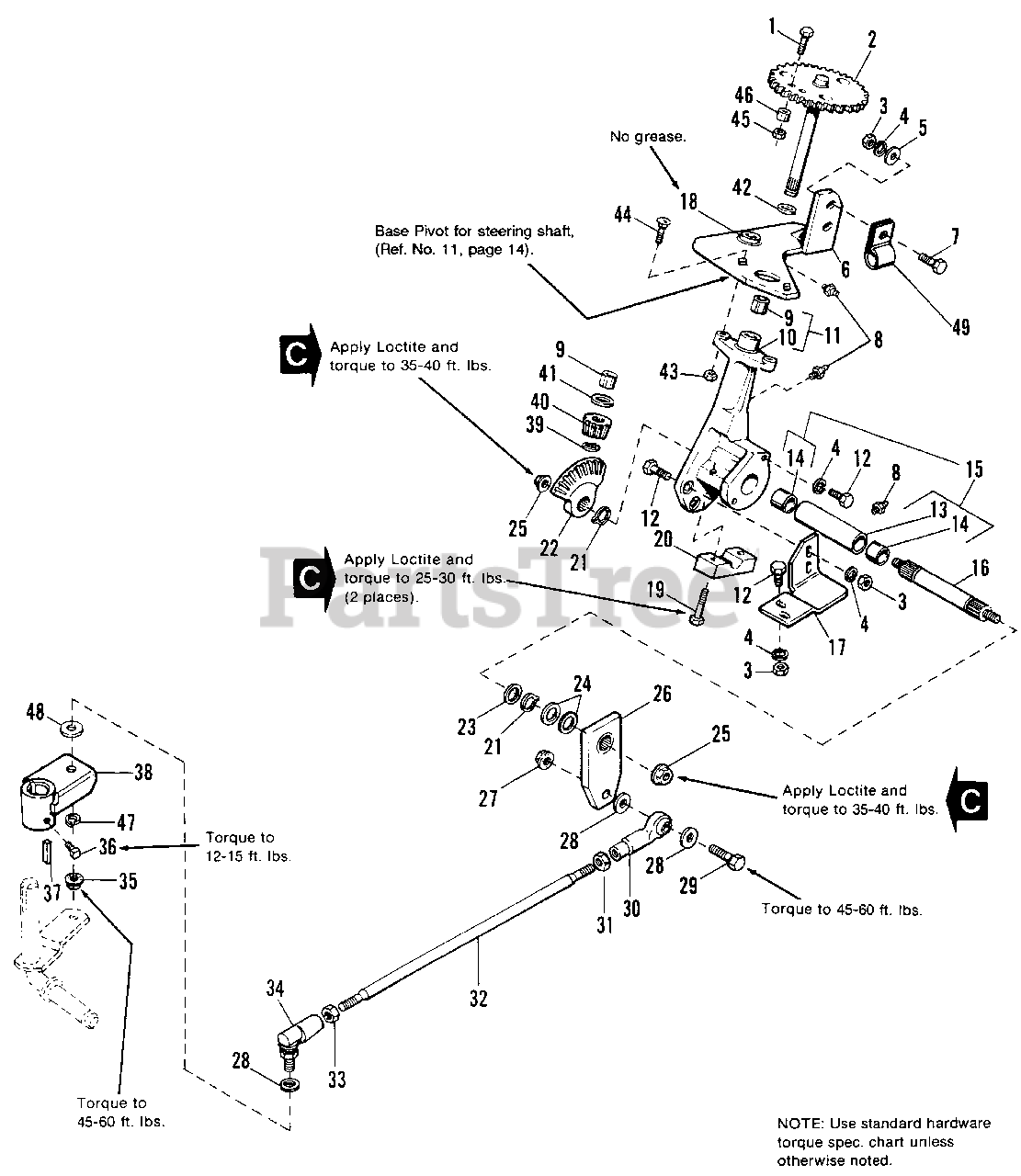

Steering Group - Mechanical - Mfg. Nos. 1691250, 1691357, 1691380 Parts Diagram

  • Title

1

Simplicity 1921977SM

CAPSCREW, Hex Hd., 5/16-18 x 1-1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 7

0

2

Simplicity 1676002

SHAFT & GEAR ASSY. (76 Teeth)

$

$

Not available

3

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

4

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

5

Simplicity 1924940SM

WASHER, Plain, 13/32
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

6

Simplicity 1700840

PLATE ASSY, Gear w/Bushing (Incl. Ref. No. 18)

$

$

Not available

7

Simplicity 1921969SM

CAPSCREW, Hex Hd., 318-16 x 1-1/2
(Superseded to 703406)

$4.99

$

In Stock, only 1 left!

0

8

Simplicity 2821133SM

FITTING, Lube
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

9

Simplicity 1676018SM

BUSHING

$11.99

$

Usually ships in 2-12 days

0

10

CASTING, Steering (See Ref. No. 11)

$

$

Not available

11

Simplicity 1676022

HOUSING, Steering (Incl. Qty. 2 of Ref. Nos. 9 & 10)

$

$

Not available

12

Simplicity 1921210SM

CAPSCREW, Hex Hd., 3/8-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

13

TUBE, Bushing (See Ref. No. 15)

$

$

Not available

14

Simplicity 1676726

BUSHING

$

$

Not available

15

Simplicity 1676028

TUBE ASSY., Bearing (Incl. Ref. Nos. 13 & 14, Qty. 2)

$

$

Not available

16

Simplicity 1676007

SHAFT, Steering Arm

$

$

Not available

17

Simplicity 1676455

BRACKET, Support

$

$

Not available

18

Simplicity 1700839

BUSHING, Plate Assy., Gear

$

$

Not available

19

Simplicity 1921971SM

CAPSCREW, Hex Hd., 3/8-16 x 1-3/4
(Superseded to 704289)

$4.99

$

In Stock, Qty 12

0

20

Simplicity 1678486

CLAMP, Bearing Tube

$

$

Not available

21

Simplicity 2832577SM

RING, Retainer

$4.49

$

In Stock, Qty 20+

0

22

Simplicity 1675991

GEAR, Bevel (14 Teeth)

$

$

Not available

23

Simplicity 2173668SM

WASHER, 1 x 1-3/8 x 1/16

$9.49

$

In Stock, only 2 left!

0

24

Simplicity 1919394SM

WASHER, 1 x 1-5/8 x 1/64
(Superseded to 703149)

$3.49

$

In Stock, Qty 20+

0

25

Simplicity 1930644SM

LOCKNUT, Hex, Flange, 1/2-13

$3.49

$

In Stock, Qty 6

0

26

Simplicity 1676004

ARM ASSY., Steering, Splined

$

$

Not available

27

Simplicity 1924650SM

NUT, Hex, Jam Centerlock, 1/2-13

$3.49

$

Usually ships in 2-12 days

0

28

Simplicity 1960206SM

WASHER, Plain, 17/32 x 3/4 x 5/64

$3.99

$

Usually ships in 2-12 days

0

29

Simplicity 1920328SM

CAPSCREW, Hex Hd., 1/2-13 x 1-1/2
(Superseded to 703571)

$4.49

$

In Stock, only 1 left!

0

30

Simplicity 1678991SM

BALL JOINT

$44.99

$

Usually ships in 2-12 days

0

31

Simplicity 1930624

NUT, Hex, Jam, 1/2-20

$

$

Not available

32

Simplicity 1678992

DRAG LINK

$

$

Not available

33

Simplicity 1919262SM

NUT, Hex, Jam, 1/2-20
(Superseded to 703903)

$3.49

$

In Stock, Qty 20+

0

34

Simplicity 1679433SM

BALL JOINT

$63.99

$

In Stock, only 2 left!

0

35

Simplicity 1930245SM

NUT, Hex, Centerlock, 1/2-20

$3.99

$

Usually ships in 2-12 days

0

36

Simplicity 1928721SM

SETSCREW, Sq. Hd., 5/16-18 x 1/2

$4.99

$

In Stock, only 2 left!

0

37

Simplicity 2805856SM

KEY, Parallel, 1/4 x 1/4 x 1-1/2

$3.49

$

In Stock, only 2 left!

0

38

Simplicity 1674128SM

ARM ASSY., Spindle

$245.99

$

Usually ships in 2-12 days

0

39

Simplicity 2827732SM

RING, Retaining, 3/4
(Superseded to 703979)

$4.49

$

In Stock, Qty 10

0

40

Simplicity 1675992

PINION, Bevel, (14 Teeth)

$

$

Not available

41

Simplicity 2168111SM

WASHER, Thrust, 1-3/8 O.D.

$6.99

$

Usually ships in 2-12 days

0

42

Simplicity 1676725SM

WASHER, Spring

$4.49

$

Usually ships in 2-12 days

0

43

Simplicity 1930645SM

LOCKNUT, Hex, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

44

Simplicity 1923220SM

BOLT, Carriage, 3/8-16 x 1-1/4
(Superseded to 703130)

$3.99

$

In Stock, Qty 13

0

45

Simplicity 1923362SM

NUT, Hex Centerlock, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 18

0

46

Simplicity 1669575

SPACER, Brake

$

$

Not available

47

Simplicity 1916966SM

LOCKWASHER, 1/2
(Superseded to 703341)

$4.49

$

In Stock, only 1 left!

0

48

Simplicity 1676435SM

WASHER, Hardened, 1/2 x 1-1/4 x 3/16

$8.49

$

Usually ships in 2-12 days

0

49

Simplicity 927310

CLAMP, Insulated

$

$

Not available
