1691244 - Simplicity Hi-Side Kit Hi-Side Kit Parts Diagram

Hi-Side Kit

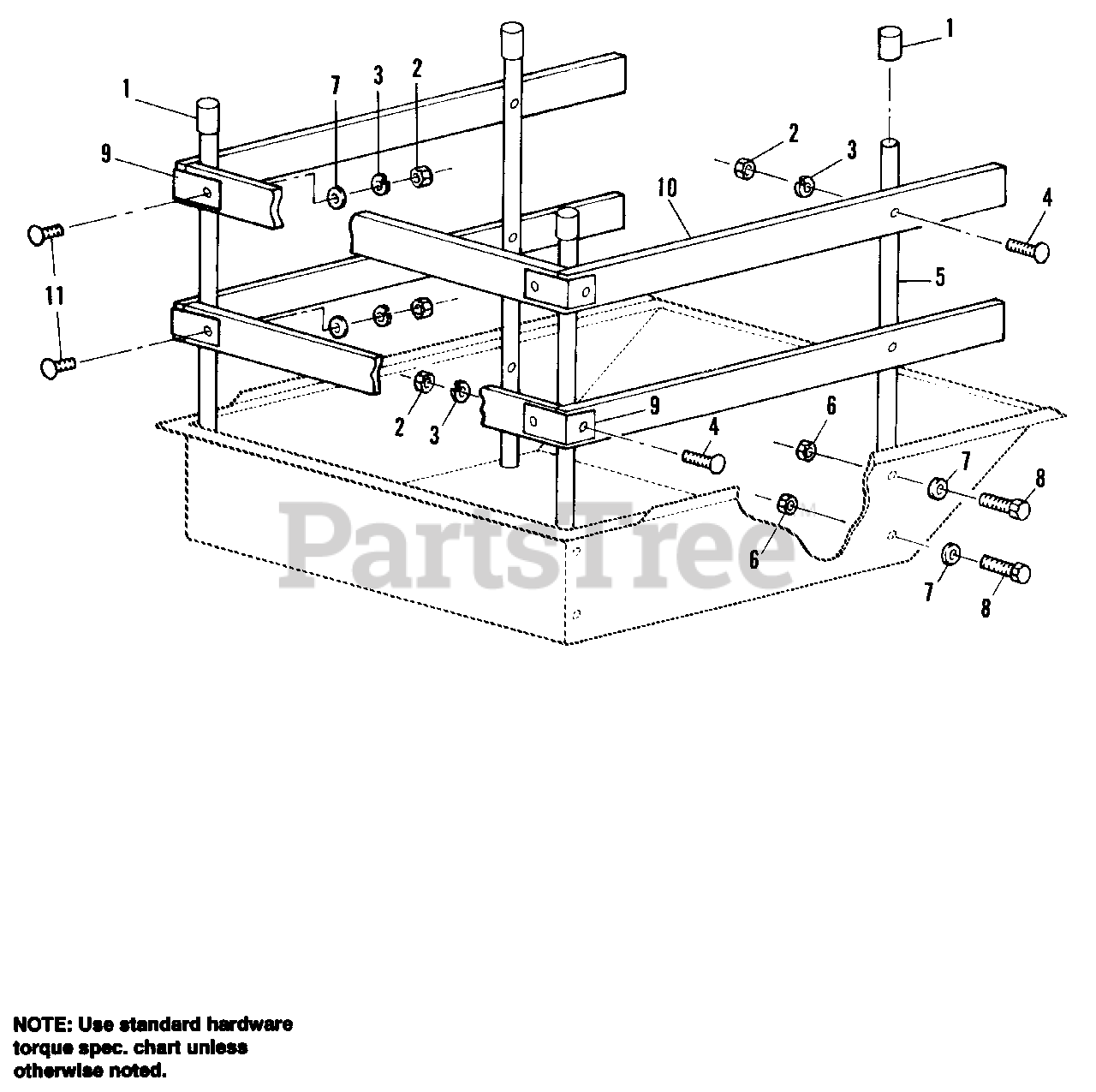

Hi-Side Kit Parts Diagram

  • Title

1

Simplicity 1676894

CAP, Plastic

$

$

Not available

2

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

3

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

4

Simplicity 1931339SM

BOLT, Carriage, 5/16-18 x 2
(Superseded to 704035)

$4.49

$

In Stock, only 2 left!

0

5

Simplicity 1700270

STAKE

$

$

Not available

6

Simplicity 1923362SM

NUT, Loc, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 20+

0

7

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

Usually ships in 2-12 days

0

8

Simplicity 1921221SM

CAPSCREW, Hex, 5/16-18 x 1-1/2
(Superseded to 703906)

$4.99

$

In Stock, only 4 left!

0

9

Simplicity 1700269SM

L-BRACKET

$5.99

$

Usually ships in 2-12 days

0

10

Simplicity 1676902

SIDE, Wood (Drill holes and cut to size.)

$

$

Not available

11

Simplicity 1960223SM

BOLT, Carriage, 5/16-18 x 1-1/4
(Superseded to 703446)

$4.49

$

In Stock, Qty 5

0
