1691220 - Simplicity 42" Mower Deck 42" Mower Deck-Cover, Drive & Bail Group Parts Diagram

42" Mower Deck

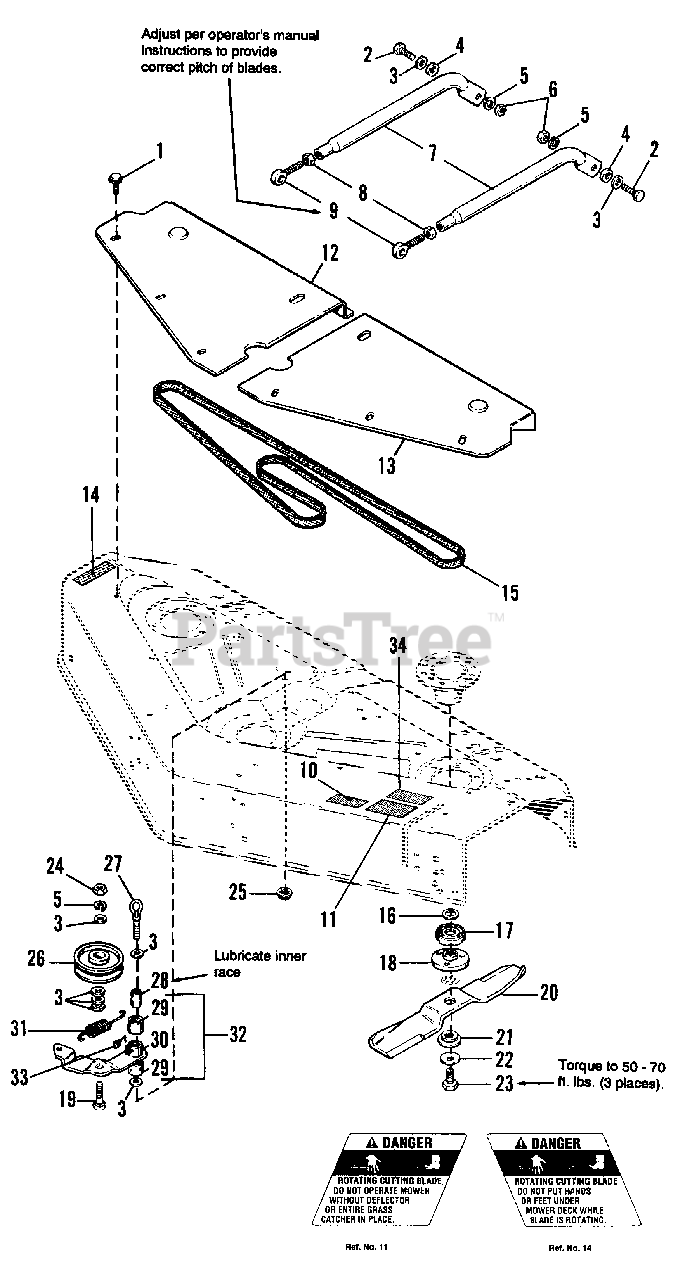

42" Mower Deck-Cover, Drive & Bail Group Parts Diagram

  • Title

1

Simplicity 1929000SM

SCREW. Hex, Taptite, 1/4-20 x 3/8
(Superseded to 703583)

$4.99

$

In Stock, Qty 20+

0

2

Simplicity 1921210SM

CAPSCREW, Hex Hd., 3/8-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

3

Simplicity 1924940SM

WASHER, Plain, 13/32
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

4

Simplicity 2108717SM

SPACER

$17.99

$

Usually ships in 2-12 days

0

5

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

6

Simplicity 1916950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703577)

$4.49

$

Usually ships in 2-12 days

0

7

Simplicity 1651520SM

ARM, Adjusting

$86.99

$

Usually ships in 2-12 days

0

8

Simplicity 1919262SM

NUT, Hex, Jam, 1/2-20
(Superseded to 703903)

$3.49

$

In Stock, Qty 20+

0

9

Simplicity 2157215SM

EYEBOLT

$

$

Not available

10

Simplicity 1709067SM

DECAL, Belt Adjustment

$41.99

$

Usually ships in 2-12 days

0

11

Simplicity 1704277SM

DECAL, Danger, Deflector in Place
(Superseded to 7101665YP)

$14.99

$

In Stock, only 3 left!

0

12

Simplicity 1676096SM

COVER, R.H. (Orange)
(Superseded to 1676096CSM)

$92.99

$

Usually ships in 2-12 days

0

12

Simplicity 1729549

COVER, R.H. (Black)

$

$

Not available

13

Simplicity 1676095CSM

COVER, L.H. (Orange)

$

$

Not available

13

Simplicity 1729548

COVER, L.H. (Black)

$

$

Not available

14

Simplicity 1704276SM

DECAL, Danger, Rotating Blade

$

$

Not available

15

Simplicity 1656960SM

V-BELT, Arbor Drive

$47.99

$

In Stock, only 2 left!

0

16

Simplicity 1700230SM

WASHER, Shim

$4.99

$

In Stock, Qty 20+

0

17

Simplicity 1700229SM

SHIELD, Grass

$10.99

$

In Stock, Qty 20+

0

18

Simplicity 1655777SM

ADAPTER, Blade

$25.99

$

In Stock, Qty 20+

0

19

Simplicity 1960268SM

CARRIAGE BOLT, 3/8-16 x 1-1/4

$4.49

$

In Stock, Qty 10

0

20

Simplicity 1679917ASM

BLADE, 42" Mower

$26.99

$

In Stock, Qty 6

0

21

Simplicity 1679711SM

WASHER, Spline

$7.99

$

In Stock, Qty 20+

0

22

Simplicity 1656916SM

WASHER, Spring

$7.49

$

In Stock, Qty 20+

0

23

Simplicity 2823471SM

CAPSCREW, Hex Hd., 7/16-14 x 1
(Superseded to 703579)

$4.49

$

In Stock, Qty 20+

0

24

Simplicity 1917421SM

NUT, Hex, Jam, 3/8-16
(Superseded to 703996)

$4.99

$

In Stock, Qty 11

0

25

Simplicity 1928352SM

NUT, Hex, Flange Whizlock, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, Qty 5

0

26

Simplicity 1704926SM

PULLEY ASSY., Idler

$38.99

$

In Stock, only 3 left!

0

27

Simplicity 2171815SM

EYEBOLT

$54.99

$

In Stock, only 1 left!

0

28

Simplicity 1674669SM

SPACER

$11.99

$

In Stock, Qty 20+

0

29

Simplicity 1676148SM

BUSHING

$5.99

$

In Stock, Qty 20+

0

30

LEVER ASSY., Idler (Order Ref. No. 32)

$

$

Not available

31

Simplicity 1656936SM

SPRING

$9.99

$

In Stock, Qty 20+

0

32

Simplicity 1718561SM

LEVER ASSY., Idler (lncl. Ref. No. 29, 30 & 33)

$50.99

$

Usually ships in 2-12 days

0

33

Simplicity 2812808SM

FITTING, Grease, 1/4-28

$4.49

$

In Stock, Qty 20+

0

34

Simplicity 1704383

DECAL, Cutting Width, 42"

$

$

Not available
