1691199 - Simplicity 42" Mower Deck 42" Mower Deck & Arbor Group Parts Diagram

42" Mower Deck

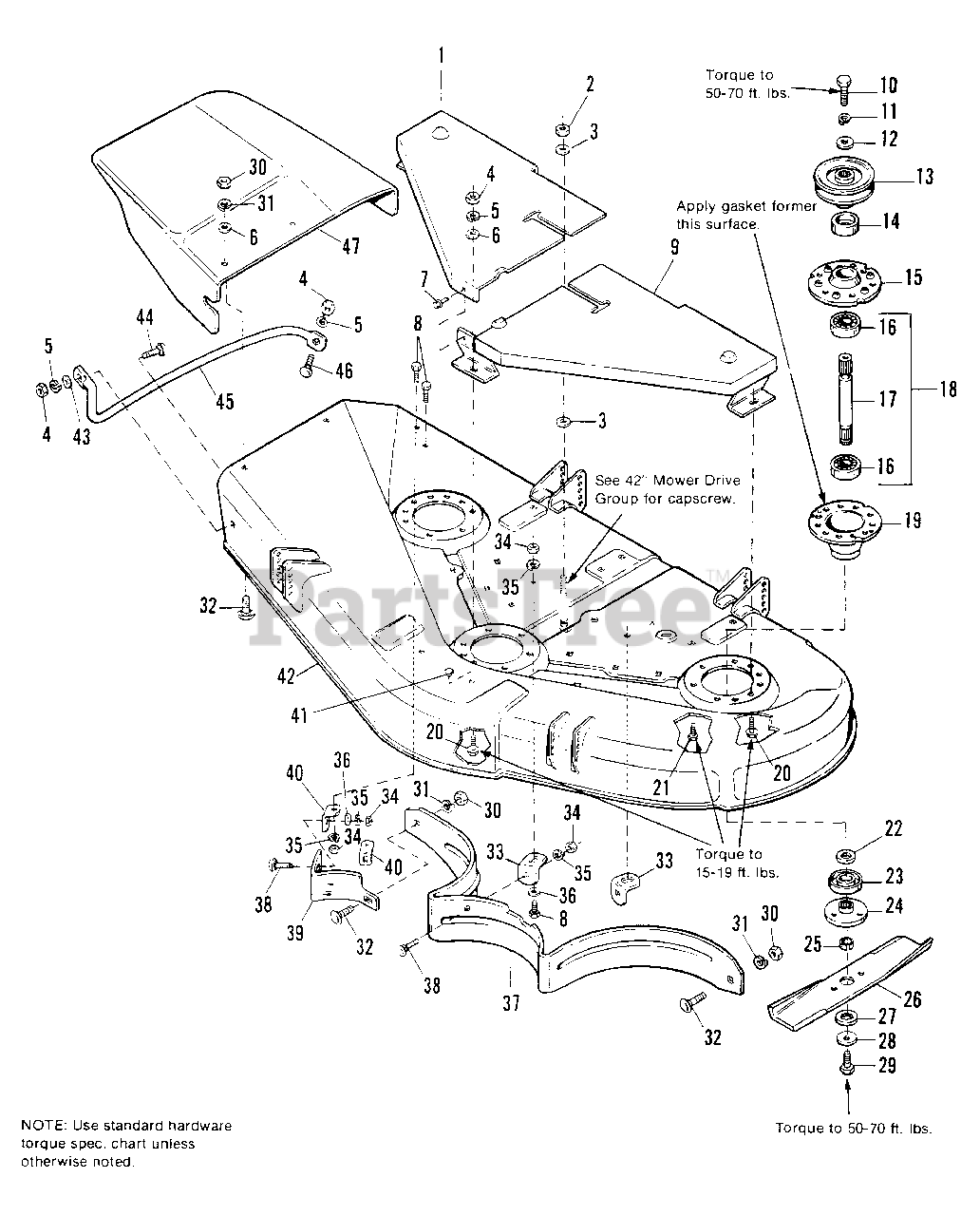

42" Mower Deck & Arbor Group Parts Diagram

  • Title

1

Simplicity 1678294

COVER ASSY., Belt, R.H.

$

$

Not available

2

Simplicity 1917421SM

NUT, Hex, Jam, 3/8-16
(Superseded to 703996)

$4.99

$

In Stock, Qty 11

0

3

Simplicity 1922611SM

WASHER

$6.99

$

In Stock, only 1 left!

0

4

Simplicity 1917372SM

NUT, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

7

Simplicity 1929000SM

SCREW, Taptite, 1/4-20 x 3/8
(Superseded to 703583)

$4.99

$

In Stock, Qty 20+

0

8

Simplicity 1924009SM

CAPSCREW, Hex, 1/4-20 x 7/8
(Superseded to 703819)

$4.49

$

Usually ships in 2-12 days

0

9

Simplicity 1678295

COVER ASSY, Belt, L.H.

$

$

Not available

10

Simplicity 1936723SM

CAPSCREW, Hex, 7/16-14 x 1-3/4

$

$

Not available

11

Simplicity 1918199SM

LOCKWASHER, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

12

Simplicity 1933263SM

WASHER, 7/16
(Superseded to 703990)

$6.99

$

In Stock, Qty 20+

0

13

Simplicity 1678271A

PULLEY ASSY., Arbor
(Superseded to 1678271ASM)

$43.99

$

Usually ships in 2-12 days

0

14

Simplicity 1657969SM

SHIELD, Bearing Upper, Arbor

$7.49

$

In Stock, Qty 20+

0

15

Simplicity 1655729ASM

HOUSING, Top (Arbor)

$14.99

$

Usually ships in 2-12 days

0

16

Simplicity 2108202SM

BEARING

$11.99

$

In Stock, Qty 20+

0

17

Simplicity 1685245SM

SHAFT, Arbor (Incl. Ref. No. 25)

$74.99

$

In Stock, Qty 6

0

18

Simplicity 1685251SM

SHAFT & BEARING ASSY. (Incl Ref. Nos. 16 & 25)

$99.99

$

In Stock, Qty 13

0

19

Simplicity 1655728A

HOUSING, Bottom (Arbor)

$

$

Not available

20

Simplicity 1960373SM

SCREW, Taptite, 5/16-18 x 1
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0

21

Simplicity 1664847SM

SCREW, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

22

Simplicity 1700230SM

WASHER, Shim

$4.99

$

In Stock, Qty 20+

0

23

Simplicity 1700229SM

SHIELD, Grass

$10.99

$

In Stock, Qty 20+

0

24

Simplicity 1655777SM

ADAPTOR, Blade

$25.99

$

In Stock, Qty 20+

0

25

Simplicity 1672132SM

COLLAR, Mower Arbor

$12.99

$

In Stock, only 4 left!

0

26

Simplicity 1656147ASM

BLADE

$21.99

$

In Stock, only 3 left!

0

27

Simplicity 1656927SM

WASHER, Spline

$8.99

$

In Stock, Qty 17

0

28

Simplicity 1656916SM

WASHER, Spring

$7.49

$

In Stock, Qty 20+

0

29

Simplicity 2823471SM

CAPSCREW, Hex, 7/16-14 x 1
(Superseded to 703579)

$4.49

$

In Stock, Qty 20+

0

30

Simplicity 1916950SM

NUT, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

31

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

32

Simplicity 1931348SM

BOLT, Carriage, 3/8-16 x 3/4
(Superseded to 703448)

$4.49

$

In Stock, Qty 20+

0

33

Simplicity 1608331SM

CLIP, Baffle
(Superseded to 1608331ASM)

$10.99

$

Usually ships in 2-12 days

0

34

Simplicity 1916622SM

NUT, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

35

Simplicity 1916964SM

LOCKWASHER
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

36

Simplicity 1921319SM

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

37

Simplicity 1608135SM

BAFFLE
(Superseded to 1608135ASM)

$98.99

$

Usually ships in 2-12 days

0

38

Simplicity 1960252SM

CARRIAGE BOLT, 1/4-20 x 5/8

$3.99

$

In Stock, only 1 left!

0

39

Simplicity 1665709ASM

BAFFLE, Discharge

$51.99

$

Usually ships in 2-12 days

0

40

Simplicity 2108186SM

CLIP, Baffle

$12.99

$

In Stock, only 1 left!

0

41

Simplicity 1700841

PLUG, Plastic

$

$

Not available

42

Simplicity 1685307SM

HOUSING ASSY., 42" Mower

$

$

Not available

43

Simplicity 1919381SM

WASHER, 5/16
(Superseded to 703298)

$4.49

$

In Stock, only 2 left!

0

44

Simplicity 1931335SM

CARRIAGE BOLT, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

45

Simplicity 1665562SM

GUARD, Mower Discharge
(Superseded to 1665562ASM)

$155.99

$

Usually ships in 2-12 days

0

46

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

47

Simplicity 1656049ASM

DEFLECTOR

$

$

Not available
