1691198 - Simplicity SunRunner Front Cut Rear-Engine Riding Mower, 12hp Fuel System Group Parts Diagram

SunRunner Front Cut Rear-Engine Riding Mower, 12hp

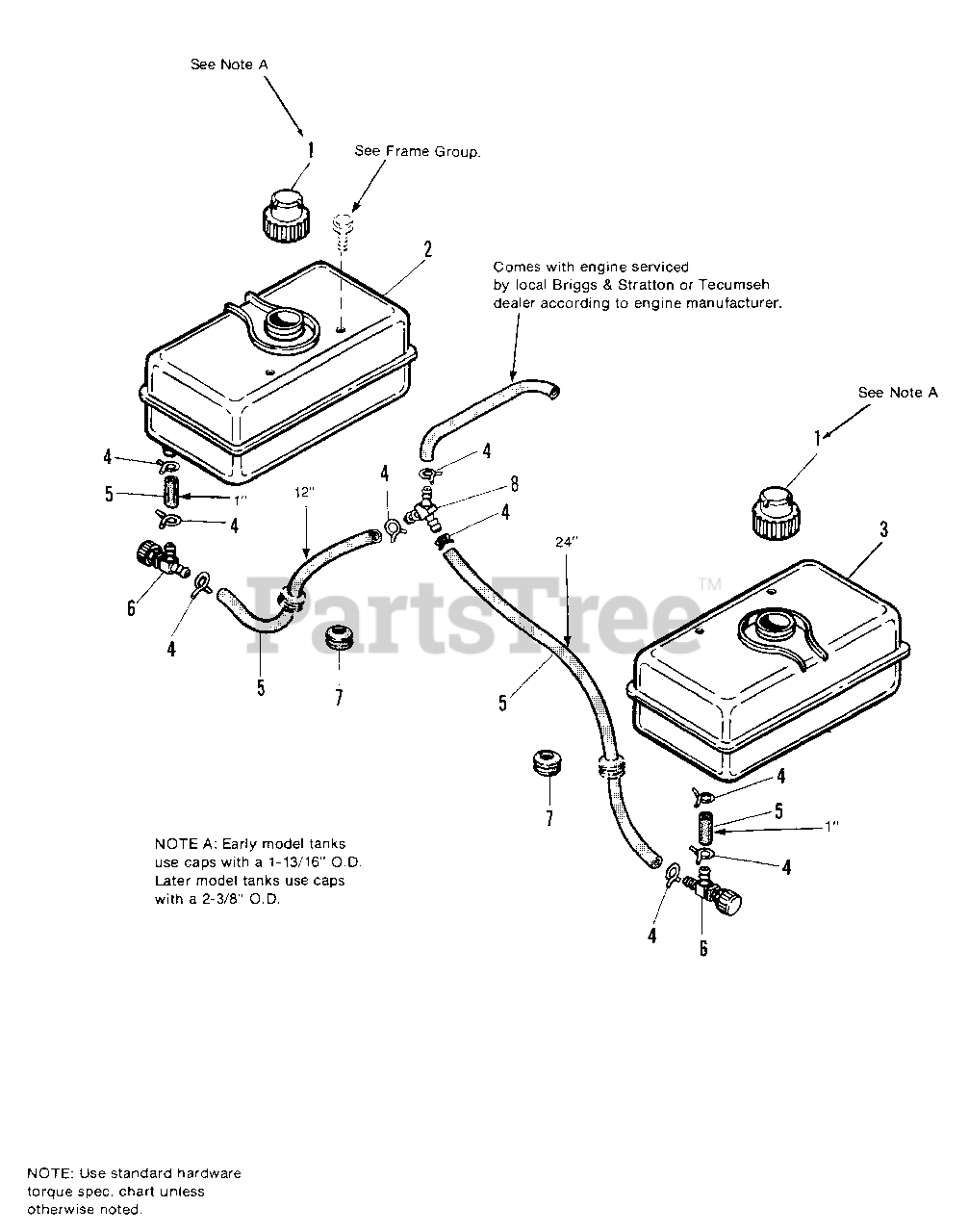

Fuel System Group Parts Diagram

  • Title
1

Simplicity 1702507SM

CAP, Fuel Tank (Later Models 2-3/8" O.D.)

$13.99

$

Usually ships in 2-12 days

0

1

Simplicity 1678454SM

CAP, Fuel Tank (Earlier Models 1-13/16" O.D.)

$24.99

$

Usually ships in 2-12 days

0

2

Simplicity 1702509SM

TANK, Fuel (R.H.)(Incl. Cap Part No. 1702507)

$

$

Not available

3

Simplicity 1702508SM

TANK, Fuel (L.H.)(Incl. Cap Part No. 1702507)

$145.99

$

Usually ships in 2-12 days

0

4

Simplicity 2860112SM

CLAMP, Hose

$3.99

$

Usually ships in 2-12 days

0

5

Simplicity 1718678SM

HOSE, Fuel, 45-1/2" (cut toHOSE, Fuel, Cut to 12th)

$

$

Not available

6

Simplicity 1678455

VALVE, Shutoff

$

$

Not available

$2.99

$

In Stock, only 1 left!

0

8

Simplicity 1678320SM

FITTING, Tee

$10.99

$

Usually ships in 2-12 days

0
