1691186 - Simplicity Twin Bag Collector Tube Group Parts Diagram

Twin Bag Collector

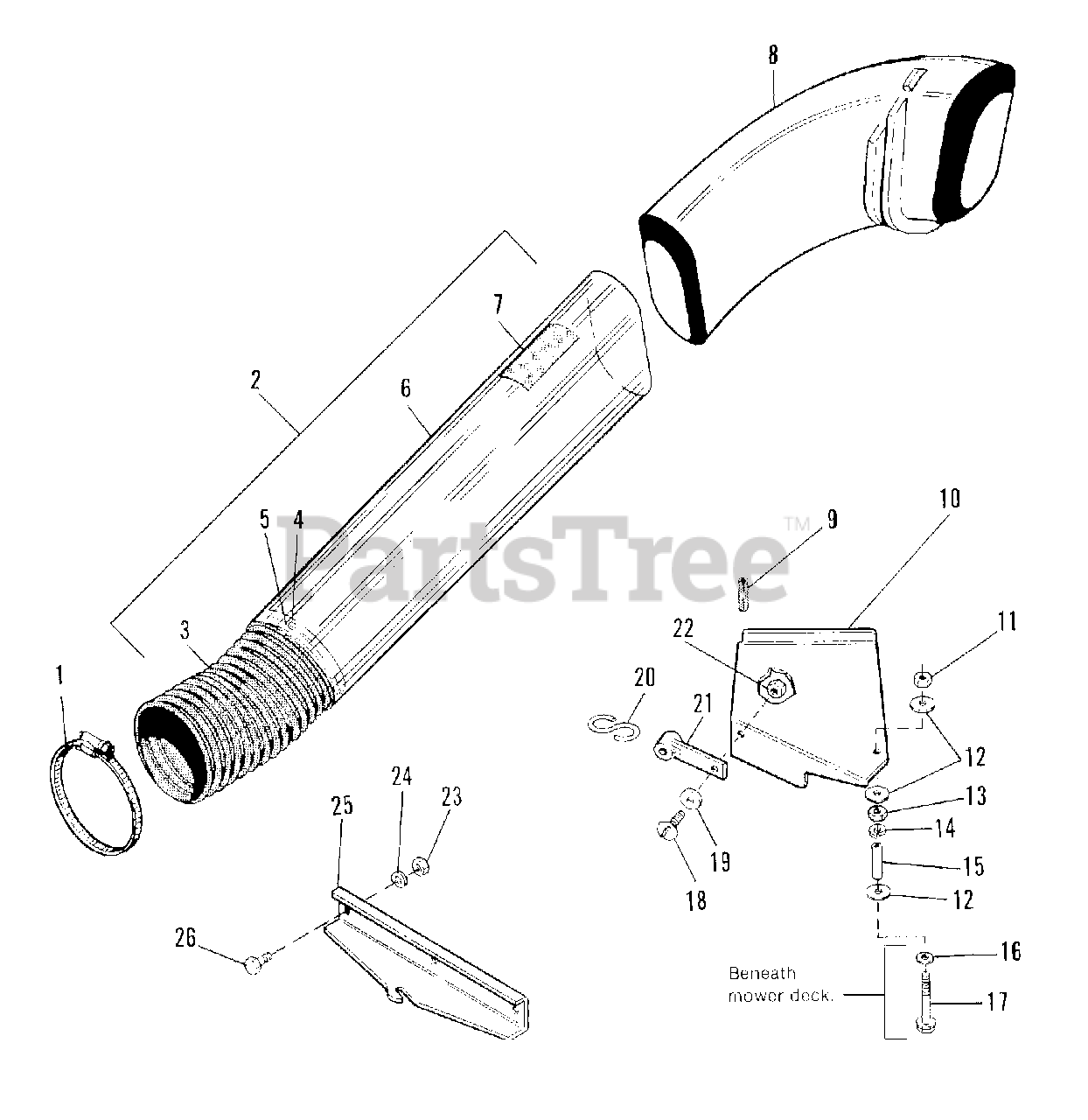

Tube Group Parts Diagram

  • Title

1

Simplicity 1679896SM

CLAMP, 6"

$11.99

$

Usually ships in 2-12 days

0

2

Simplicity 1679176SM

TUBE ASSEMBLY. (Incl. Ref. Nos. 3 - 7)

$

$

Not available

3

Simplicity 1679895SM

HOSE, Exhaust

$164.99

$

Usually ships in 2-12 days

0

4

Simplicity 1673320SM

RIVET, Pop

$4.49

$

In Stock, Qty 8

0

5

Simplicity 1910531SM

WASHER, Rivet

$3.99

$

Usually ships in 2-12 days

0

6

Simplicity 1679174SM

TUBE

$97.99

$

Usually ships in 2-12 days

0

7

Simplicity 1675766SM

DECAL, Cleaning lnstructions

$

$

Not available

8

Simplicity 1669793SM

ELBOW

$113.99

$

Usually ships in 2-12 days

0

9

Simplicity 1679165

MOULDING

$

$

Not available

10

Simplicity 1704960SM

COVER ASSEMBLY

$39.99

$

Usually ships in 2-12 days

0

11

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

12

Simplicity 1920283SM

WASHER, Special

$4.99

$

In Stock, Qty 5

0

13

Simplicity 1923362SM

NUT, Hex, Centerlock, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 19

0

14

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

15

Simplicity 1679085SM

SPACER

$35.99

$

Usually ships in 2-12 days

0

16

Simplicity 1919381SM

WASHER, 5/16
(Superseded to 703298)

$4.49

$

In Stock, only 2 left!

0

17

Simplicity 1960272SM

CAPSCREW, Hex Head, 5/16-18 x 5-1/2

$12.99

$

Usually ships in 2-12 days

0

18

Simplicity 1930531SM

SCREW, Truss Head, Phillips, #10-32 x 1/2

$4.49

$

In Stock, only 2 left!

0

19

Simplicity 1960096SM

WASHER, Special

$3.99

$

Usually ships in 2-12 days

0

20

Simplicity 1679204SM

"S" HOOK

$2.99

$

Usually ships in 2-12 days

0

21

Simplicity 1679205SM

STRAP, Arbor Cover

$9.49

$

Usually ships in 2-12 days

0

22

Simplicity 1930627SM

NUT, Hex, Centerlock, #10-32

$2.99

$

Usually ships in 2-12 days

0

23

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

24

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

25

Simplicity 1669193ASM

SUPPORT, Attachment

$18.99

$

Usually ships in 2-12 days

0

26

Simplicity 1920415SM

CAPSCREW, Hex Head, 3/8-16 x 1
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0
