1691184 - Simplicity 60" Mower Deck 60" Mower, Arbor & Drive Group Parts Diagram

60" Mower Deck

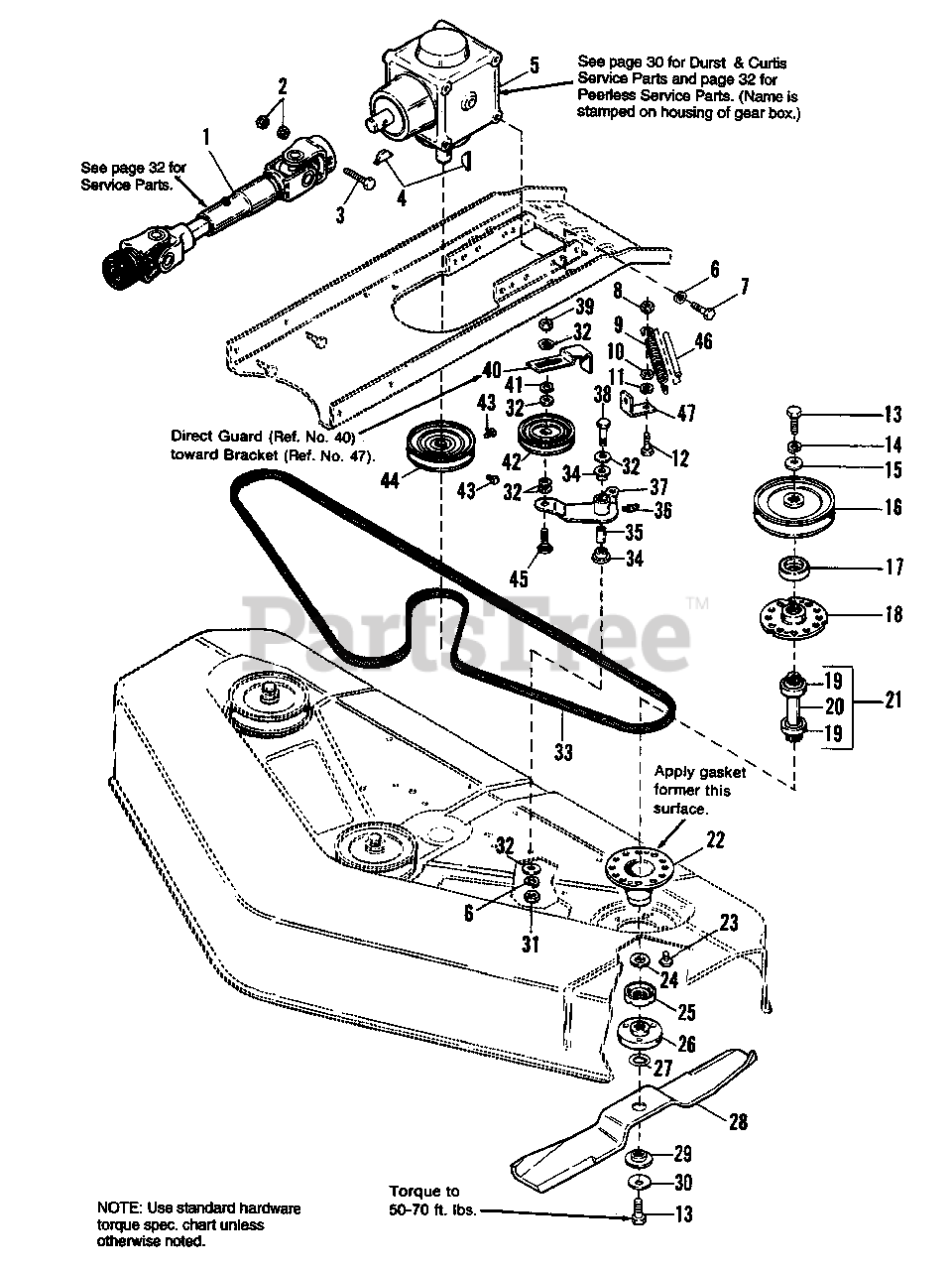

60" Mower, Arbor & Drive Group Parts Diagram

  • Title

1

Simplicity 1674213SM

DRIVE SHAFT ASSY., Telescoping

$293.99

$

Usually ships in 2-12 days

0

2

Simplicity 1923358SM

LOCKNUT, Hex, 1/4-20
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

3

Simplicity 1925688SM

CAPSCREW, Hex, 1/4-20 x 3
(Superseded to 704209)

$3.99

$

Usually ships in 2-12 days

0

4

Simplicity 2822138SM

KEY, Hi-Pro

$9.99

$

In Stock, only 2 left!

0

5

Simplicity 1717069SM

RIGHT ANGLE GEAR CASE ASSY.

Note: (See "42", 48" & 60" Mower, Drive Assy.(Curtis Gear Box) & 42", 48" & 60" Mower, Drive Assy (Durst Gear Box) Illustration and part list.

$797.99

$

Usually ships in 2-12 days

0

6

Simplicity 1916965SM

LOCKWASHER, 5/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

7

Simplicity 1921965SM

CAPSCREW, Hex, 3/8-16 x 3/4
(Superseded to 703237)

$4.99

$

Usually ships in 2-12 days

0

8

Simplicity 1923362SM

LOCKNUT, Hex, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 19

0

9

Simplicity 1674671SM

SPRING

$24.99

$

In Stock, Qty 5

0

10

Simplicity 1917372SM

Nut, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

11

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

12

Simplicity 1921333SM

CAPSCREW, Hex, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

13

Simplicity 2823471SM

CAPSCREW, Hex, 7/16-14 x 1
(Superseded to 703579)

$4.49

$

In Stock, Qty 20+

0

14

Simplicity 1918199SM

LOCKWASHER, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

15

Simplicity 1933263SM

WASHER, 7/16
(Superseded to 703990)

$6.99

$

In Stock, Qty 20+

0

16

Simplicity 1678665ASM

PULLEY ASSY., Arbor Drive

$59.99

$

Usually ships in 2-12 days

0

17

Simplicity 1657969SM

SHIELD, Bearing Upper, Arbor

$7.49

$

In Stock, Qty 20+

0

18

Simplicity 1655729ASM

ARBOR HOUSING, Top

$14.99

$

Usually ships in 2-12 days

0

19

Simplicity 2108202SM

BEARING (Arbor Shaft)

$11.99

$

In Stock, Qty 20+

0

20

Simplicity 1676277SM

Shaft, Arbor

$

$

Not available

21

Simplicity 1676278A

ARBOR SHAFT & BEARING ASSY.
(Superseded to 1676278SM)

Note: (Incl. Ref. Nos. 19 & 20)

$

$

Not available

22

Simplicity 1655728A

ARBOR HOUSING, Bottom

$

$

Not available

23

Simplicity 1664847SM

SCREW, Hex, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

24

Simplicity 1700230SM

WASHER, Shim

$4.99

$

In Stock, Qty 20+

0

25

Simplicity 1700229SM

SHIELD, Grass

$10.99

$

In Stock, Qty 20+

0

26

Simplicity 1655777SM

ADAPTOR, Blade

$25.99

$

In Stock, Qty 20+

0

27

Simplicity 1657528SM

RING, Self Locking

$4.49

$

In Stock, Qty 20+

0

28

Simplicity 1719598ASM

BLADE, 60" Mower
(Superseded to 1719598BZYP)

$29.99

$

In Stock, Qty 20+

0

29

Simplicity 1679711SM

WASHER, Spline

$7.99

$

In Stock, Qty 20+

0

30

Simplicity 1656916SM

WASHER, Spring

$7.49

$

In Stock, Qty 20+

0

31

Simplicity 1916950SM

NUT, Hex, 3/8
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

32

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 8

0

33

Simplicity 1674570SM

BELT, Arbor Drive

$86.99

$

Usually ships in 2-12 days

0

34

Simplicity 1676148SM

BUSHING

$5.99

$

In Stock, Qty 20+

0

35

Simplicity 1674669SM

SPACER

$11.99

$

In Stock, Qty 20+

0

36

Simplicity 2815019SM

FITTING Lube

$4.49

$

In Stock, only 2 left!

0

37

Simplicity 1700395SM

LEVER ASSY., Idler
(Superseded to 1700395ASM)

$131.99

$

In Stock, only 1 left!

0

38

Simplicity 1923701SM

CAPSCREW, Hex, 3/8-16 x 2
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

39

Simplicity 1928731SM

LOCKNUT, Hex, Jam, 3/8-16

$4.99

$

In Stock, only 1 left!

0

40

Simplicity 1679486SM

IDLER STOP

$22.99

$

Usually ships in 2-12 days

0

41

Simplicity 1916803SM

LOCKWASHER, Internal 3/8

$4.49

$

Usually ships in 2-12 days

0

42

Simplicity 1686674SM

PULLEY, Idler

$57.99

$

In Stock, only 1 left!

0

43

Simplicity 1928721SM

SETSCREW, Sq. Hd., 5/16-1/2

$4.99

$

In Stock, Qty 5

0

44

Simplicity 1674643SM

PULLEY ASSY., Drive

$152.99

$

Usually ships in 2-12 days

0

45

Simplicity 1960032SM

CAPSCREW, Hex, 3/8-16 x 1-1/4

$5.49

$

In Stock, only 1 left!

0

46

Simplicity 1679487

ROD

$

$

Not available

47

Simplicity 1668500A

BRACKET
(Superseded to 1668500SM)

$19.99

$

In Stock, only 1 left!

0
