1691151 - Simplicity 36" Snow Thrower Attachment 36" & 42" Body & Rotor Group Parts Diagram

36" Snow Thrower Attachment

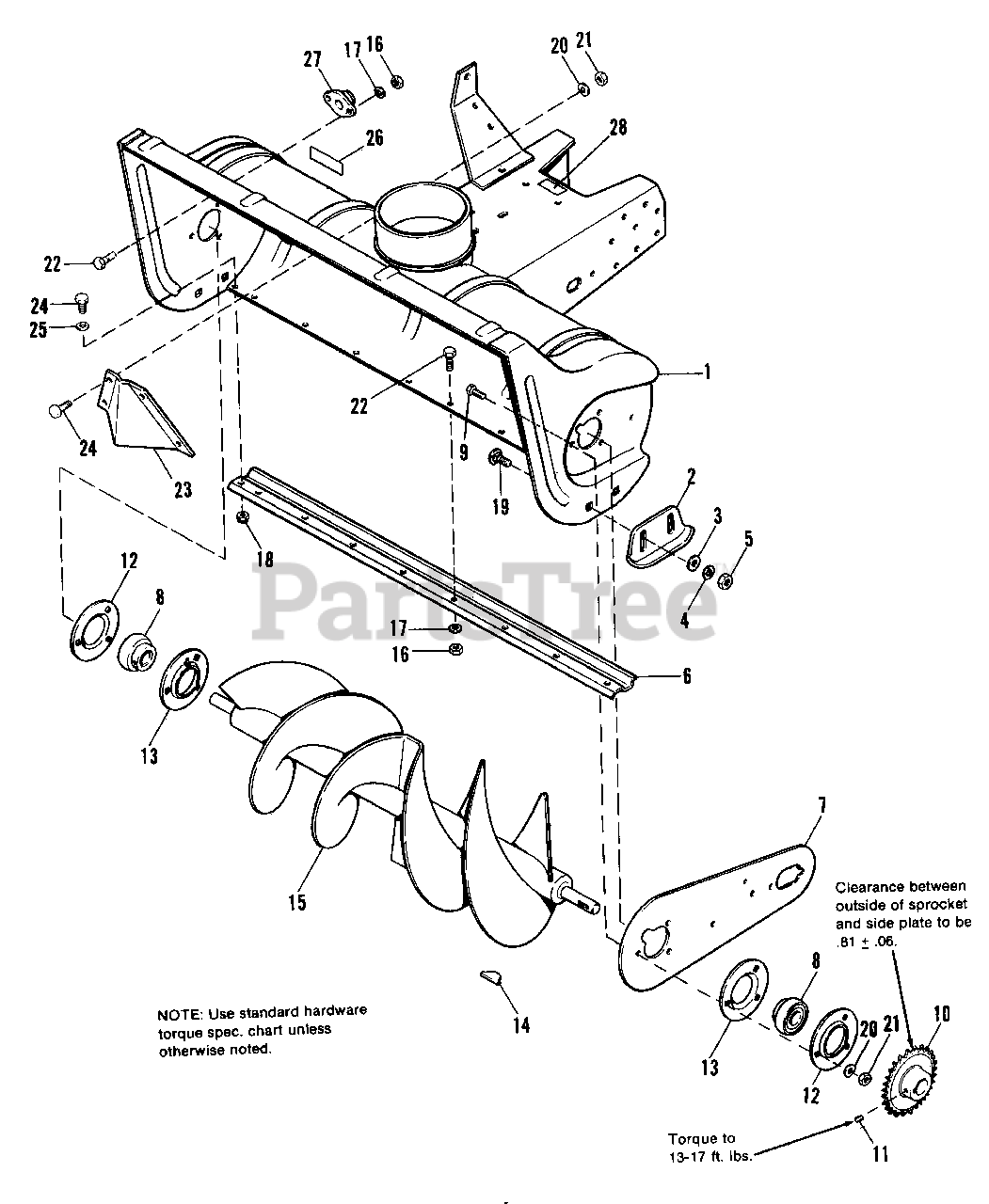

36" & 42" Body & Rotor Group Parts Diagram

  • Title

1

Simplicity 1713541SM

BODY & FRAME ASSY. (1690547 Only)
(Superseded to 1713541ASM)

$655.99

$

Usually ships in 2-12 days

0

1

Simplicity 1713542SM

BODY & FRAME ASSY. (1690548 only)

$

$

Not available

2

Simplicity 2177434C

SKID

$

$

Not available

3

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

4

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

5

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

6

Simplicity 2106863ASM

SCRAPER, Body (1690547 Only)

$213.99

$

Usually ships in 2-12 days

0

6

Simplicity 2106746ASM

SCRAPER, Body (1690548 only)

$158.99

$

In Stock, only 4 left!

0

7

Simplicity 2171221

PLATE, Side

$

$

Not available

8

Simplicity 2173934SM

BEARING, Cartridge
(Superseded to 1733105SM)

$57.99

$

In Stock, Qty 20+

0

9

Simplicity 2821332

CAPSCREW, Hex, 5/16-18 x 3/4

$

$

Not available

10

Simplicity 2106653SM

SPROCKET, Rotor

$98.99

$

Usually ships in 2-12 days

0

11

Simplicity 2828721

SETSCREW, 5/16-18 x 5/16
(Superseded to 1930540SM)

$4.49

$

In Stock, Qty 11

0

12

Simplicity 2172278ASM

FLANGE, Bearing

$11.99

$

In Stock, Qty 8

0

13

Simplicity 2172279ASM

FLANGE, Bearing

$14.99

$

Usually ships in 2-12 days

0

14

Simplicity 2151040SM

KEY

$9.49

$

In Stock, only 2 left!

0

15

Simplicity 2106856

ROTOR ASSY. (1690547 Only)

$

$

Not available

15

Simplicity 2106748

ROTOR ASSY. (1690548 only)

$

$

Not available

16

Simplicity 2816622SM

NUT, Hex, Full, 1/4-20 (Qty. 10 on 1690548)
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

17

Simplicity 2816964SM

LOCKWASHER, 1/4 (Qty. 10 on 1690548)
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

18

Simplicity 2823362

LOCKNUT, Hex, 5/16-18

$

$

Not available

19

Simplicity 2822110

BOLT, Carriage, 3/8-16 x 3/4

$

$

Not available

20

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

21

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

22

Simplicity 2821959

CAPSCREW, Hex, 1/4-20 x 5/8 (Qty. 10 on 1690548)

$

$

Not available

23

Simplicity 2106774ASM

DEFLECTOR

$29.99

$

Usually ships in 2-12 days

0

24

Simplicity 2825205

CAPSCREW, Hex, 5/16-18 x 5/8

$

$

Not available

25

Simplicity 2817377

WASHER, Plain, 1/4

$

$

Not available

26

Simplicity 2161247

DECAL, Safety

$

$

Not available

27

Simplicity 2171388SM

BEARING

$11.99

$

In Stock, only 1 left!

0

28

PLATE, I.D.

$

$

Not available
