1691137 - Simplicity 42" Mower Deck 42" & 48" Mower Deck-Deflector, Stone Guard & Arm Assy. Group Parts Diagram

42" Mower Deck

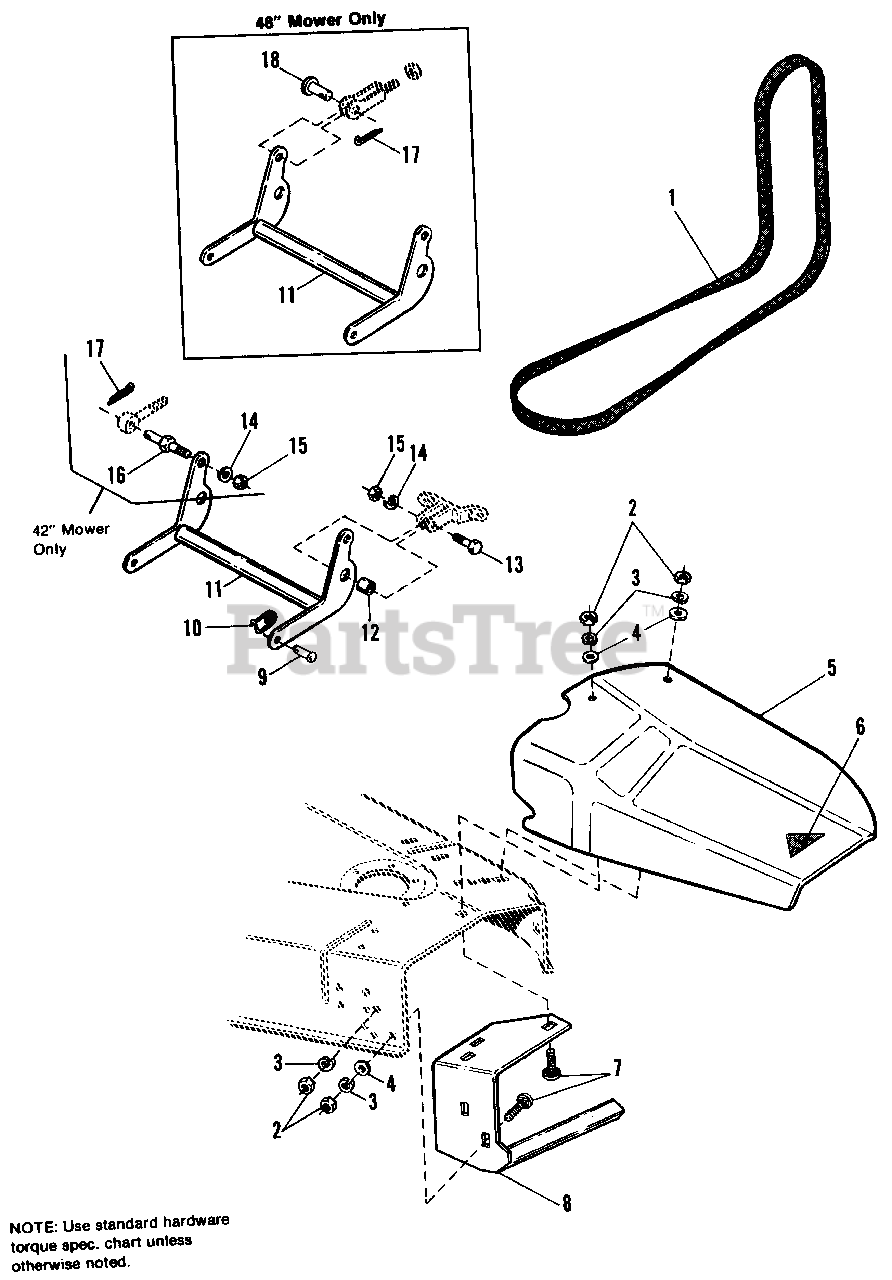

42" & 48" Mower Deck-Deflector, Stone Guard & Arm Assy. Group Parts Diagram

  • Title
1

Simplicity 1666801SM

V-BELT, PTO to Mower, 42" Mower

$40.99

$

In Stock, Qty 7

0

1

Simplicity 1713515SM

BELT, PTO to Mower, 48" Mower

$34.99

$

In Stock, Qty 18

0

2

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

3

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

4

Simplicity 1924356SM

WASHER, Special
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

5

Simplicity 1651177SM

DEFLECTOR, 42" Mower (Orange)
(Superseded to 1651177ASM)

$

$

Not available

5

Simplicity 1729542SM

DEFLECTOR, 42" Mower (Black)
(Superseded to 1651177ASM)

$

$

Not available

5

Simplicity 1651184SM

DEFLECTOR, 48" Mower (Orange)

$

$

Not available

5

Simplicity 1729543SM

DEFLECTOR, 48" Mower (Black)
(Superseded to 1687506YP)

$250.99

$

Usually ships in 2-12 days

0

6

DECAL, OPEI

$

$

Not available

7

Simplicity 1960268SM

CARRIAGE BOLT, 3/8-16 x 1-1/4

$4.49

$

In Stock, Qty 9

0

8

Simplicity 2174167SM

GUARD ASSY., Stone, 42" Mower

$

$

Not available

8

Simplicity 2174127SM

GUARD ASSY., Stone, 48" Mower

$

$

Not available

$7.49

$

In Stock, Qty 14

0

10

Simplicity 2176012SM

PIN, Clip
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

11

Simplicity 2172468A

ROCKER ARM ASSY.
(Superseded to 2172468ASM)

$95.99

$

Usually ships in 2-12 days

0

$19.99

$

Usually ships in 2-12 days

0

13

Simplicity 1921176SM

CAPSCREW, Hex Hd., 1/2-13 x 1-1/4

$4.99

$

In Stock, only 1 left!

0

14

Simplicity 1916966SM

LOCKWASHER, 1/2 (Qty. 2 on 48" Mower)
(Superseded to 703341)

$4.49

$

In Stock, only 1 left!

0

15

Simplicity 1913744SM

NUT, Hex, Jam, 1/2-13 (Qty. 2 on 48" Mower)

$4.99

$

In Stock, Qty 19

0

16

Simplicity 1651516SM

PIN, Pivot (42" Mower Only)

$21.99

$

Usually ships in 2-12 days

0

17

Simplicity 1918452SM

PlN, Cotter, 1/8 x 1
(Superseded to 703795)

$5.99

$

In Stock, only 1 left!

0

18

Simplicity 1960116SM

PlN, Yoke,(48" Mower Only)
(Superseded to 5025479YP)

$3.99

$

In Stock, only 2 left!

0
