1691094 - Simplicity Cart Collector Cart Collector - Cart Group Parts Diagram

Cart Collector

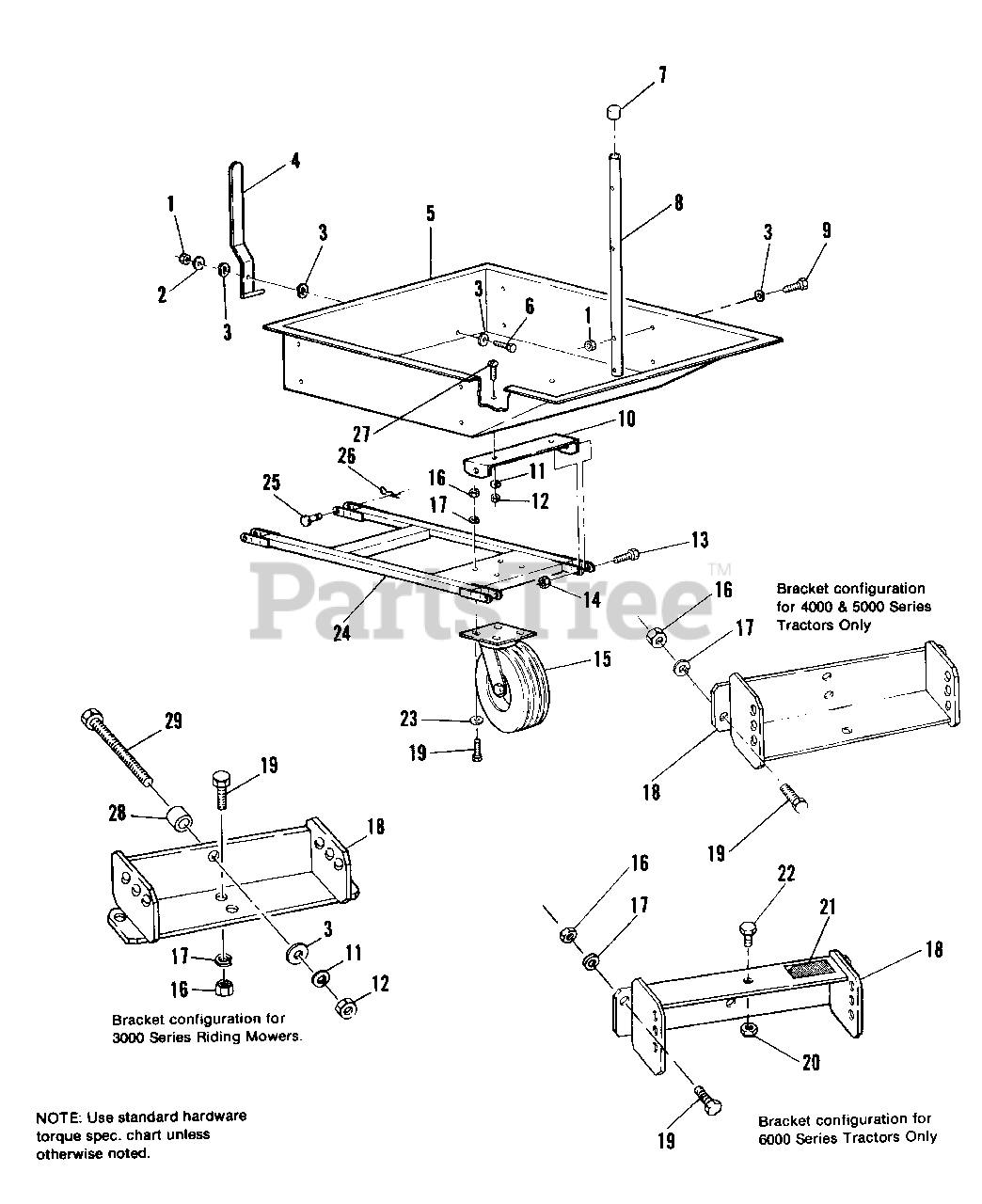

Cart Collector - Cart Group Parts Diagram

  • Title

1

Simplicity 1923362SM

NUT, Hex Lock, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 19

0

2

Simplicity 2177649SM

WASHER, Spring, 5/16

$9.49

$

In Stock, Qty 5

0

3

Simplicity 1919326SM

WASHER, Plain, 5/16

$4.49

$

In Stock, Qty 9

0

4

Simplicity 1676890

HANDLE, Latch

$

$

Not available

5

CART, Box

$

$

Not available

6

Simplicity 1921333SM

CAPSCREW, Hex Hd., 5/16-18 x 1, Gr. 5
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

7

Simplicity 1676894

CAP, Plastic

$

$

Not available

8

Simplicity 1676893

STAKE

$

$

Not available

9

Simplicity 1921221SM

CAPSCREW, Hex Hd., 5/16-18 x 1-1/2, Gr. 5
(Superseded to 703906)

$4.99

$

In Stock, only 4 left!

0

10

Simplicity 1676891

"U" Bracket

$

$

Not available

11

Simplicity 1917356SM

LOCKWASHER
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

12

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

13

Simplicity 1921176SM

CAPSCREW, Hex Hd., 1/2-13 x 1-1/4, Gr. 5

$4.99

$

In Stock, only 1 left!

0

14

Simplicity 1922134SM

NUT, Hex Lock, 1/2-13
(Superseded to 703894)

$3.49

$

In Stock, Qty 9

0

15

Simplicity 1676892SM

WHEEL ASSY., Swivel

$307.99

$

Usually ships in 2-12 days

0

16

Simplicity 1916950SM

NUT, Hex, 3/8
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

17

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

18

Simplicity 1676898SM

*BRACKET, Rear Hitch

$

$

Not available

19

Simplicity 1921210SM

CAPSCREW, Hex Hd., 3/8-16 x 1, Gr. 5
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

20

Simplicity 1930645SM

NUT, Hex Full Lock, 3/8-16 (6000 Tractors only)
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

21

Simplicity 1700346

DECAL, Warning (6000 Tractors Only)

$

$

Not available

22

Simplicity 1921965SM

CAPSCREW, Hex, 3/8-16 x 3/4 (6000 Tractors only)
(Superseded to 703237)

$4.99

$

Usually ships in 2-12 days

0

23

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

24

Simplicity 1676889

"H" Frame

$

$

Not available

25

Simplicity 1960116SM

PIN, Clevis, 1/2 x 1-1/4
(Superseded to 5025479YP)

$3.99

$

Usually ships in 2-12 days

0

26

Simplicity 2176012SM

HAIR PIN
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

27

Simplicity 1931317SM

CARRIAGE BOLT, 5/16-18 x 3/4, Gr. 5
(Superseded to 703101)

$3.99

$

In Stock, only 2 left!

0

28

Simplicity 1960237SM

SPACER, 3/8", Hitch Bracket (1691094 only)

$4.99

$

Usually ships in 2-12 days

0

29

Simplicity 1921719SM

HEX BOLT, 5/16-18 x 2-1/2 (1691094 Only)
(Superseded to 703868)

$4.99

$

In Stock, only 4 left!

0
