1691017 - Simplicity Sunstar Garden Tractor, 18hp Steering Group - Mechanical - Mfg No 1691017 Diagram 2 Parts Diagram

Sunstar Garden Tractor, 18hp

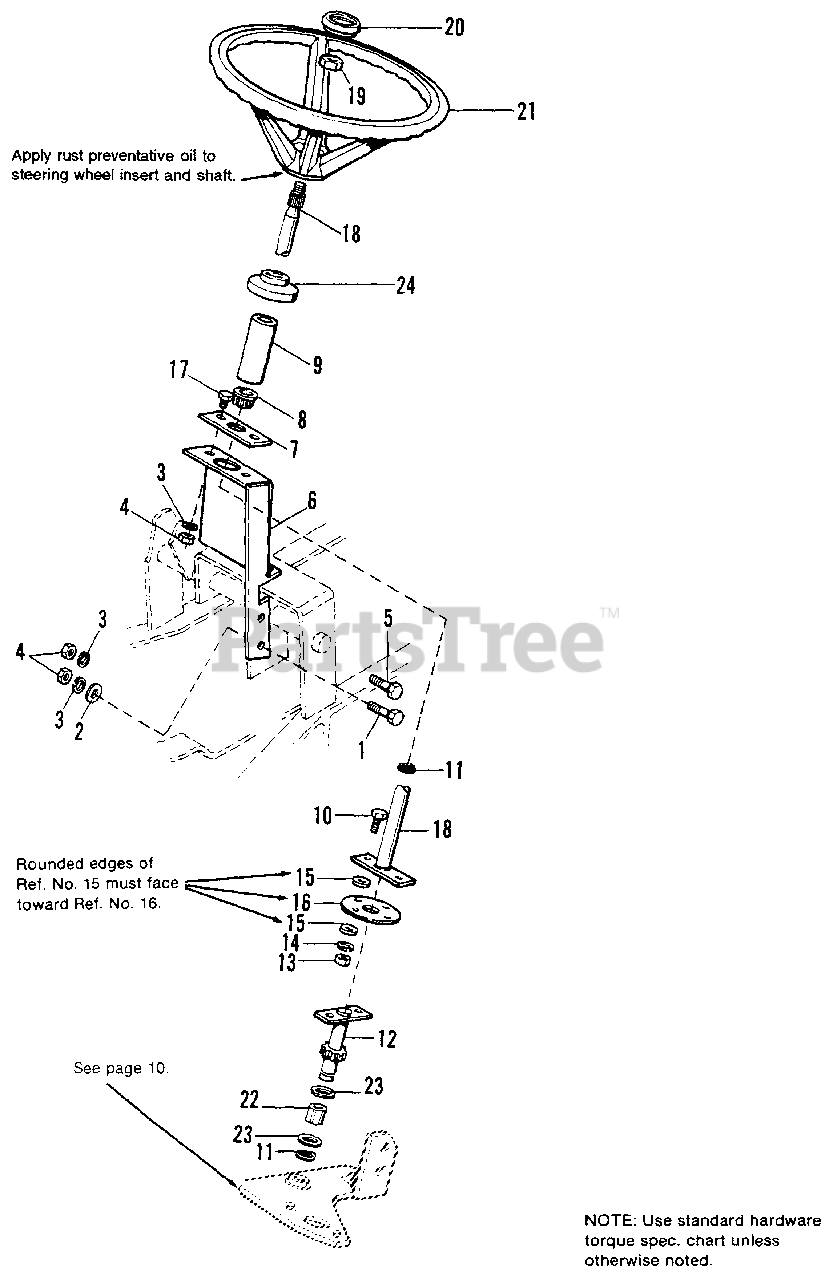

Steering Group - Mechanical - Mfg No 1691017 Diagram 2 Parts Diagram

  • Title

1

Simplicity 1920415SM

CAPSCREW, Hex Hd., 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

2

Simplicity 1919326SM

WASHER, Plain, 5/16

$4.49

$

In Stock, Qty 6

0

3

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

4

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

5

Simplicity 1921210SM

CAPSCREW, Hex Hd., 3/8-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

6

Simplicity 1675995

BRACKET ASSY., Steering

$

$

Not available

7

Simplicity 1675998

PLATE, Steering

$

$

Not available

8

Simplicity 2157077SM

BUSHING, Steering

$140.99

$

Usually ships in 2-12 days

0

9

Simplicity 1677936SM

TUBE, Steering Hub

$4.49

$

Usually ships in 2-12 days

0

10

Simplicity 1921965SM

CAPSCREW, Hex Hd., 3/8-16 x 3/4
(Superseded to 703237)

$4.99

$

Usually ships in 2-12 days

0

11

Simplicity 2827732SM

RING, RETAINING, 3/8
(Superseded to 703979)

$4.49

$

In Stock, Qty 10

0

12

Simplicity 1676010

SHAFT, Pinion & Coupling, Lower Steering

$

$

Not available

13

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

14

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

15

Simplicity 1919381SM

WASHER, Plain, 5/16
(Superseded to 703298)

$4.49

$

Usually ships in 2-12 days

0

16

Simplicity 1676014

DISC

$

$

Not available

17

Simplicity 1921333SM

CAPSCREW, Hex Hd., 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

18

Simplicity 1677938

SHAFT & COUPLING ASSY.

$

$

Not available

19

Simplicity 1922014SM

NUT, Hex, Jam, 5/8-18
(Superseded to 703904)

$4.99

$

In Stock, Qty 18

0

20

Simplicity 1657017SM

CAP, Steering Wheel

$

$

Not available

21

Simplicity 1676468SM

WHEEL ASSY., Steering

$

$

Not available

22

Simplicity 1676018SM

BUSHING

$11.99

$

Usually ships in 2-12 days

0

23

Simplicity 2860231

WASHER, Thrust, 49/64 x 1-3/8 x 1/16

$

$

Not available

24

Simplicity 1676418SM

BOOT, Steering Stem

$6.99

$

In Stock, only 1 left!

0
