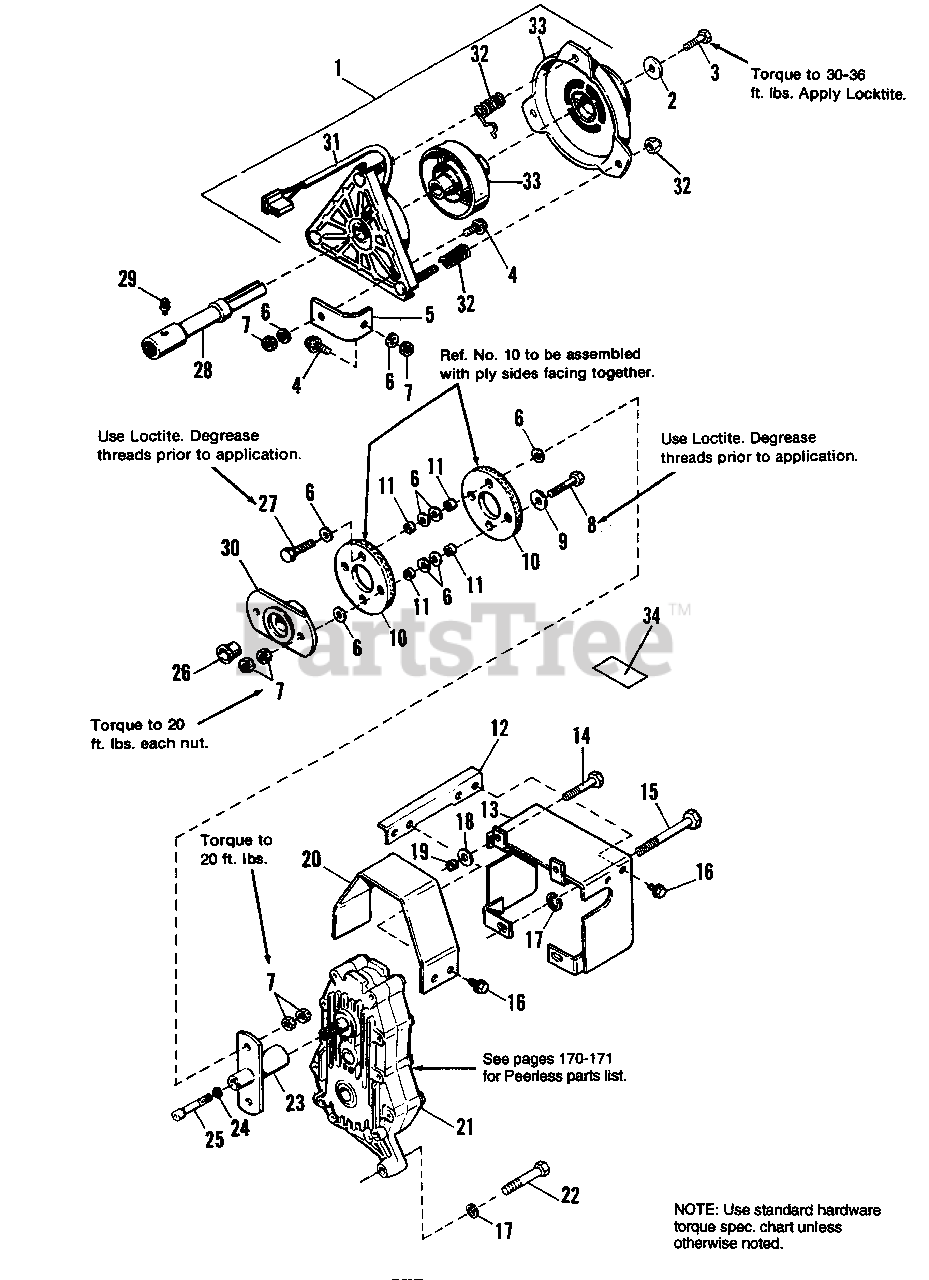

1691010 - Simplicity Rear PTO, 2000 RPM Rear P.T.O. (2000 RPM) (Early Models) Parts Diagram

Rear PTO, 2000 RPM

Rear P.T.O. (2000 RPM) (Early Models) Parts Diagram

  • Title

1

Simplicity 1685493SM

CLUTCH, Electric

Note: (Incl. Ref. Nos. 31-34)

$

$

Not available

2

Simplicity 1960534SM

WASHER

$

$

Not available

3

Simplicity 1921210SM

CAPSCREW, Hex Hd., 3/8-16 x 1, Gr. 5
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

4

Simplicity 1930591SM

CAPSCREW, Whizlock, 5/16-18 x 3/4, Gr. 5
(Superseded to 703354)

$5.49

$

In Stock, Qty 14

0

5

Simplicity 1685494

TORQUE STRAP KIT

$

$

Not available

6

Simplicity 1919326SM

WASHER, Plain, 5/16

$4.49

$

In Stock, Qty 8

0

7

Simplicity 1923362SM

NUT, Hex, Centerlock, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 19

0

8

Simplicity 1921978SM

CAPSCREW, Hex Head 5/16-18 x 2 G5
(Superseded to 703867)

$4.99

$

In Stock, only 4 left!

0

9

Simplicity 1933468SM

WASHER, Plain, 5/16 x 1-1/2 x 9/64

$4.49

$

Usually ships in 2-12 days

0

10

Simplicity 1676829SM

COUPLING, Flex

$27.99

$

Usually ships in 2-12 days

0

11

Simplicity 2156150SM

SPACER

$11.99

$

Usually ships in 2-12 days

0

12

Simplicity 1679997

SUPPORT, P.T.O. Guard

$

$

Not available

13

Simplicity 1700010SM

GUARD ASSY., P.T.O.

$

$

Not available

14

Simplicity 1921978SM

CAPSCREW, Hex Head 5/16-18 x 2 G5
(Superseded to 703867)

$4.99

$

In Stock, only 4 left!

0

15

Simplicity 1926158SM

CAPSCREW, Hex Hd., 1/2-13 x 4, Gr. 8

$6.99

$

In Stock, only 1 left!

0

16

Simplicity 1924856SM

CAPSCREW, Washer Hd., Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

17

Simplicity 1916966SM

LOCKWASHER, 1/2
(Superseded to 703341)

$4.49

$

In Stock, only 1 left!

0

18

Simplicity 1919326SM

WASHER, , Plain, 5/16

$4.49

$

In Stock, Qty 8

0

19

Simplicity 1675481SM

SPACER

$

$

Not available

20

Simplicity 1679998SM

GUARD, Disc.

$51.99

$

Usually ships in 2-12 days

0

21

GEAR BOX, 2000 RPM (Peerless)

$

$

Not available

22

Simplicity 1927469SM

CAPSCREW, Hex Hd., 1/2-13 x 2-1/4, Gr. 8

$3.49

$

Usually ships in 2-12 days

0

23

Simplicity 1709982SM

ADAPTER ASSY.

$66.99

$

Usually ships in 2-12 days

0

24

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

25

Simplicity 1960292SM

CAPSCREW, Hex Hd, 5/16-24 x 2-1/4

$9.49

$

Usually ships in 2-12 days

0

26

Simplicity 1676998SM

BUSHING

$4.49

$

Usually ships in 2-12 days

0

27

Simplicity 1921221SM

CAPSCREW, Hex Hd., 5/16-18 x 1-1/2, Gr. 5
(Superseded to 703906)

$4.99

$

In Stock, only 4 left!

0

28

Simplicity 1679710SM

SHAFT ASSY.

$

$

Not available

29

Simplicity 2813958

FITTING, Grease w/Ball

$

$

Not available

30

Simplicity 1676999SM

HUB ASSY.

$119.99

$

Usually ships in 2-12 days

0

31

Simplicity 1679101

FIELD ASSY.

$

$

Not available

32

Simplicity 1679104SM

ACCESSORY KIT

Note: (3 Springs & 3 Nuts)

$12.99

$

Usually ships in 2-12 days

0

33

Simplicity 1685489

ROTOR, ARMATURE & BRAKE ASSY.

$

$

Not available

34

Simplicity 1679155

DECAL, Rear P.T.O.

$

$

Not available
