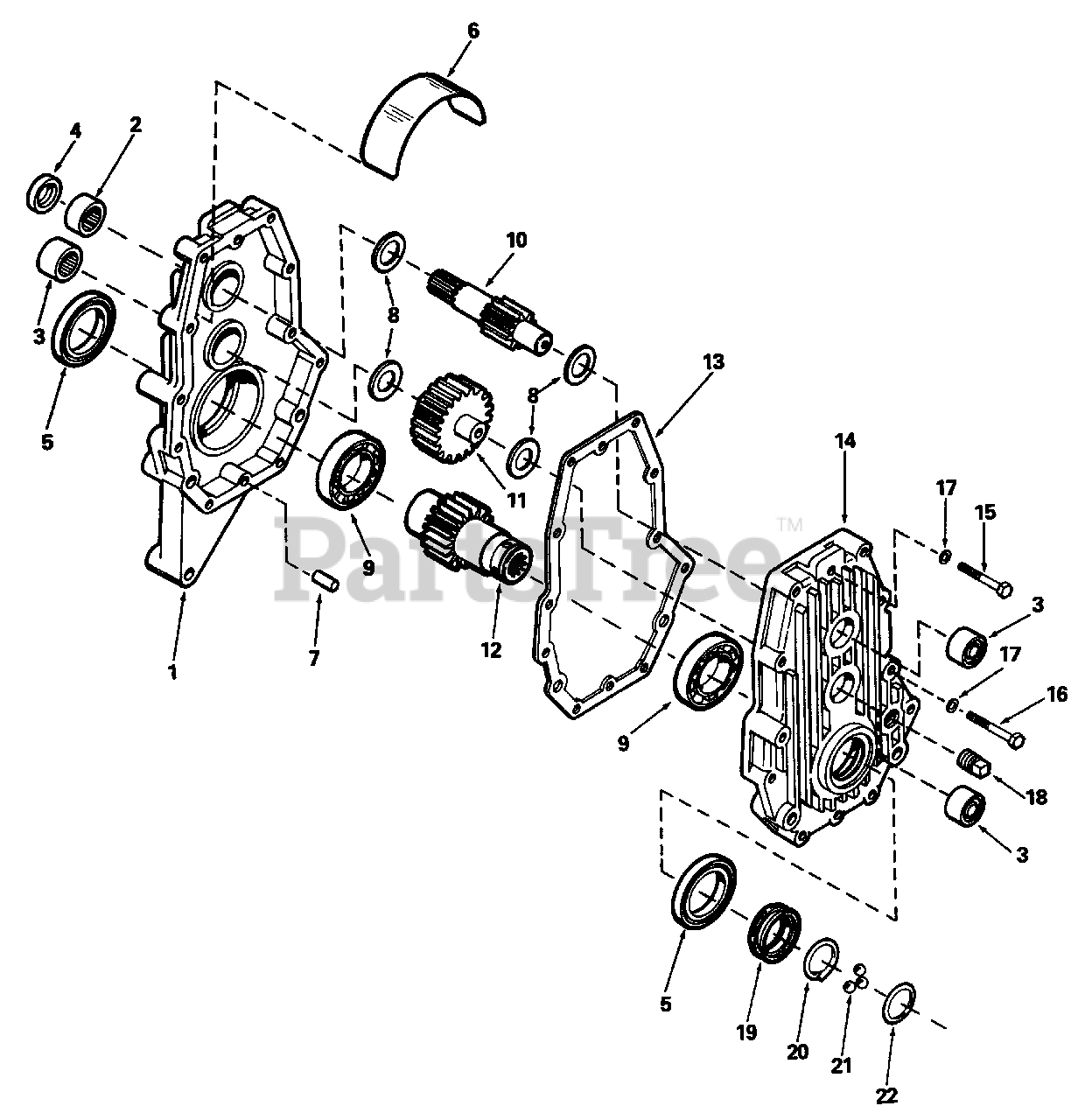

1691010 - Simplicity Rear PTO, 2000 RPM Peerless Gearbox Model 2800-003 Parts Diagram

Rear PTO, 2000 RPM

Peerless Gearbox Model 2800-003 Parts Diagram

  • Title

1

Simplicity 770074

CASE ASSY.

Note: (Incl. Ref. Nos. 2 & 3)

$85.99

$

Usually ships in 2-12 days

0

2

Simplicity 780074

BEARING, Cartridge

$

$

Not available

3

Simplicity 780049

BEARING, Cartridge

$

$

Not available

4

Simplicity 788031

SEAL, Oil

$

$

Not available

5

Simplicity 788060

SEAL, Oil

$

$

Not available

6

Simplicity 786099

BAFFLE

$

$

Not available

7

Simplicity 786026

PIN, Dowel

$

$

Not available

8

Simplicity 780128

WASHER, Thrust

$3.49

$

Usually ships in 2-12 days

0

9

Simplicity 780125

BEARING, Ball

$

$

Not available

10

Simplicity 776215A

PINION, Input

$

$

Not available

11

Simplicity 778164

GEAR, Idler

$

$

Not available

12

Simplicity 776216

SHAFT, Output

$

$

Not available

13

Simplicity 788059

GASKET

$

$

Not available

14

Simplicity 772088

COVER ASSY.

Note: (Incl. Ref. No. 3)

$304.99

$

Usually ships in 2-12 days

0

15

Simplicity 650692

SCREW, Hex Hd., 5/16-18 x 1-3/4

$

$

Not available

16

Simplicity 792104

SCREW, Hex Hd., 5/16-18 x 2

$

$

Not available

17

Simplicity 792029

LOCKWASHER, 5/16

$

$

Not available

18

Simplicity 792019

PLUG, Magnetic Drain

$4.99

$

Usually ships in 2-12 days

0

19

Simplicity 786100

COLLAR

$

$

Not available

20

Simplicity 792107

RING, Retaining

$

$

Not available

21

Simplicity 792105

BALL, Steel, 3/8

$28.99

$

In Stock, Qty 20+

0

22

Simplicity 792106

RING, Retaining

$

$

Not available
