1690990 - Simplicity Vacuum Collector Vacuum Collector, Drive Group Parts Diagram

Vacuum Collector

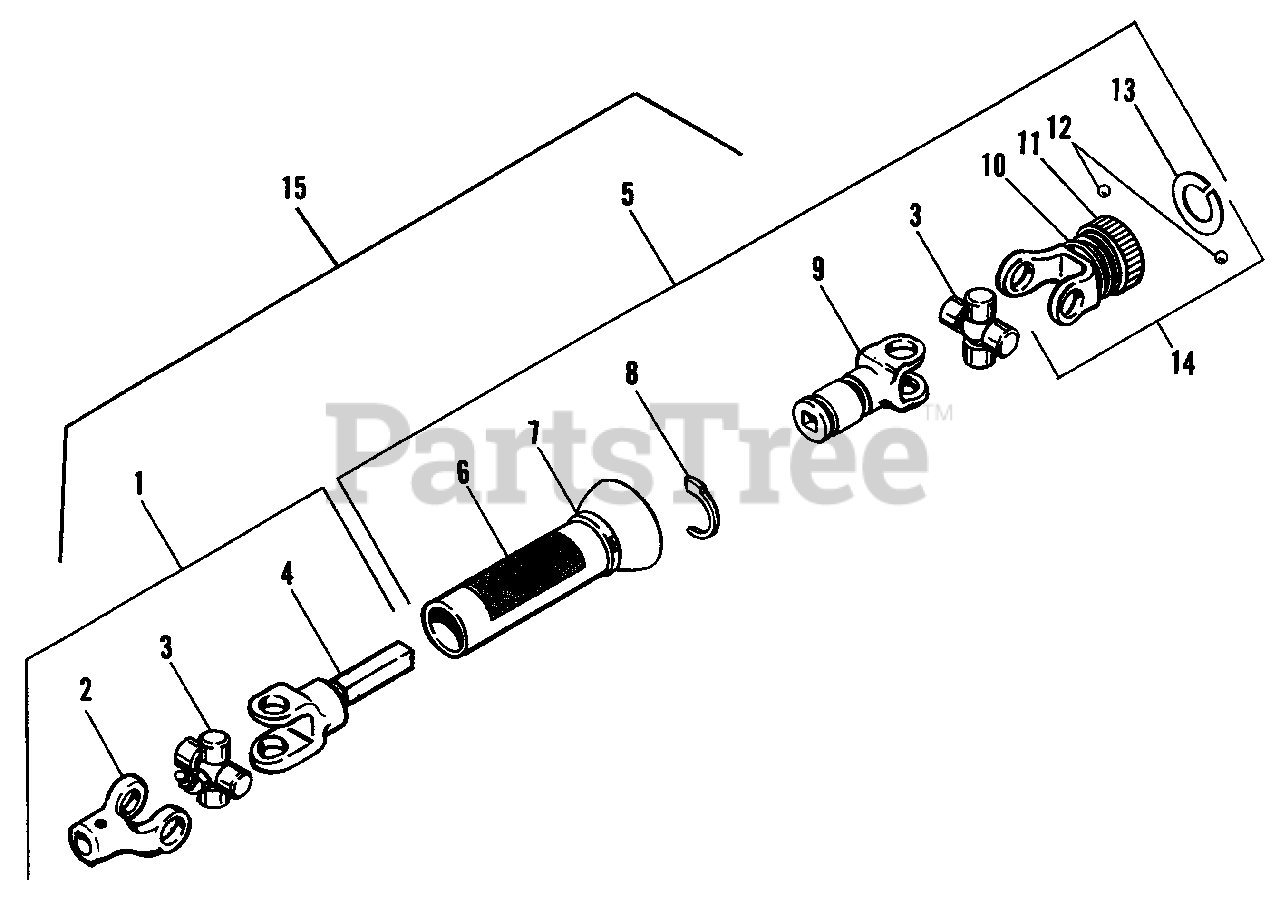

Vacuum Collector, Drive Group Parts Diagram

  • Title

1

Simplicity 1679594

YOKE & SHAFT ASSY.

Note: (Incl. Ref. Nos. 2, Qty. 1 of 3, & 4)

$

$

Not available

2

Simplicity 1679594

YOKE

$

$

Not available

3

Simplicity 1678805SM

JOURNAL ASSY.

$

$

Not available

4

Simplicity 1679594

YOKE & SHAFT

$

$

Not available

5

Simplicity 1678944

SLIP YOKE ASSY., w/Shield

Note: (Incl. Qty. 1 of Ref. No. 3 & Ref. Nos 6-14.)

$

$

Not available

6

Simplicity 1679461SM

DECAL, Shield

$9.99

$

Usually ships in 2-12 days

0

7

Simplicity 1678867

SHIELD

$

$

Not available

8

Simplicity 1678827SM

BEARINGS

$3.49

$

Usually ships in 2-12 days

0

9

Simplicity 1678944

SLIP YOKE ASSY.

$

$

Not available

10

Simplicity 1702432SM

SPRING

$7.49

$

Usually ships in 2-12 days

0

11

Simplicity 1678802SM

SLIDE LOCK

$20.99

$

Usually ships in 2-12 days

0

12

Simplicity 1678804SM

BALLS

$2.99

$

Usually ships in 2-12 days

0

13

Simplicity 1679531SM

SNAP RING

$5.99

$

Usually ships in 2-12 days

0

14

Simplicity 1678801

YOKE ASSY.

Note: (Incl. Ref. Nos. 10-13)

$

$

Not available

15

Simplicity 1679594

COMPLETE DRIVE SHAFT ASSY.

$

$

Not available
