1690989 - Simplicity 38" Tiller Attachment 38" Tiller - Frame, Deflector & Tine Group Parts Diagram

38" Tiller Attachment

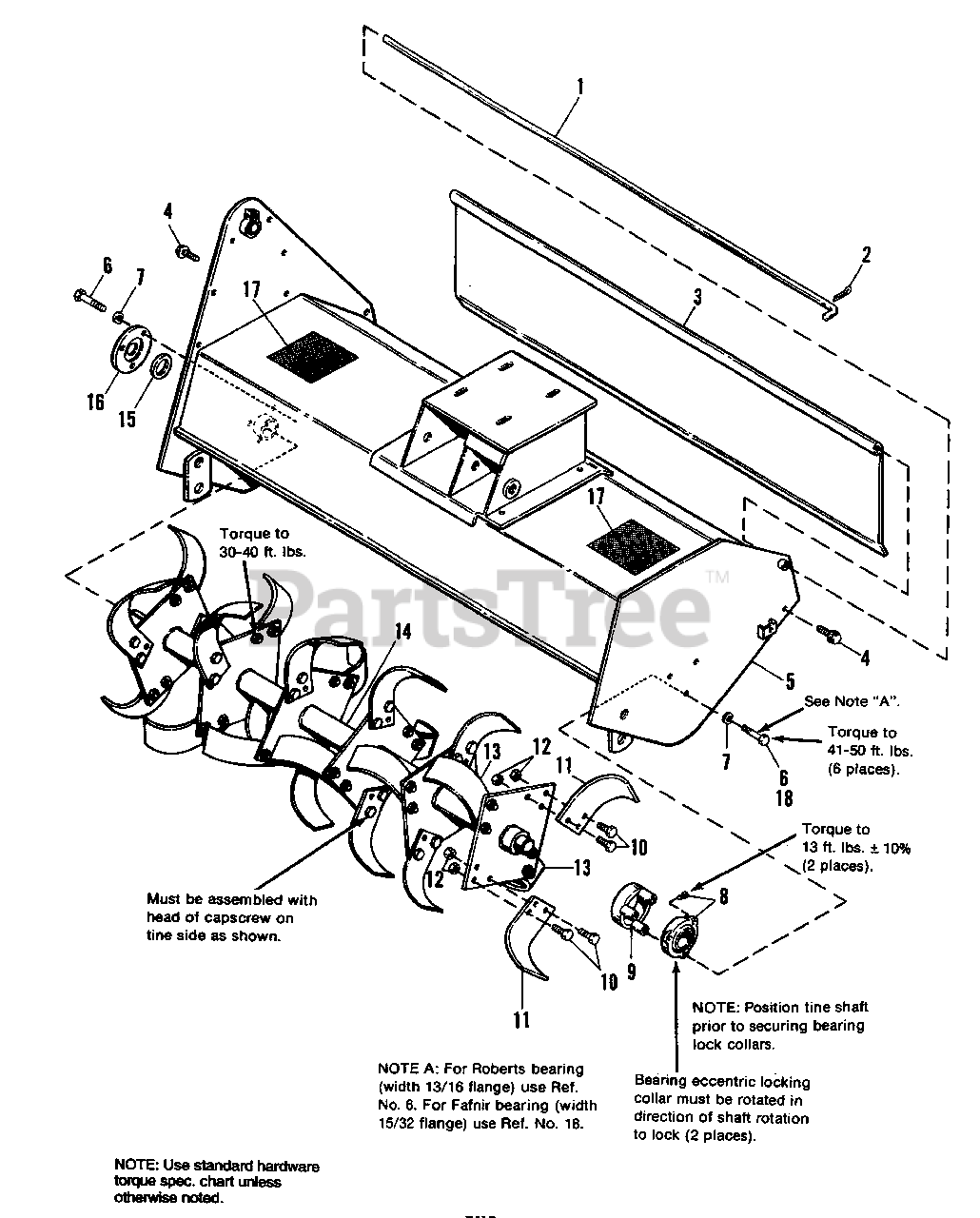

38" Tiller - Frame, Deflector & Tine Group Parts Diagram

  • Title

1

Simplicity 1657389SM

ROD, Deflector

$46.99

$

Usually ships in 2-12 days

0

2

Simplicity 1918448SM

PIN, Cotter, 3/32 x 1

$4.49

$

Usually ships in 2-12 days

0

3

Simplicity 1657384A

DEFLECTOR

$

$

Not available

4

Simplicity 1928635SM

SCREW, Thd. Form., Taptite, 3/8-16 x 1-1/4

$3.49

$

Usually ships in 2-12 days

0

5

Simplicity 1685387

HOUSING ASSY.

$

$

Not available

6

Simplicity 1922606SM

CAPSCREW, Hex Head, 3/8-16 x 1-3/4

Note: (Used with Roberts bearing only); Torque to 41 - 50 ft. lbs.

$4.99

$

In Stock, Qty 13

0

7

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

8

Simplicity 1685396SM

FLANGE, Bearing Kit

Note: (Incl. Ref. No. 9); Torque to 13 ft. lbs. ± 10%

$

$

Not available

9

Simplicity 1703932A

GUARD ASSY., Trash

$

$

Not available

10

Simplicity 1923490SM

CAPSCREW, Hex Hd., 3/8-16 x 1

Note: Torque to 30 - 40 ft. lbs.

$3.49

$

Usually ships in 2-12 days

0

11

Simplicity 2172512SM

TINE, LH.
(Superseded to 2172512ASM)

$34.99

$

In Stock, Qty 20+

0

12

Simplicity 1930645SM

LOCKNUT, Hex, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

13

Simplicity 2172511SM

TINE, R.H.
(Superseded to 2172511ASM)

$34.99

$

In Stock, Qty 20+

0

14

Simplicity 1657400ASM

SHAFT ASSY., Tine

$678.99

$

Usually ships in 2-12 days

0

15

Simplicity 2172458SM

SEAL

$

$

Not available

16

Simplicity 2172507A

RETAINER, Seal

$

$

Not available

17

Simplicity 1679700SM

DECAL, Danger

$18.99

$

Usually ships in 2-12 days

0

18

Simplicity 1922605SM

CAPSCREW, Hex Hd., 3/8-16 x 1-1/4
(Superseded to 703969)

Note: (Used with Fafnir bearing.); Torque to 41 - 50 ft. lbs.

$4.99

$

Usually ships in 2-12 days

0
