1690989 - Simplicity 38" Tiller Attachment 38" Tiller - Chain & Cover Group Parts Diagram

38" Tiller Attachment

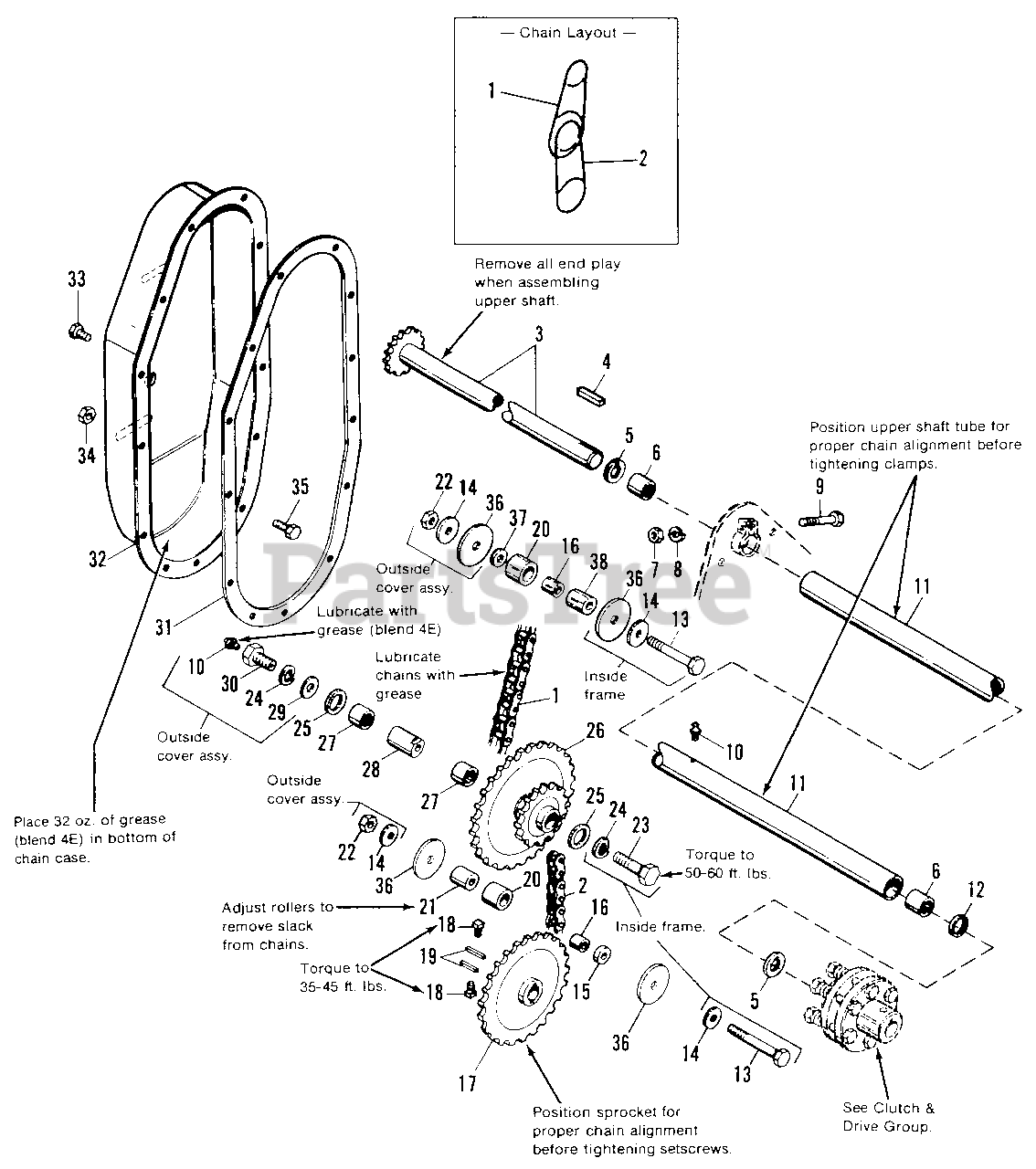

38" Tiller - Chain & Cover Group Parts Diagram

  • Title

1

Simplicity 172496

CHAIN, Roller

Note: (upper-31-1/4") (1690989 only)

$

$

Not available

1

Simplicity 1703624SM

CHAIN, Roller

Note: (upper-#50, 27-1/2") (1691735 only)

$53.99

$

Usually ships in 2-12 days

0

2

Simplicity 2172497SM

CHAIN, Roller

Note: (lower-30")

$133.99

$

Usually ships in 2-12 days

0

3

Simplicity 1678856SM

SHAFT & SPROCKET ASSY.

$216.99

$

Usually ships in 2-12 days

0

4

Simplicity 2805123SM

KEY
(Superseded to 7010211YP)

$3.49

$

In Stock, Qty 17

0

5

Simplicity 1729259SM

WASHER

$5.99

$

In Stock, Qty 7

0

6

Simplicity 2172747SM

BEARING, Needle

$13.99

$

Usually ships in 2-12 days

0

7

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

8

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

9

Simplicity 1921221SM

CAPSCREW, Hex, 5/16-18 x 1-1/2
(Superseded to 703906)

$4.99

$

In Stock, only 4 left!

0

10

Simplicity 2812808SM

FITTING, Grease

$4.49

$

In Stock, Qty 20+

0

11

Simplicity 1678855SM

HOUSING ASSY.

Note: (Incl. Ref. No. 6 & Ref. No. 12)

$84.99

$

Usually ships in 2-12 days

0

12

Simplicity 1669372SM

SEAL, Shaft Assy.

$

$

Not available

13

Simplicity 1922648SM

CAPSCREW, Hex Hd., 3/8-16 x 4
(Superseded to 703875)

$4.99

$

Usually ships in 2-12 days

0

14

Simplicity 1924356SM

WASHER, Special, 13/32 x 1-1/2
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

15

Simplicity 2172454SM

SPACER

$

$

Not available

16

Simplicity 2170369SM

SPACER, Chain Roller

$

$

Not available

17

Simplicity 2172777SM

SPROCKET ASSY.

Note: (Single Gear Plate)

$284.99

$

Usually ships in 2-12 days

0

18

Simplicity 1930536SM

SETSCREW, Sq. Hd., 3/8-16 x 3/4

$3.99

$

Usually ships in 2-12 days

0

19

Simplicity 2172669SM

KEY

$

$

Not available

20

Simplicity 2170177SM

ROLLER, Chain

$9.49

$

Usually ships in 2-12 days

0

21

Simplicity 2172453SM

SPACER

$45.99

$

Usually ships in 2-12 days

0

22

Simplicity 1930645SM

LOCKNUT, Hex, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

23

Simplicity 1929528SM

CAPSCREW, Hex Hd., 1/2-20 x 1

$4.49

$

In Stock, only 1 left!

0

24

Simplicity 1916966SM

LOCKWASHER, 1/2
(Superseded to 703341)

$4.49

$

In Stock, only 1 left!

0

25

Simplicity 2860208SM

WASHER

$4.99

$

Usually ships in 2-12 days

0

26

Simplicity 2172774SM

SPROCKET ASSY.

Note: (2 Gear Plates)

$

$

Not available

27

Simplicity 2105195SM

BEARING

$34.99

$

In Stock, only 1 left!

0

28

Simplicity 2172456SM

SPACER

$

$

Not available

29

Simplicity 1918431SM

WASHER, 1/2
(Superseded to 704011)

$4.49

$

In Stock, Qty 11

0

30

Simplicity 2105132SM

BOLT, Side R.H.

$18.99

$

Usually ships in 2-12 days

0

31

Simplicity 2172482SM

GASKET

$47.99

$

Usually ships in 2-12 days

0

32

Simplicity 1657551

COVER ASSY.

Note: (1690989 only)

$

$

Not available

32

Simplicity 1703643A

COVER ASSY.

Note: (1691735 only)

$

$

Not available

33

Simplicity 1924856SM

SCREW, Hex Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

34

Simplicity 1923362SM

LOCKNUT, Hex, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 18

0

35

Simplicity 1925205SM

CAPSCREW, Hex Hd., 5/16-18 x 5/8
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

36

Snapper 2860188SM

WASHER

$45.99

$

In Stock, only 1 left!

0

37

Simplicity 2157424SM

WASHER, Special, 3/8 x 1

$7.49

$

In Stock, Qty 5

0

38

Simplicity 2172452SM

SPACER

$20.99

$

Usually ships in 2-12 days

0
