1690984 - Simplicity 60" Mower Deck 60" Mower, Housing & Cover Group Parts Diagram

60" Mower Deck

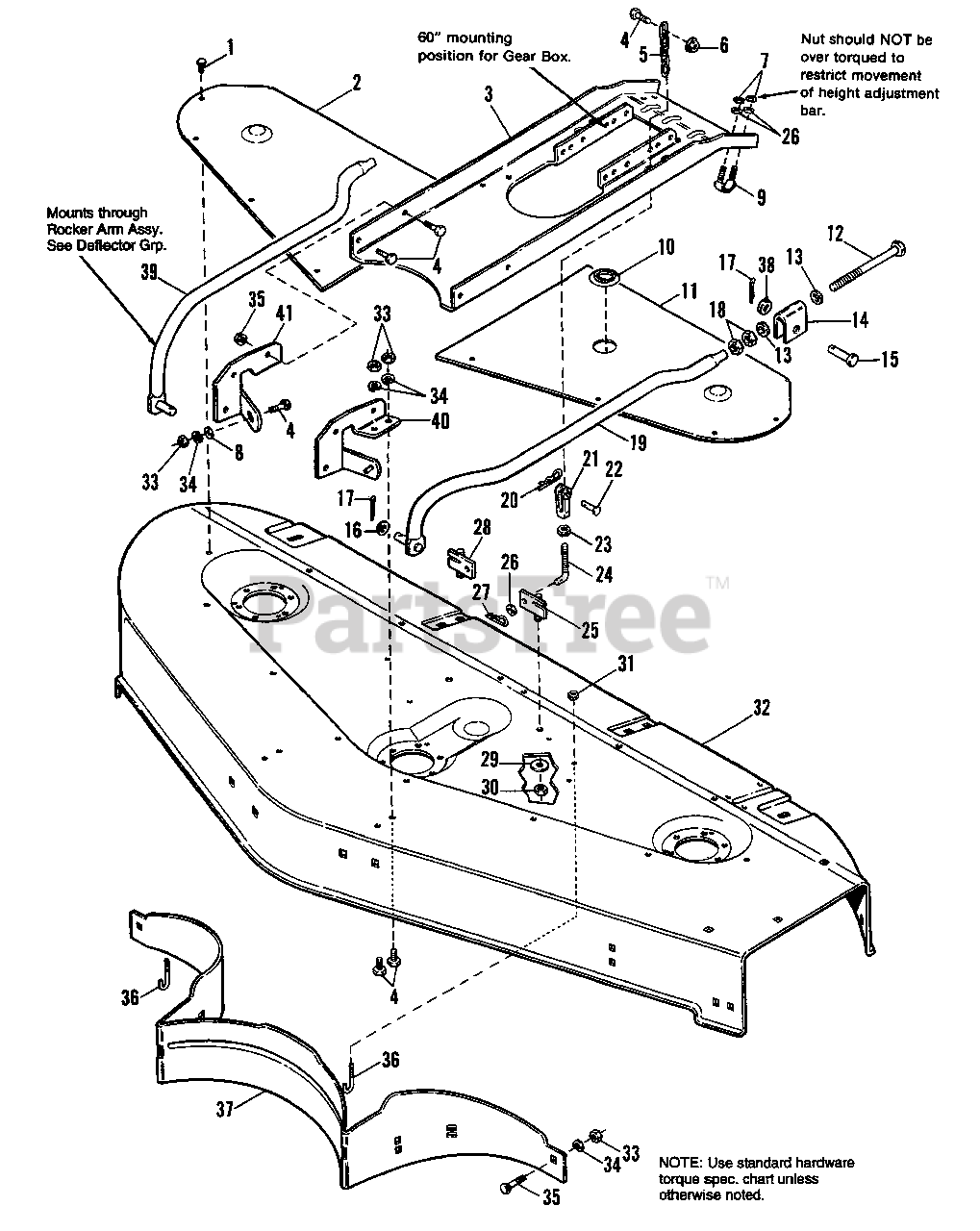

60" Mower, Housing & Cover Group Parts Diagram

  • Title

1

Simplicity 1929000SM

SCREW, Hex, Taptite 1/4-20 x 3/8
(Superseded to 703583)

$4.99

$

In Stock, Qty 20+

0

2

Simplicity 1676125CSM

COVER, Mower, R.H.

$

$

Not available

3

Simplicity 1678181ASM

SUPPORT, "U" Channel

$

$

Not available

4

Simplicity 1921210SM

CAP SCREW, Hex Hd., 3/8-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

5

Simplicity 2107031SM

CHAIN, 5 Link
(Superseded to 2107031ASM)

Note: (Used with 23" Tires)

$7.49

$

In Stock, only 2 left!

0

5

Simplicity 1708266ASM

CHAIN, 6 Link

Note: (Used with 26" Tires)

$9.99

$

Usually ships in 2-12 days

0

6

Simplicity 1930645SM

NUT, Hex, Flange lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

7

Simplicity 1923362SM

NUT, Centerlock, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 19

0

8

Simplicity 1924940SM

WASHER, 13/32
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

9

Simplicity 1678103SM

CLAMP, "U"

$29.99

$

Usually ships in 2-12 days

0

10

Simplicity 1674020SM

PLUG, Mower Cover, L.H.

$4.49

$

In Stock, Qty 7

0

11

Simplicity 1676126

COVER, Mower, L.H.

$

$

Not available

12

Simplicity 1960150SM

CAPSCREW, Hex, 5/8-18 x 5-1/2

$14.99

$

Usually ships in 2-12 days

0

13

Simplicity 1924366SM

WASHER, 5/8
(Superseded to 703580)

$4.49

$

In Stock, Qty 20+

0

14

Simplicity 1677182SM

TRUNNION
(Superseded to 1677182ASM)

$8.49

$

Usually ships in 2-12 days

0

15

Simplicity 1960064SM

PIN, Trunnion
(Superseded to 7012751YP)

$

$

Not available

16

Simplicity 1960020SM

WASHER, 5/8

$4.49

$

In Stock, Qty 20+

0

17

Simplicity 1918452SM

PIN, Cotter, 1/8-1
(Superseded to 703795)

$5.99

$

In Stock, only 1 left!

0

18

Simplicity 1922014SM

NUT, Hex, Jam, 5/8-18
(Superseded to 703904)

$4.99

$

In Stock, Qty 18

0

19

Simplicity 1677174SM

Arm ASSY., L.H.

$

$

Not available

20

Simplicity 1960074SM

CLIP, Hair Pin
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

21

Simplicity 1673575SM

CLEVIS, Lift

$

$

Not available

22

Simplicity 1655651SM

PIN, Rivet, Clevis
(Superseded to 1733568SM)

$6.99

$

In Stock, only 2 left!

0

23

Simplicity 1920161SM

NUT, Hex, Jam, 5/16-18

$4.49

$

In Stock, only 2 left!

0

24

Simplicity 1686676SM

ROD, Bolt

$

$

Not available

25

Simplicity 1686676SM

BRACKET ASSY., Lift L.H.

$

$

Not available

26

Simplicity 1919326SM

WASHER, Plain, 5/16 x 3/4 x 1/16

$4.49

$

In Stock, Qty 8

0

27

Simplicity 1960221SM

CLIP, Hair Pin
(Superseded to 704039)

$4.49

$

In Stock, Qty 9

0

28

Simplicity 1686676SM

BRACKET ASSY., Lift, R.H.

$

$

Not available

29

Simplicity 1924356SM

WASHER, Plain, 13/32 x 1-1/2 x 1/8
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

30

Simplicity 1930645SM

NUT, Hex, Centerlock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

31

Simplicity 1923362SM

NUT, Hex, Centerlock, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 19

0

32

Simplicity 1685285

HOUSING, 60" Mower

Note: (Incl. Safety Decals).1685285 is an orange deck, 71685285 is a green deck

$

$

Not available

33

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

34

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

35

Simplicity 1931211SM

NUT, Hex, Whizlock 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

36

Simplicity 1679385SM

"J" HOOK

$9.99

$

In Stock, only 2 left!

0

37

Simplicity 1676020SM

BAFFLE, Mower
(Superseded to 1702412ASM)

$866.99

$

Usually ships in 2-12 days

0

38

Simplicity 1924361SM

WASHER, Plain, 17/32
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

39

Simplicity 1677175SM

ARM ASSY., R.H.

$

$

Not available

40

Simplicity 1676040ASM

BRACKET ASSY., L.H.

$

$

Not available

41

Simplicity 1676039ASM

BRACKET ASSY., R.H.

$

$

Not available
