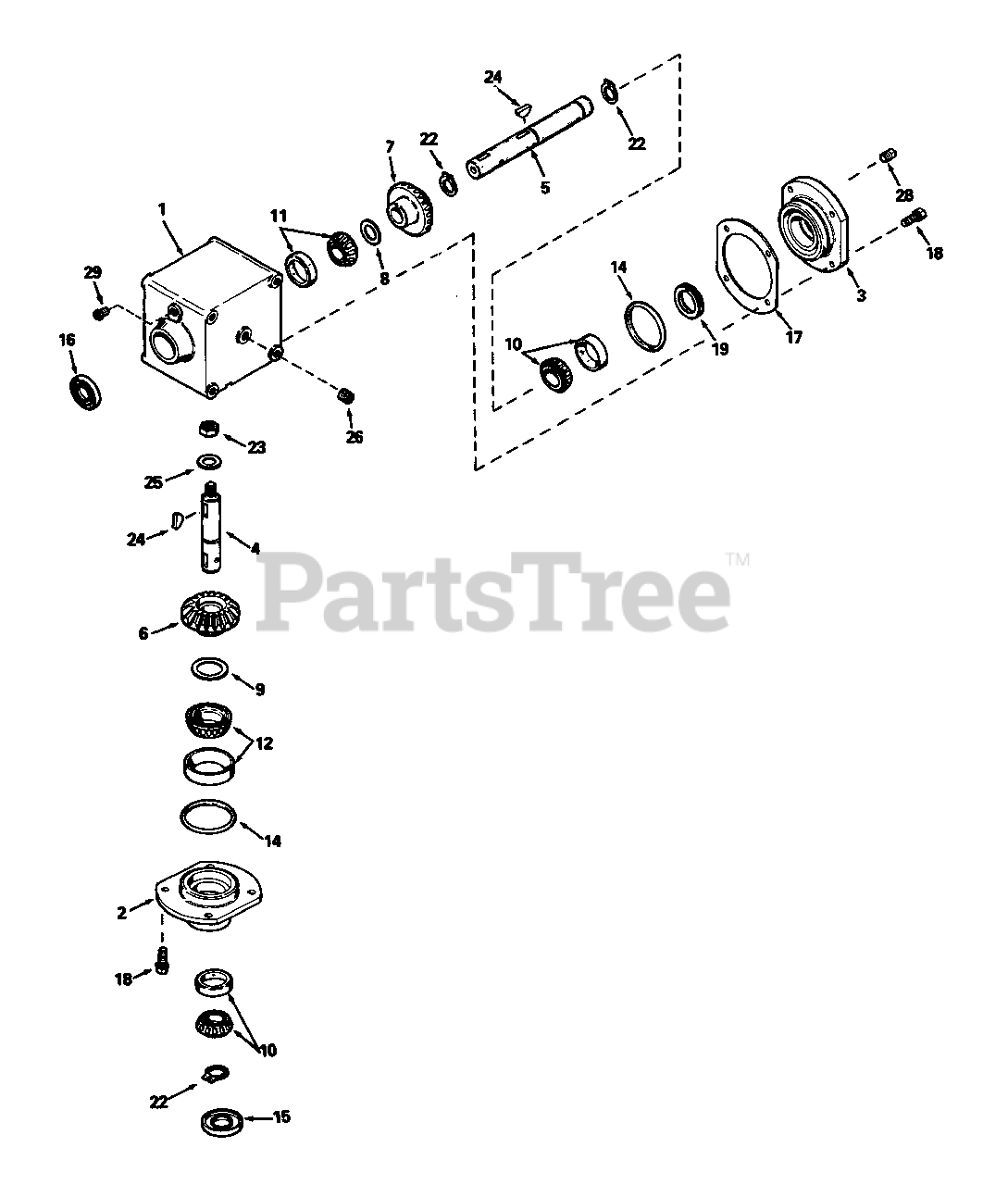

1690982 - Simplicity 42" Snow Thrower Attachment Right Angle Gear Box - Peerless Parts Diagram

42" Snow Thrower Attachment

Right Angle Gear Box - Peerless Parts Diagram

  • Title

1

Simplicity 770076

HOUSING, Right Angle Drive

$69.99

$

Usually ships in 2-12 days

0

2

Simplicity 786104A

CAP, Retainer

$

$

Not available

3

Simplicity 786106

CAP, Retainer

$

$

Not available

4

Simplicity 776221

SHAFT, Input

$

$

Not available

5

Simplicity 776223

SHAFT, Output

$

$

Not available

6

Simplicity 778224

GEAR, Bevel

Note: (26 Teeth)

$

$

Not available

7

Simplicity 778223

GEAR, Bevel

Note: (25 Teeth)

$

$

Not available

8

Simplicity 780131

SHIM (1-1/2" OD x 1-1/64" ID x .002 Thick)

Note: (Use as required.)

$

$

Not available

9

Simplicity 780138

SHIM (2.000" OD x 1.531" ID x .002 Thick)

Note: (Use as required.)

$

$

Not available

10

Simplicity 780132

BEARING & CUP ASSY.

Note: This assembly may have a shim washer included. The shim washer is not required at this location.

$

$

Not available

11

Simplicity 780132

BEARING & CUP ASSY.

Note: This is a factory sized assembly and may or may not include Ref. No. 8 shim washer. lf Ref. No. 8 shim washer is supplied, it must be used on this location. All old shim washers must be discarded.

$

$

Not available

12

Simplicity 780134

BEARING & CUP ASSY.

Note: This is a factory sized assembly and may or may not include Ref. No. 9 shim washer. lf Ref. No. 9 shim washer is included, it must be used in this location. All old shim washers must be discarded.

$

$

Not available

14

Simplicity 788063

"O" RING

$

$

Not available

15

Simplicity 788064

SEAL, Oil

$

$

Not available

16

Simplicity 788065

SEAL, Oil

$

$

Not available

17

Simplicity 780136

SHIM, Cap Retainer

$

$

Not available

18

Simplicity 792037

SCREW, Hex Hd., Sems, 5/16-18 x 1

$

$

Not available

19

Simplicity 780137

RING, Load

$15.99

$

Usually ships in 2-12 days

0

22

Simplicity 792113

RING, Retaining

$

$

Not available

23

Simplicity 792110

JAM NUT, 3/4-16

$

$

Not available

24

Simplicity 792114

KEY, Woodruff

$

$

Not available

25

Simplicity 792115

WASHER, Flat

$

$

Not available

26

Simplicity 792116

PLUG, Pipe, 1/4-18

$

$

Not available

28

Simplicity 792039

PLUG, Pipe

$

$

Not available

29

Simplicity 792118

VALVE, Relief
(Superseded to 594539)

$90.99

$

Usually ships in 2-12 days

0
