1690982 - Simplicity 42" Snow Thrower Attachment 42" Snowthrower, Spout Group Parts Diagram

42" Snow Thrower Attachment

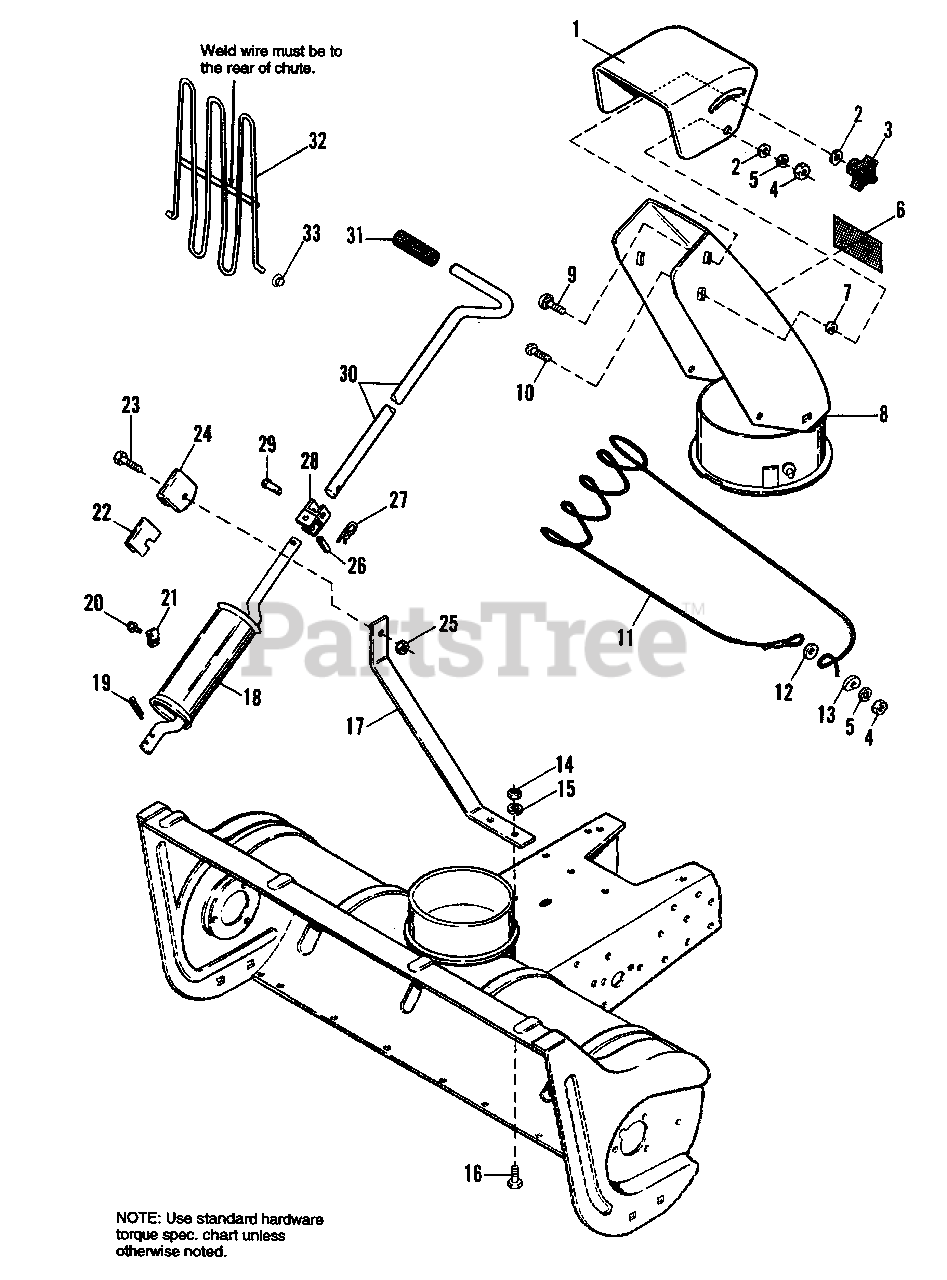

42" Snowthrower, Spout Group Parts Diagram

  • Title

1

Simplicity 1667791A

DEFLECTOR
(Superseded to 1667791ASM)

$37.99

$

Usually ships in 2-12 days

0

2

Simplicity 1919326SM

WASHER, 11/32 Std.

$4.49

$

In Stock, Qty 9

0

3

Simplicity 1670578SM

KNOB

$13.99

$

Usually ships in 2-12 days

0

4

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 1917356SM

WASHER, Spring Lock, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 1722674SM

DECAL, Danger, Blower

$14.99

$

Usually ships in 2-12 days

0

7

Simplicity 1667790SM

SPACER

$13.99

$

Usually ships in 2-12 days

0

8

Simplicity 1704294ASM

CHUTE ASSY.

$162.99

$

Usually ships in 2-12 days

0

9

Simplicity 1931335SM

BOLT, Carriage, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 12

0

10

Simplicity 1936482SM

SCREW, Truss, Phil. Hd., 5/16-18 x 3/4

$2.99

$

Usually ships in 2-12 days

0

11

Simplicity 2171362SM

CABLE ASSY.

$29.99

$

In Stock, only 1 left!

0

12

Simplicity 1919326SM

WASHER, 5/16 Std.

$4.49

$

In Stock, Qty 9

0

13

Simplicity 2171379SM

WASHER, Cup

$5.49

$

Usually ships in 2-12 days

0

14

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

Usually ships in 2-12 days

0

15

Simplicity 1916965SM

LOCKWASHER, 3/8 Std.
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

16

Simplicity 1921210SM

CAPSCREW, Hex Hd., 3/8-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

17

Simplicity 1679013SM

BRACE, Handle

$

$

Not available

18

Simplicity 1676885SM

SPOUT CONTROL ASSY.

$53.99

$

Usually ships in 2-12 days

0

19

Simplicity 1918447SM

PIN, Cotter, 3/32 x 3/4
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

20

Simplicity 1929000SM

SCREW, Hex, Taptite, 1/4 x 3/8
(Superseded to 703583)

$4.99

$

In Stock, Qty 20+

0

21

Simplicity 2171382SM

CLAMP

$3.49

$

Usually ships in 2-12 days

0

22

Simplicity 2121175SM

LINER

$7.99

$

Usually ships in 2-12 days

0

23

Simplicity 1921221SM

CAPSCREW, Hex Hd, 5/16-18 x 1-1/2
(Superseded to 703906)

$4.99

$

In Stock, only 4 left!

0

24

Simplicity 2152050SM

ROD GUIDE

$9.49

$

Usually ships in 2-12 days

0

25

Simplicity 1923362SM

NUT, Hex, Lock, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 20+

0

26

Simplicity 2816169SM

PIN, Spring, 3/16 x 3/4

$4.49

$

Usually ships in 2-12 days

0

27

Simplicity 1960221SM

RN, Hair
(Superseded to 704039)

$4.49

$

In Stock, Qty 9

0

28

Simplicity 1676817SM

"U" JOINT ASSY.

$

$

Not available

29

Simplicity 1676883SM

PIN
(Superseded to 703313)

$4.99

$

In Stock, Qty 6

0

30

Simplicity 1676880SM

HANDLE, Pivot

$207.99

$

Usually ships in 2-12 days

0

31

Simplicity 2176933SM

GRIP, Handle

$3.49

$

In Stock, only 1 left!

0

32

Simplicity 1704446SM

GUARD ASSY., Chute

$22.99

$

Usually ships in 2-12 days

0

33

Simplicity 2171382SM

PUSH NUT

$3.49

$

Usually ships in 2-12 days

0
