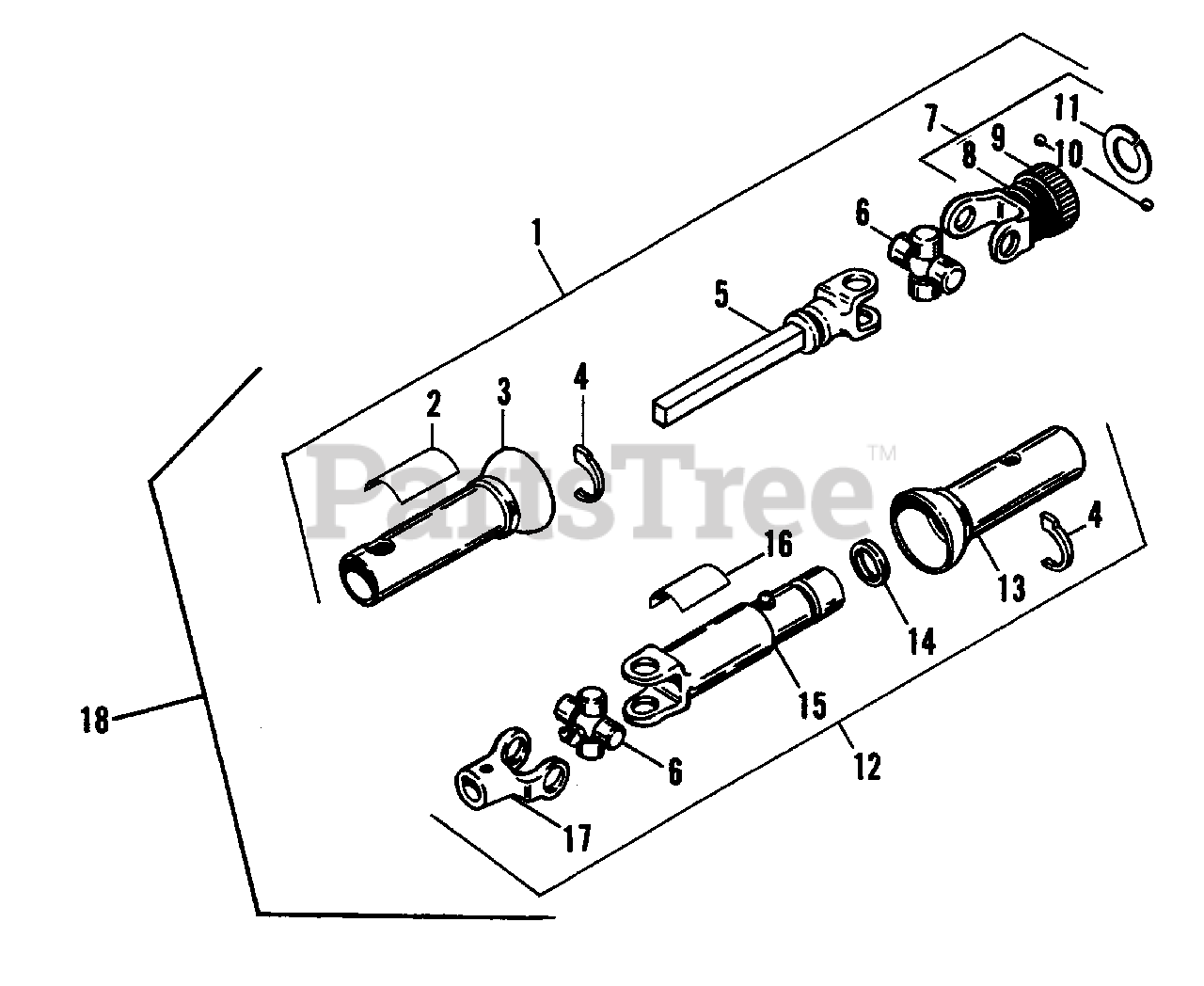

1690982 - Simplicity 42" Snow Thrower Attachment 42" & 46" Snowthrower, Drive Shaft Parts Diagram

42" Snow Thrower Attachment

42" & 46" Snowthrower, Drive Shaft Parts Diagram

  • Title

1

Simplicity 1717484SM

DRIVE SHAFT ASSY., Tractor Half

Note: (Incl Ref. Nos. 2, 3, Qty. 2 of 4, 5, Qty 1 of Nos. 6, 7-11.)

$638.99

$

Usually ships in 2-12 days

0

2

Simplicity 1679461SM

SHIELD DECAL

$9.99

$

Usually ships in 2-12 days

0

3

Simplicity 1685392SM

SHIELD, Outer

$

$

Not available

4

Simplicity 1679459SM

BEARINGS

$5.99

$

In Stock, only 2 left!

0

5

Simplicity 1678822SM

YOKE & SHAFT ASSY.

$107.99

$

Usually ships in 2-12 days

0

6

Simplicity 1678805SM

JOURNAL ASSY.

$

$

Not available

7

Simplicity 1678801

YOKE ASSY.

Note: (Incl. Ref. Nos. 8-11, 28-31.)

$

$

Not available

8

Simplicity 1702432SM

SPRING

$7.49

$

Usually ships in 2-12 days

0

9

Simplicity 1678802SM

SLIDELOCK

$20.99

$

Usually ships in 2-12 days

0

10

Simplicity 1678804SM

BALLS

$2.99

$

Usually ships in 2-12 days

0

11

Simplicity 1679531SM

SNAP RING

$5.99

$

Usually ships in 2-12 days

0

12

Simplicity 1678823SM

DRIVE SHAFT ASSY.-Implement Half

Note: (Incl. Ref. Nos., Qty. 4 of 4, Qty. 1 of 6, & 13-17.)

$341.99

$

Usually ships in 2-12 days

0

13

Simplicity 1685393SM

SHIELD, Inner

$

$

Not available

14

Simplicity 1679460SM

NYLON BEARING

$5.49

$

Usually ships in 2-12 days

0

15

Simplicity 1717484SM

YOKE & TUBE ASSY.

$638.99

$

Usually ships in 2-12 days

0

16

Simplicity 1678829

DANGER LABEL

$

$

Not available

17

Simplicity 1678807SM

YOKE

$72.99

$

Usually ships in 2-12 days

0

18

Simplicity 1717484SM

COMPLETE Drive ASSY

$638.99

$

Usually ships in 2-12 days

0
