1690822 - Simplicity Deluxe Grass Catcher for 30" Mower Deluxe Grass Catcher - Tube & Blade Group Parts Diagram

Deluxe Grass Catcher for 30" Mower

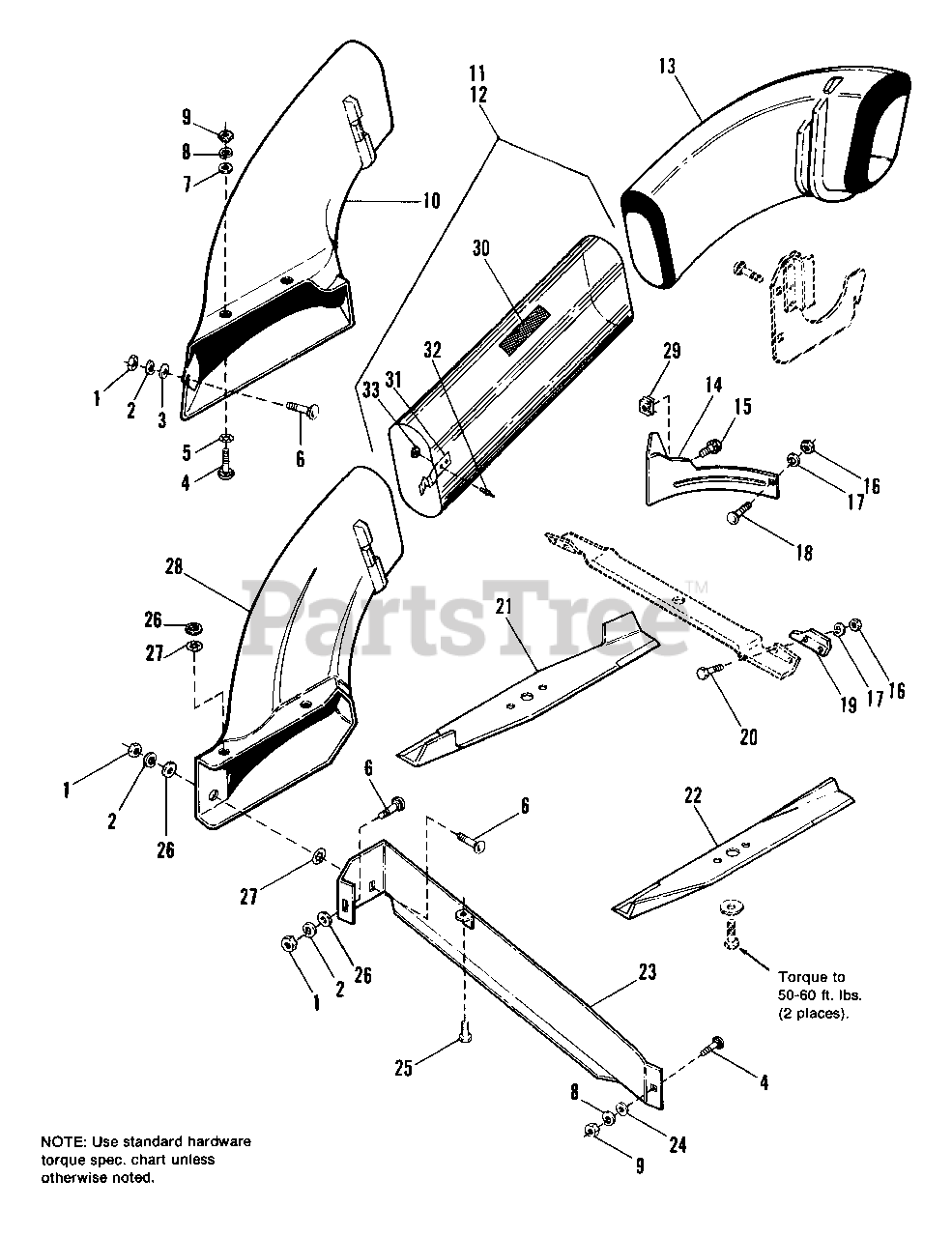

Deluxe Grass Catcher - Tube & Blade Group Parts Diagram

  • Title

1

Simplicity 1916950SM

NUT, Hex, 3/8-16 (Qty 1 on 1690822)
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

2

Simplicity 1916965SM

LOCKWASHER, 3/8 (Qty.1 on 1690822)
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

3

Simplicity 1922755SM

WASHER, 13/32 x 1 (1690822 Only)
(Superseded to 704128)

$4.99

$

In Stock, Qty 11

0

4

Simplicity 1931334SM

BOLT, Carriage, 5/16-18 x 7/8
(Superseded to 704065)

$4.49

$

In Stock, Qty 5

0

5

Simplicity 1933988SM

NUT, Push On (1690822 only)
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

6

Simplicity 1931348SM

BOLT, Carriage, 3/8-16 x 3/4 (Qty.1 on 1690822)
(Superseded to 703448)

$4.49

$

In Stock, Qty 20+

0

7

Simplicity 1960044SM

WASHER (1690822 only)

$4.49

$

In Stock, only 3 left!

0

8

Simplicity 1917356SM

LOCKWASHER, 5/16 (Qty.1 on 1690820)
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

9

Simplicity 1917372SM

NUT, Hex, 5/16-18 (Qty.1 on 1690820)
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

10

Simplicity 1673202SM

ADAPTOR ASSY. (1690822 only)

$

$

Not available

11

Simplicity 1673683SM

TUBE ASSY. (1690820 only) (Incl. Ref. Nos. 30-33)

$

$

Not available

12

Simplicity 1673681SM

TUBE ASSY. (1689822 only) (Incl. Ref. Nos. 30-33)

$

$

Not available

13

Simplicity 1669793SM

ELBOW

$113.99

$

Usually ships in 2-12 days

0

14

Simplicity 1672171A

BAFFLE, Deflector, Side (1690820 only)

$

$

Not available

15

Simplicity 1931646SM

SCREW, Whizlock,1/4-20 x 1/2 (1690820 only)

$4.49

$

In Stock, only 2 left!

0

16

Simplicity 1916622SM

NUT, Hex, 1/4-20 (Qty.1 on 1690820)
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

17

Simplicity 1916964SM

LOCKWASHER, 1/4 (Qty.1 on 1690820)
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

18

Simplicity 1960252SM

BOLT, Carriage, 1/4-20 x 5/8 (1690820 only)

$3.99

$

In Stock, only 1 left!

0

19

Simplicity 1665419ASM

PLATE, Lift (1690822 only)

$24.99

$

Usually ships in 2-12 days

0

20

Simplicity 1935105SM

CAPSCREW, 1/4-20 x 5/8 (1690822 only)

$6.99

$

Usually ships in 2-12 days

0

21

Simplicity 1671565ASM

BLADE, R.H. Side (1690820 only)
(Superseded to 1726357ASM)

$27.99

$

In Stock, Qty 20+

0

22

Simplicity 1671593ASM

BLADE, L.H. Side (1690820 only)

$

$

Not available

23

Simplicity 1656053ASM

BAFFLE ASSY., Discharge (1690820 only)

$84.99

$

Usually ships in 2-12 days

0

24

Simplicity 1921319SM

LOCKWASHER, 1/4 (1690820 only)
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

25

Simplicity 1924856SM

SCREW, Taptite, 5/16-18 x 1/2 (1690820 only)
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

26

Simplicity 1924940SM

WASHER, 3/8 (1690820 only)
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

27

Simplicity 1931942SM

NUT, Push On (1690820 only)
(Superseded to 703986)

$4.49

$

Usually ships in 2-12 days

0

28

Simplicity 1705085SM

ADAPTOR (1690820 only)

$109.99

$

Usually ships in 2-12 days

0

29

Simplicity 1920462

NUT, Retainer, 1/4-20 (1690820 only)

$

$

Not available

30

Simplicity 1675766SM

DECAL, Cleaning Instructions.

$

$

Not available

31

Simplicity 1673757

SPRING, Retaining, Tube

$

$

Not available

32

Simplicity 2828706

RIVET, Tube

$

$

Not available

33

Simplicity 2810531

WASHER, Rivet

$

$

Not available
