1690822 - Simplicity Deluxe Grass Catcher for 30" Mower Deluxe Grass Catcher - Shield & Misc. Group Parts Diagram

Deluxe Grass Catcher for 30" Mower

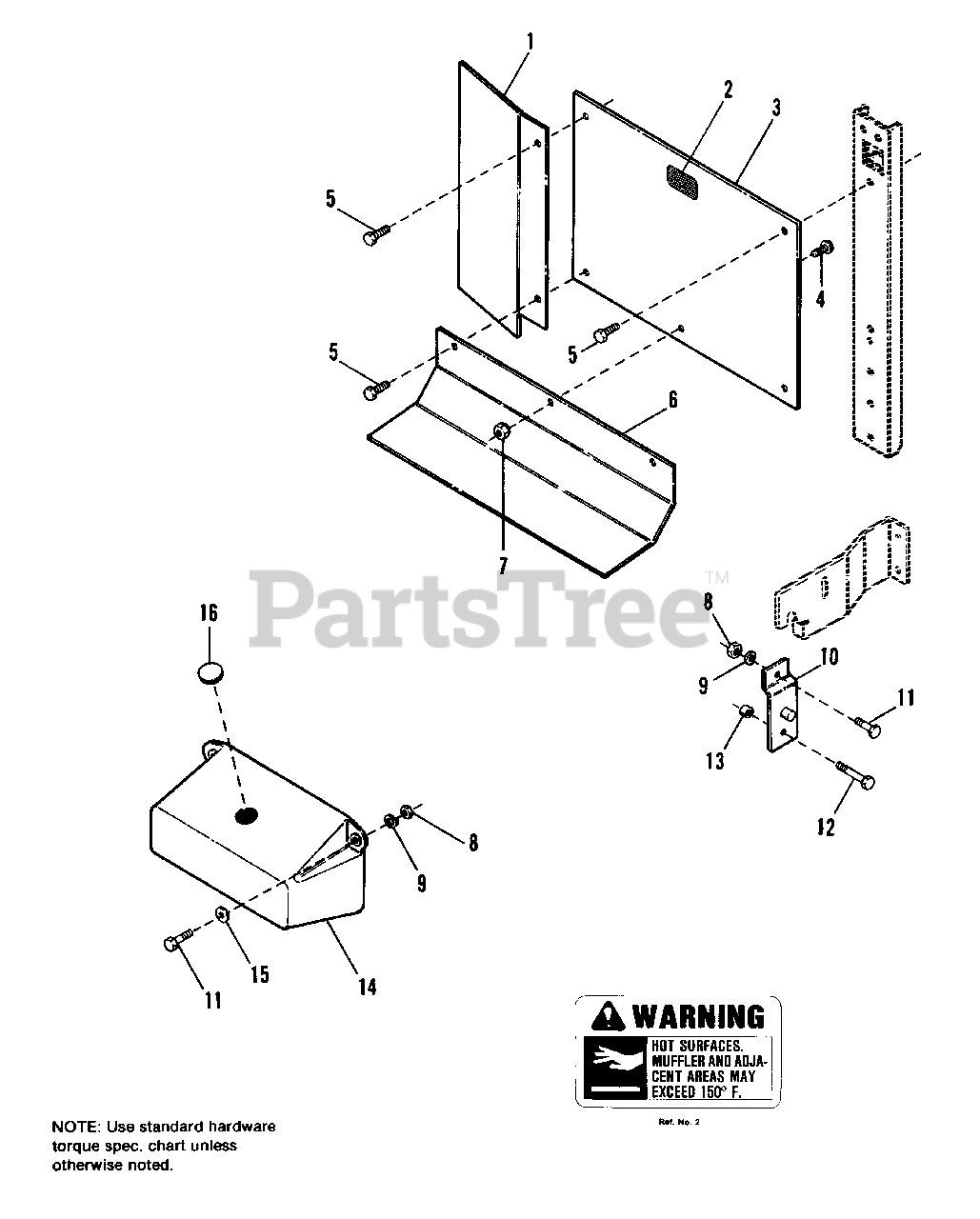

Deluxe Grass Catcher - Shield & Misc. Group Parts Diagram

  • Title

1

Simplicity 1672652

HEAT DEFLECTOR, Side

$

$

Not available

2

Simplicity 1676920

DECAL, Hot Surface

$

$

Not available

3

Simplicity 1672587

HEAT DEFLECTOR, Side

$

$

Not available

4

Simplicity 1930531SM

SCREW, Truss Heat Head, 10-32

$4.49

$

In Stock, only 2 left!

0

5

Simplicity 1924856SM

SCREW, Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

6

Simplicity 1672588

HEAT DEFLECTOR, Lower

$

$

Not available

7

Simplicity 1928919SM

NUT, Hex Head, 10-32

$3.99

$

In Stock, Qty 5

0

8

Simplicity 1917372SM

NUT, Hex Head, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

9

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

10

Simplicity 1673075

SUPPORT ASSEMBLY

$

$

Not available

11

Simplicity 1921333SM

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

12

Simplicity 1921221SM

CAPSCREW, Hex Head, 5/16-18 x 1-1/2
(Superseded to 703906)

$4.99

$

In Stock, only 4 left!

0

13

Simplicity 1665699SM

SPACER

$7.49

$

Usually ships in 2-12 days

0

14

Simplicity 1666739

COUNTERWEIGHT

$

$

Not available

15

Simplicity 1919381SM

WASHER
(Superseded to 703298)

$4.49

$

Usually ships in 2-12 days

0

16

Simplicity 1674020SM

PLUG, Hole

$4.49

$

In Stock, Qty 7

0
