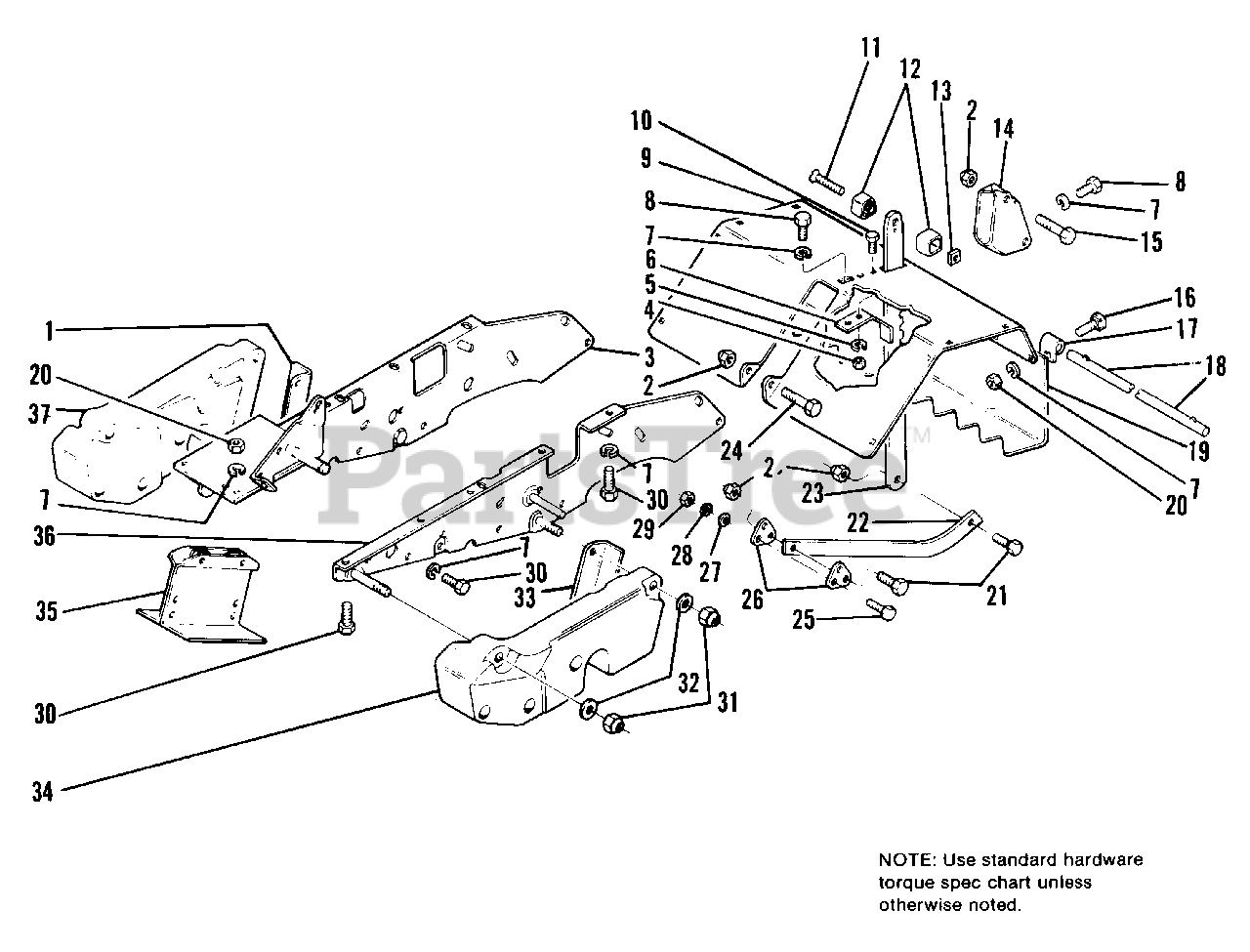

1690804 - Simplicity Rear-Tine Tiller, 5hp Frame and Tine Shield - S/N 4004-C1-501 and Above Parts Diagram

Rear-Tine Tiller, 5hp

Frame and Tine Shield - S/N 4004-C1-501 and Above Parts Diagram

  • Title

1

Simplicity 1671811

HANGER-Rear R.H.

$

$

Not available

2

Simplicity 2823362

NUT, Hex Cone Lock 5/16-18 Plated

$

$

Not available

3

Simplicity 1671808

FRAME ASSEMBLY-R.H.

$

$

Not available

4

Simplicity 2816622SM

NUT, Hex 1/4-20 Plated
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 2816964SM

WASHER, Spring Lock 1/4 Plated
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

6

Simplicity 1673930

LEAF SPRING-Depth Control

$

$

Not available

7

Simplicity 1917356SM

WASHER, Spring Lock 5/16 Plated
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

8

Simplicity 2819317

CAP SCREW, Hex Hd. 5/16-18 x 1/2 Plated, Grade 5

$

$

Not available

9

Simplicity 1673931

TINE SHIELD & DECAL ASSEMBLY

$

$

Not available

10

Simplicity 2821958

CAP SCREW, Hex Hd. 1/4-20 x 1/2 Plated, Grade 5

$

$

Not available

11

Simplicity 922703

MACHINE SCREW, Slotted Flat Hd. 5/16-18 x 2" Plated

$

$

Not available

12

Simplicity 1671810

HANDLE

$

$

Not available

13

Simplicity 936716

NUT, Square 5/16-18 Plated

$

$

Not available

14

Simplicity 1671823

SUPPORT ASSEMBLY

$

$

Not available

15

Simplicity 2821160

CAP SCREW, Hex Hd. 5/16-18 x 2 1/4 Plated, Grade 5

$

$

Not available

16

Simplicity 2831333

BOLT, Carriage 5/16-18 x 3/4 Plated

$

$

Not available

17

Simplicity 1671925

HINGE

$

$

Not available

18

Simplicity 1671786

ROD

$

$

Not available

19

Simplicity 1671818

GUARD ASSEMBLY

$

$

Not available

20

Simplicity 1917372SM

NUT, Hex 5/16-18 Plated
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

21

Simplicity 2821221

CAP SCREW, Hex Hd. 5/16-18 x 1 1/4 Plated, Grade 5

$

$

Not available

22

Simplicity 1674450

SKID

$

$

Not available

23

Simplicity 1674451

DEPTH CONTROL

$

$

Not available

24

Simplicity 2821719SM

CAP SCREW, Hex Hd. 5/16-18 x 2 1/2 Plated, Grade 5

$2.99

$

Usually ships in 2-12 days

0

25

Simplicity 910168

CAP SCREW, Socket Hd. 10-24 x 1" Plated, Grade 5

$

$

Not available

26

Simplicity 1671826

LUG

$

$

Not available

27

Simplicity 1671819

WASHER

$

$

Not available

28

Simplicity 2822711

WASHER, Lock External Tooth #10, Plated

$

$

Not available

29

Simplicity 2816621

NUT, Hex #10-24 Plated

$

$

Not available

30

Simplicity 2825205

CAP SCREW, Hex Hd., 5/16-18 x 5/8 Plated, Grade 5

$

$

Not available

31

Simplicity 1930645SM

NUT, Hex Cone Lock 3/8-16 Plated
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

32

Simplicity 2156065

WASHER, Flat SAE 3/8 Plated

$

$

Not available

33

Simplicity 1671812

HANGER-Rear-L.H.

$

$

Not available

34

Simplicity 1671815

COUNTERWEIGHT-L.H.

$

$

Not available

35

Simplicity 1671824

SUPPORT ASSEMBLY-Counterweight

$

$

Not available

36

Simplicity 1671809

FRAME ASSEMBLY-L.H.

$

$

Not available

37

Simplicity 1671814

COUNTERWEIGHT-R.H.

$

$

Not available
