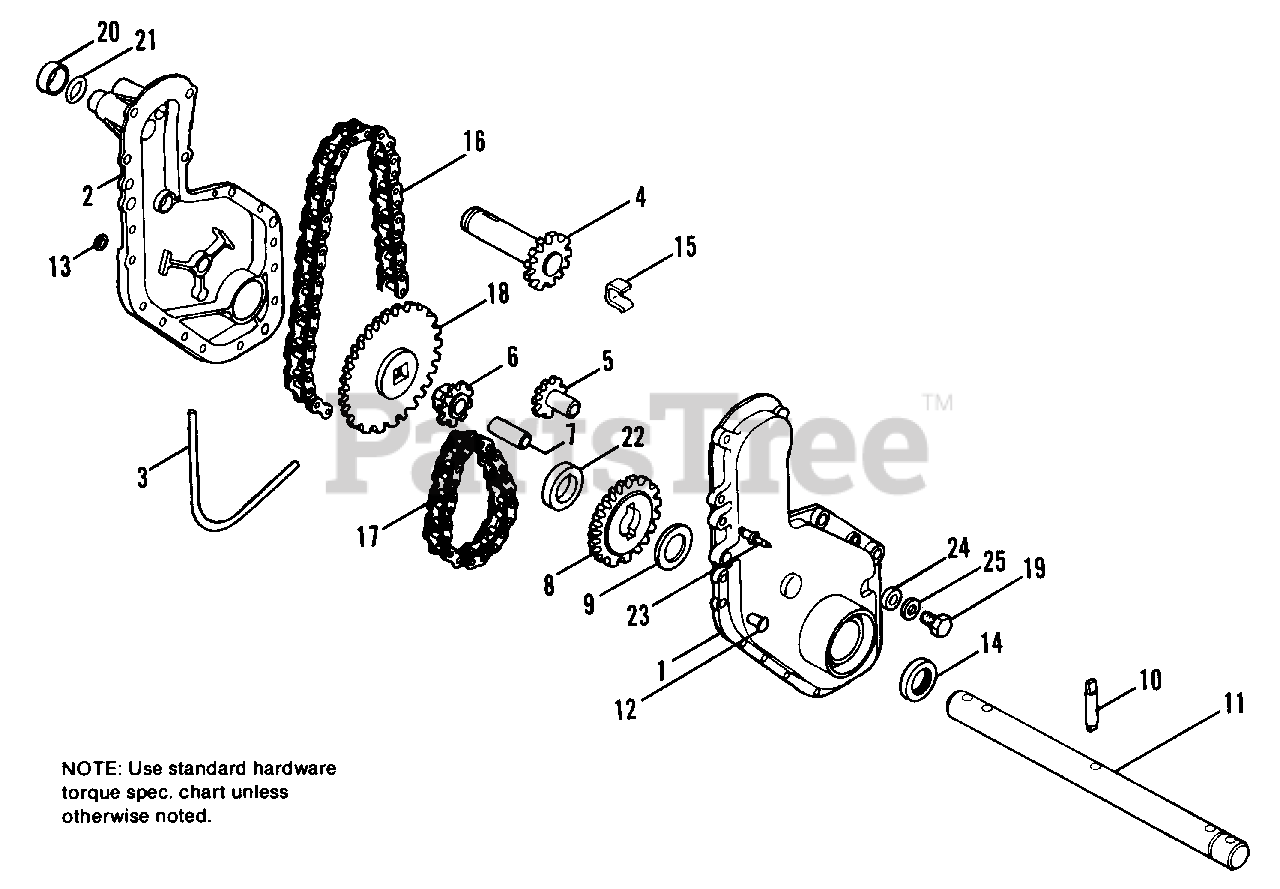

1690803 - Simplicity Rear-Tine Tiller, 5hp Traction Drive Chain Case Parts Diagram

Rear-Tine Tiller, 5hp

Traction Drive Chain Case Parts Diagram

  • Title

1

Simplicity 1671828

CHAIN CASE-R.H.

$

$

Not available

2

Simplicity 1671829

CHAIN CASE-L.H. w/Bearing

$

$

Not available

3

Simplicity 1671826

GASKET

$

$

Not available

4

Simplicity 1671830

INPUT SHAFT ASSEMBLY

$

$

Not available

5

Simplicity 1671831

IDLER SPROCKET-9 Tooth

$

$

Not available

6

Simplicity 1671832

SPROCKET-10 Tooth

$

$

Not available

7

Simplicity 1671833

SHAFT-Sprocket

$

$

Not available

8

Simplicity 1671836

SPROCKET-27 Tooth

$

$

Not available

9

Simplicity 1671805

THRUST WASHER

$

$

Not available

10

Simplicity 1671834

DRIVE PIN

$

$

Not available

11

Simplicity 1671835

AXLE

$

$

Not available

12

Simplicity 1671827

RIVET

$

$

Not available

13

Simplicity 1671819

WASHER

$

$

Not available

14

Simplicity 1671790

OIL SEAL

$

$

Not available

15

Simplicity 1671837

"U" CLIP

$

$

Not available

16

Simplicity 1671839

#35 ROLLERLESS CHAIN

$

$

Not available

17

Simplicity 1671842

#35 ROLLER CHAIN

$

$

Not available

18

Simplicity 1671841

SPROCKET ASSEMBLY-42 Tooth

$

$

Not available

19

Simplicity 2819317

CAPSCREW, Hex Hd. 5/16-18 x 1/2 Plated

$

$

Not available

20

Simplicity 1671783

SEAL CUP

$

$

Not available

21

Simplicity 1671784

O-RING

$

$

Not available

22

Simplicity 1671838

WASHER

$

$

Not available

23

Simplicity 1671840

POP RIVET

$

$

Not available

24

Simplicity 1671793

NYLON WASHER

$

$

Not available

25

Simplicity 2819326

WASHER, Flat SAE 5/16 Plated

$

$

Not available
