1690803 - Simplicity Rear-Tine Tiller, 5hp Frame and Tine Shield - S/N 4004-C1-500 and Below Parts Diagram

Rear-Tine Tiller, 5hp

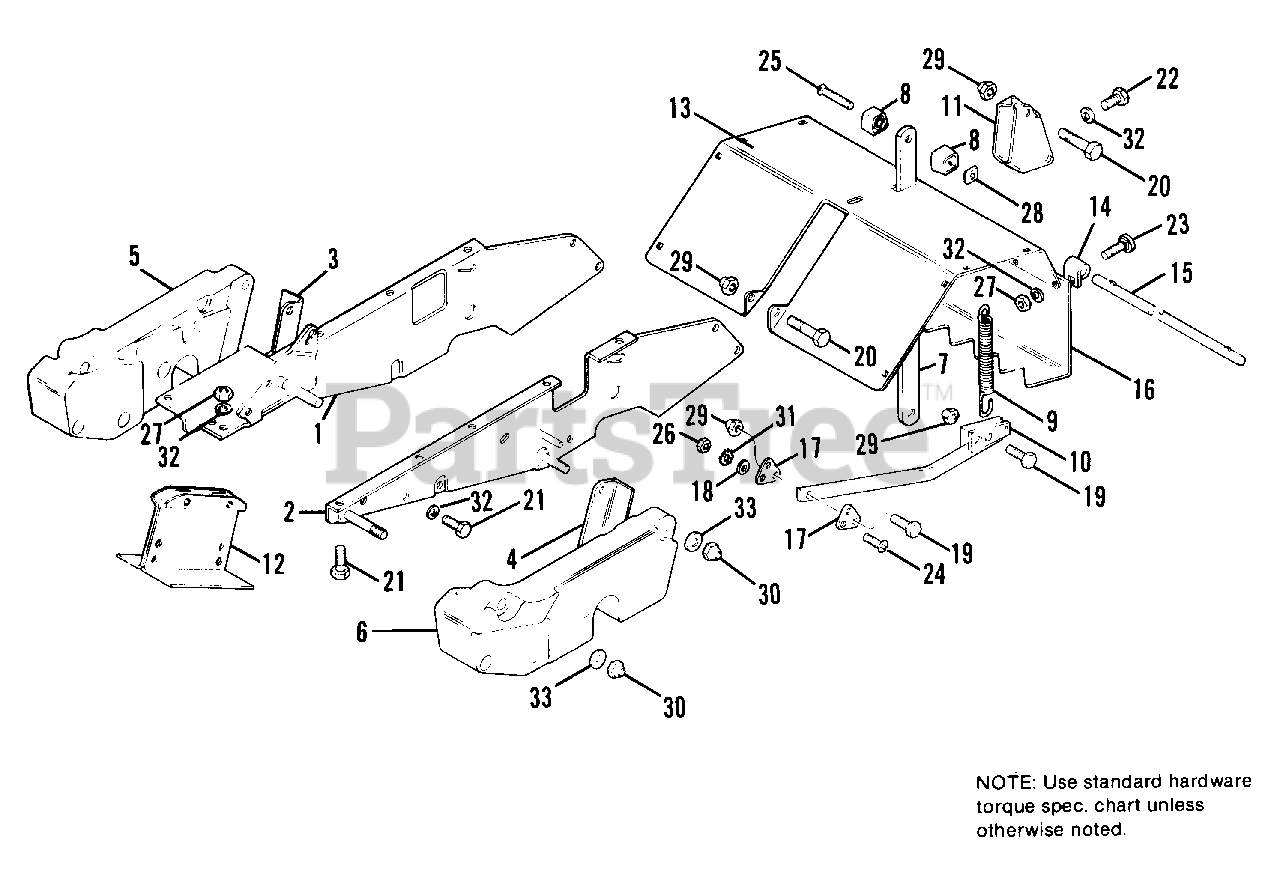

Frame and Tine Shield - S/N 4004-C1-500 and Below Parts Diagram

  • Title

1

Simplicity 1671808

FRAME ASSEMBLY-R.H.

$

$

Not available

2

Simplicity 1671809

FRAME ASSEMBLY-L.H.

$

$

Not available

3

Simplicity 1671811

HANGER-Rear R.H.

$

$

Not available

4

Simplicity 1671812

HANGER-Rear L.H.

$

$

Not available

5

Simplicity 1671814

COUNTERWEIGHT-R.H.

$

$

Not available

6

Simplicity 1671815

COUNTERWEIGHT-L.H.

$

$

Not available

7

Simplicity 1671822

DEPTH CONTROL ASSEMBLY

$

$

Not available

8

Simplicity 1671810

HANDLE

$

$

Not available

9

Simplicity 1671813

SPRING

$

$

Not available

10

Simplicity 1671821

SKID ASSEMBLY

$

$

Not available

11

Simplicity 1671823

SUPPORT ASSEMBLY

$

$

Not available

12

Simplicity 1671824

SUPPORT ASSEMBLY-Counterweight

$

$

Not available

13

Simplicity 1671825

TINE SHIELD & DECAL ASSEMBLY

$

$

Not available

14

Simplicity 1671816

HINGE

$

$

Not available

15

Simplicity 1671817

ROD

$

$

Not available

16

Simplicity 1671818

GUARD ASSEMBLY

$

$

Not available

17

Simplicity 1671820

LUG

$

$

Not available

18

Simplicity 1671819

WASHER

$

$

Not available

19

Simplicity 2821333

CAP SCREW, Hex Hd. 5/16-18 x 1" Plated

$

$

Not available

20

Simplicity 2821160

CAP SCREW, Hex Hd. 5/16-18 x 2-1/4" Plated

$

$

Not available

21

Simplicity 2825205

CAP SCREW, Hex Hd. 5/16-18 x 5/8" Plated

$

$

Not available

22

Simplicity 2819317

CAP SCREW, Hex Hd. 5/16-18 x 1/2" Plated

$

$

Not available

23

Simplicity 2831333

BOLT, Carriage 5/16-18 x 3/4" Plated

$

$

Not available

24

Simplicity 910968

MACHINE SCREW, Slotted Rd. Hd. #10-24 x 1" Plated

$

$

Not available

25

Simplicity 922703

MACHINE SCREW, Slotted Flat Hd. 5/16-18 x 2" Plated

$

$

Not available

26

Simplicity 2816621

NUT, Hex #10-24 Plated

$

$

Not available

27

Simplicity 1917372SM

NUT, H7ex 5/16-18 Plated
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

28

Simplicity 936716

NUT, Square 5/16-18 Plated

$

$

Not available

29

Simplicity 2823362

NUT, Hex Center Lock 5/16-18 Plated

$

$

Not available

30

Simplicity 1930645SM

NUT, Hex Center Lock 3/8-16 Plated
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

31

Simplicity 2822711

WASHER, Lock External Tooth #10 Plated

$

$

Not available

32

Simplicity 1917356SM

WASHER, Spring Lock 5/16 Plated
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

33

Simplicity 2156065

WASHER, Flat SAE 3/8 Plated

$

$

Not available
