1690801 - Simplicity 19" Walk-Behind Mower PARTS LIST FOR MFG. NO. 1690796-19" PUSH MOWER Parts Diagram

19" Walk-Behind Mower

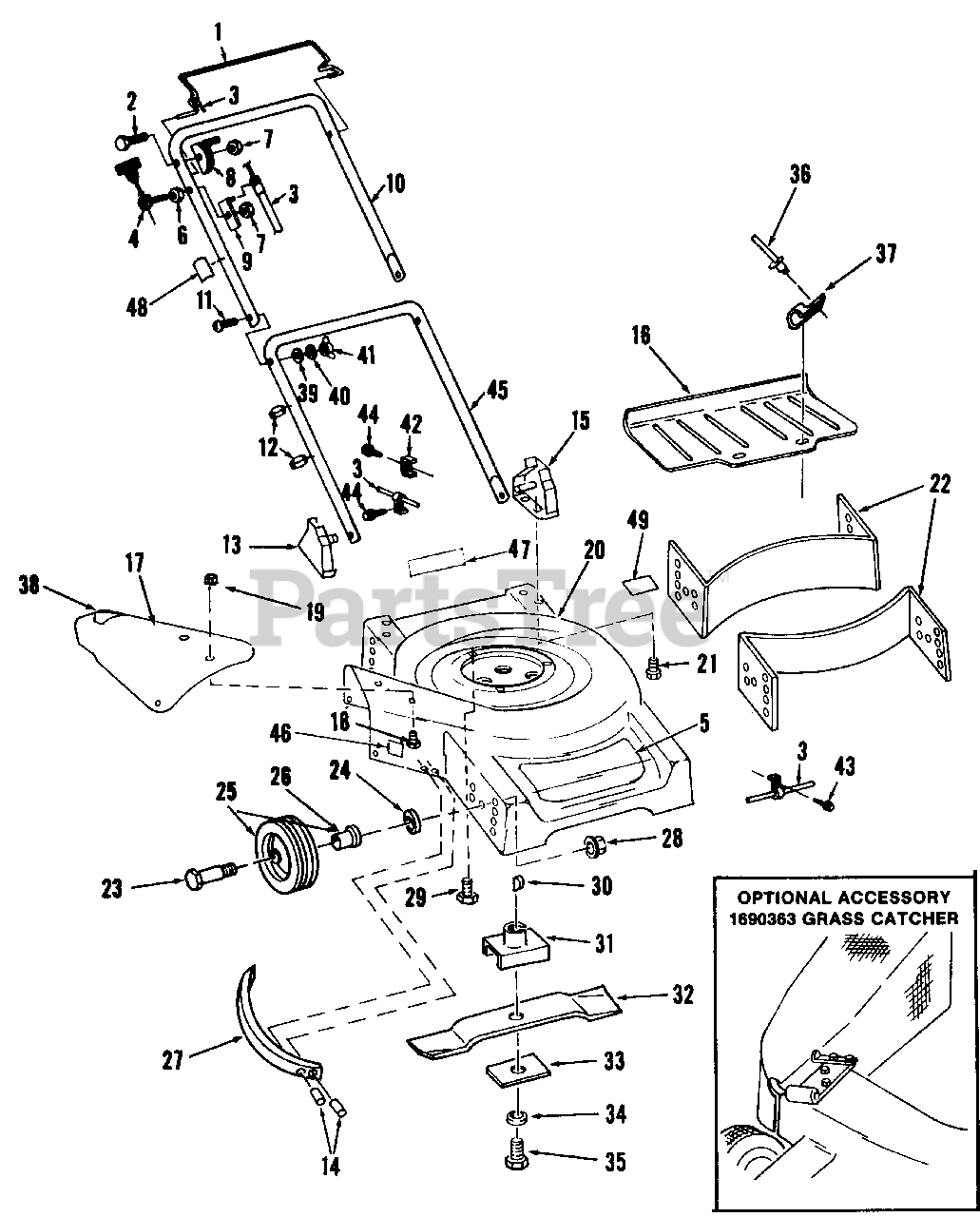

PARTS LIST FOR MFG. NO. 1690796-19" PUSH MOWER Parts Diagram

  • Title

1

Simplicity 1671620

Bail-Control

$

$

Not available

2

Simplicity 2822837

Bolt-Throttle 1/4-20 x 1-1/2

$

$

Not available

3

Simplicity 1671655

Control Cable

$

$

Not available

4

Simplicity 1671623

Eyebolt

$

$

Not available

5

Simplicity 1663834

Decal-Deck, Simplicity

$

$

Not available

6

Simplicity 1671624

Nut-1/4-20 Hex

$

$

Not available

7

Simplicity 2823358

Nut-Hex 1/4-20 Locking

$

$

Not available

8

Simplicity 1671621

Control-Throttle

$

$

Not available

9

Simplicity 1671652

Bracket-Cable Mounting

$

$

Not available

10

Simplicity 1671619

Handle-Upper

$

$

Not available

11

Simplicity 1671630

Bolt-Handle

$

$

Not available

12

Simplicity 2108812

Clamp-Cable

$

$

Not available

13

Simplicity 1664053

Bracket Assembly-Yoke, R.H.

$

$

Not available

14

Simplicity 1960241SM

Rivet-1/4" Pop

$5.49

$

Usually ships in 2-12 days

0

15

Simplicity 1664052

Bracket Assembly-Yoke, L.H.

$

$

Not available

16

Simplicity 1671625

Trailguard

$

$

Not available

17

Simplicity 1664083

Chute Extension

$

$

Not available

18

Simplicity 1664065

Bolt-Carriage

$

$

Not available

19

Simplicity 1664067

Nut-Keps

$

$

Not available

20

Simplicity 1664044

Housing

$

$

Not available

21

Simplicity 1671631

Bolt-1/4-20 x 1/2

$

$

Not available

22

Simplicity 1664071

Baffle

$

$

Not available

23

Simplicity 1668749

Bolt-Shoulder

$

$

Not available

24

Simplicity 2817642

Washer-3/8 Flat

$

$

Not available

25

Simplicity 1671627

Wheel Assembly w/Bearing 7"

$

$

Not available

26

Simplicity 1664058

Bearing-Wheel

$

$

Not available

27

Simplicity 1664176

Guard-Blade

$

$

Not available

28

Simplicity 1930645SM

Nut-Baffle
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

29

Simplicity 2827187SM

Screw-Engine
(Superseded to 704000)

$4.99

$

Usually ships in 2-12 days

0

30

Simplicity 2810224SM

Key-Engine Shaft

$3.99

$

Usually ships in 2-12 days

0

31

Simplicity 1664060

Blade Adapter Assembly

$

$

Not available

32

Simplicity 1664040SM

Blade

$87.99

$

Usually ships in 2-12 days

0

33

Simplicity 1664074

Spacer-Blade Adapter

$

$

Not available

34

Simplicity 1916965SM

Washer-Blade
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

35

Simplicity 2827008SM

Bolt-Blade

$2.99

$

Usually ships in 2-12 days

0

36

Simplicity 924280

Pop Rivet

$

$

Not available

37

Simplicity 1671991

Clip-Trailguard

$

$

Not available

38

Simplicity 1671649

Decal-Danger & Caution

$

$

Not available

39

Simplicity 1717312SM

Washer-Curved

$

$

Not available

40

Simplicity 2823300

Washer-Lock

$

$

Not available

41

Simplicity 918468

Nut-Wing

$

$

Not available

42

Simplicity 1664062

Clamp-Casing

$

$

Not available

43

Simplicity 1671629

Screw-Hex Head

$

$

Not available

44

Simplicity 1664068

Screw-Casing

$

$

Not available

45

Simplicity 1669639

Lower Handle

$

$

Not available

46

Simplicity 170489

Decal-19"

$

$

Not available

47

Simplicity 106719

Decal-Simplicity 6"

$

$

Not available

48

Simplicity 1671647

Decal-Engine Control

$

$

Not available

49

Simplicity 1671648

Decal-Starting Instructions

$

$

Not available

49

Simplicity 1690363

Grass Catcher

Note: OPTIONAL ACCESSORY

$

$

Not available

49

Simplicity 1664166

Replacement Bag

Note: OPTIONAL ACCESSORY

$

$

Not available
