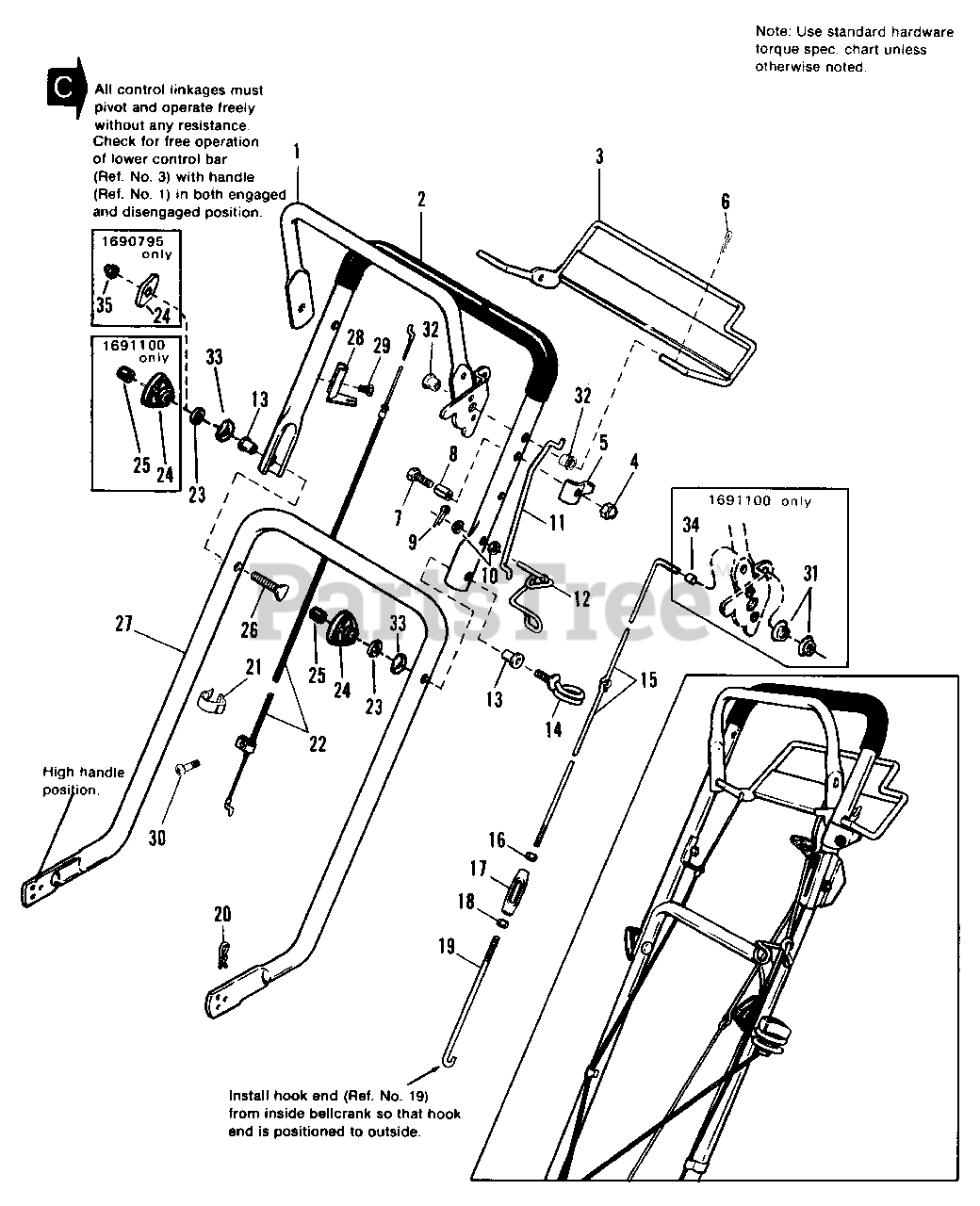

1690795 - Simplicity 21" Walk-Behind Mower Handles & Drive Group Parts Diagram

21" Walk-Behind Mower

Handles & Drive Group Parts Diagram

  • Title

1

Simplicity 1685295

HANDLE ASSY., Self Propelling (1690795 only)

$

$

Not available

1

Simplicity 1678795

HANDLE ASSY., Self-Propelling (1691100 only)

$

$

Not available

2

Simplicity 1671320

HANDLE, Upper, Coated

$

$

Not available

3

Simplicity 1671538

LOWER CONTROL BAR

$

$

Not available

4

Simplicity 2833896

LOCKNUT, Hex, Full, #10-24 (Nylon)

$

$

Not available

5

Simplicity 1671432

STOP, Bail

$

$

Not available

6

Simplicity 2818447

PIN, Cotter, 3/32 x 3/4

$

$

Not available

7

Simplicity 933738

SCREW, #10-24 x 1-1/2

$

$

Not available

8

Simplicity 2827609

PIN, Roll, 3/8 x 1-1/4

$

$

Not available

9

Simplicity 2818445

COTTER PIN 1/16 x 1/2

$

$

Not available

9

Simplicity 1960140SM

NUT, Pal, 3/16 (Use if item 12 does not have hole for Cotter Pin)

$3.49

$

Usually ships in 2-12 days

0

10

Simplicity 2810531

WASHER

$

$

Not available

11

Simplicity 1671448

ROD, Rope Stop

$

$

Not available

12

Simplicity 1671447

STOP, Rope

$

$

Not available

13

Simplicity 1657535

EYELET

$

$

Not available

14

Simplicity 1671511

ROPE GUIDE ASSY.

$

$

Not available

15

Simplicity 1685294SM

CLUTCH ROD, Upper (1691100 only)

$

$

Not available

15

Simplicity 1685294SM

CLUTCH ROD, Upper (1690795 only)

$

$

Not available

16

Simplicity 2828704SM

NUT,Hex, Full, #10-24, LH Thd

$5.99

$

Usually ships in 2-12 days

0

17

Simplicity 2108775SM

TURNBUCKLE

$

$

Not available

18

Simplicity 2816621

NUT, Hex, Full, #10-24, RH Thd

$

$

Not available

19

Simplicity 108669

CLUTCH ROD, Lower

$

$

Not available

20

Simplicity 2106787

CLIP, Spring

$

$

Not available

21

Simplicity 2108812

CLAMP

$

$

Not available

22

Simplicity 1671443

CABLE ASSY., Brake

$

$

Not available

23

Simplicity 2823300

WASHER-Shakeproof, 5/16

$

$

Not available

24

Simplicity 1677817

KNOB, Handle (1691100 only)

$

$

Not available

24

Simplicity 2108848

HANDLE, Wing (1690795 only)

$

$

Not available

25

Simplicity 1677873

CAP, Bolt End, Plastic (1691100 only)

$

$

Not available

26

Simplicity 1665221

BOLT, Curved Hd.

$

$

Not available

27

Simplicity 1666382

HANDLE, Lower

$

$

Not available

28

Simplicity 1671652

BRACKET, Cable Mfg.

$

$

Not available

29

Simplicity 2825003

SCREW, Taptite, 1/4-20 x 1/2

$

$

Not available

30

Simplicity 1671629

SCREW, #10-32 x 3/8 Sems

$

$

Not available

31

Simplicity 1960521SM

NUT, Push, 5/32 (1691100 only)

$3.49

$

In Stock, Qty 10

0

32

Simplicity 1672226

BUSHING

$

$

Not available

33

Simplicity 1717312SM

WASHER, Curved, 5/16 (1691100 only)

$

$

Not available

34

Simplicity 1678720

SPACER, Clutch Rod (1691100 only)

$

$

Not available

35

Simplicity 2833707

NUT, Acorn 5/16-18 (1690795 only)

$

$

Not available
