1690771 - Simplicity 60" Dozer Blade Hydraulic Lines - Tractor End Group (3482I06) Parts Diagram

60" Dozer Blade

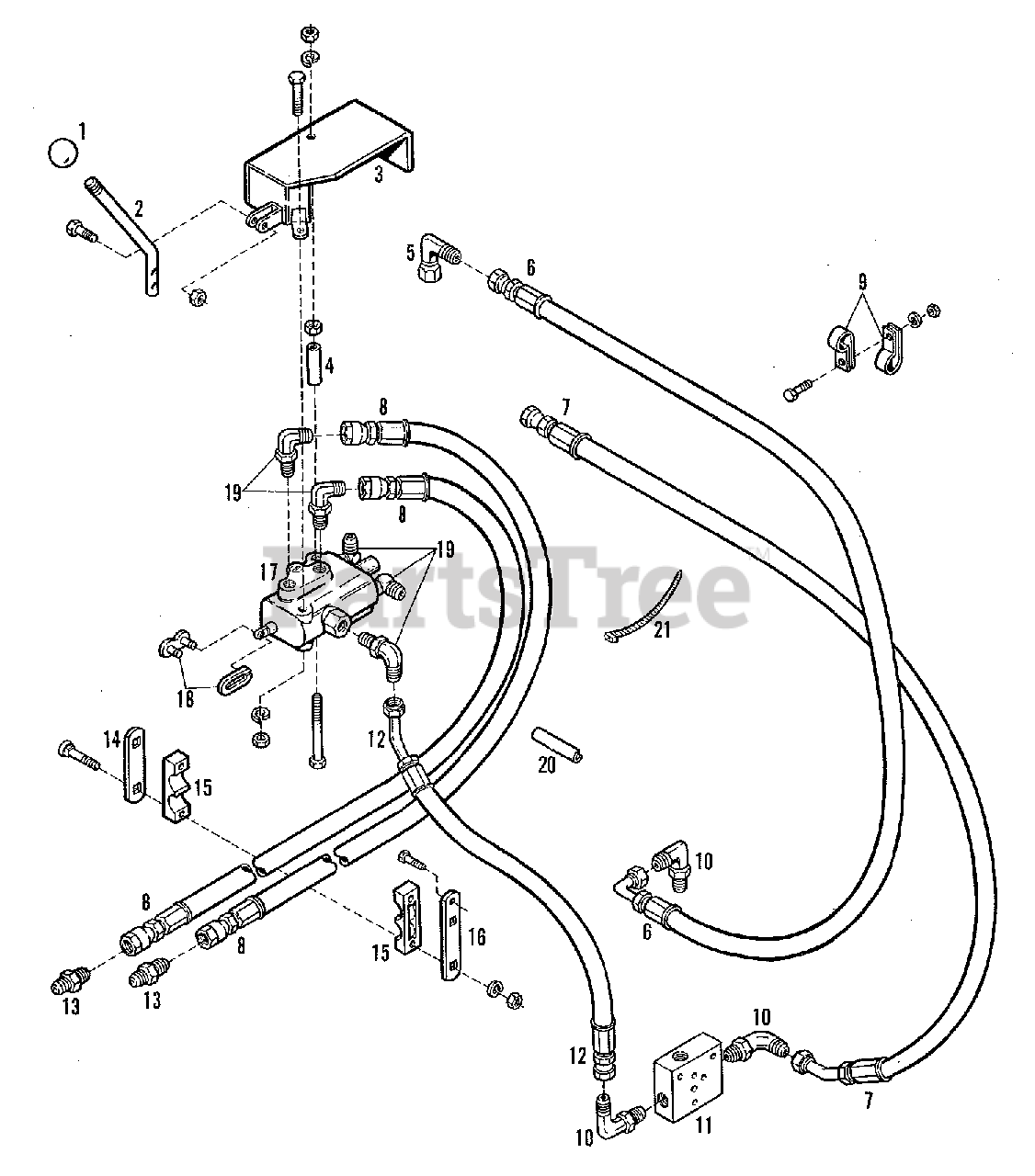

Hydraulic Lines - Tractor End Group (3482I06) Parts Diagram

  • Title

1

Simplicity 1610253-5

KNOB

$

$

Not available

2

Simplicity 1671576-5

ROD, Control

$

$

Not available

2

Simplicity 0921961-9

CAPSCREW, 1/4NC x 1-1/4

$

$

Not available

2

Simplicity 0920397-7

NUT, Lock, 1/4NC

$

$

Not available

3

Simplicity 1671754-8

COVER ASSEMBLY

$

$

Not available

3

Simplicity 0921963-5

CAPSCREW, 1/4NC x 2

$

$

Not available

3

Simplicity 0916964-0

LOCKWASHER, 1/4

$

$

Not available

3

Simplicity 0916622-4

NUT, 1/4NC

$

$

Not available

4

Simplicity 1671751-4

SPACER

$

$

Not available

5

Simplicity 0921013-9

ELBOW, Swivel Nut, 3/8 Tube

$

$

Not available

6

Simplicity 1671223-4

HOSE ASSEMBLY

$

$

Not available

7

Simplicity 1671222-6

HOSE ASSEMBLY

$

$

Not available

8

Simplicity 1671220-0

HOSE ASSEMBLY, Valve to Cylinder

$

$

Not available

9

Simplicity 0927310-3

CLAMP, Hose

$

$

Not available

9

Simplicity 0921333-1

CAPSCREW, 5/16NC x 1

$

$

Not available

9

Simplicity 0917356-8

LOCKWASHER, 5/16

$

$

Not available

9

Simplicity 0917372-5

NUT, 5/16NC

$

$

Not available

10

Simplicity 0923905-4

ELBOW, 90 Degrees x 1/2

$

$

Not available

10

Simplicity 0921349-7

O-RING

$

$

Not available

11

MANIFOLD

$

$

Not available

11

Simplicity 0923548-2

O-RING

$

$

Not available

11

Simplicity 0950025-7

CAPSCREW, M8 x 1-1/4 x 70MM

$

$

Not available

11

Simplicity 0950219-6

LOCKWASHER, M8

$

$

Not available

12

Simplicity 1671221-8

HOSE ASSEMBLY

$

$

Not available

13

Simplicity 1671571-6

CONNECTOR, Male

$

$

Not available

14

Simplicity 1671568-2

STRAP

$

$

Not available

14

Simplicity 0921929-6

BOLT, Carriage, 5/16NC x 2

$

$

Not available

14

Simplicity 0917356-8

LOCKWASHER, 5/16

$

$

Not available

14

Simplicity 0917372-5

NUT, 5/16NC

$

$

Not available

15

Simplicity 1671567-4

CUSHION

$

$

Not available

16

Simplicity 1671940-3

BRACKET

$

$

Not available

16

Simplicity 0950018-2

CAPSCREW, M8 x 1-1/4 x 20MM

$

$

Not available

17

Simplicity 1671570-8

VALVE ASSEMBLY, Control

$

$

Not available

17

Simplicity 0931272-9

CAPSCREW, 1/4NC x 4

$

$

Not available

17

Simplicity 0916964-0

LOCKWASHER, 1/4

$

$

Not available

17

Simplicity 0916622-4

NUT, 1/4NC

$

$

Not available

18

Simplicity 2029144-9

LINK, Connecting

$

$

Not available

19

Simplicity 0922523-6

ELBOW, 90 Degrees x 3/8

$

$

Not available

19

Simplicity 0921885-0

O-RING

$

$

Not available

20

Simplicity 1671572-4

MOULDING (3" Long)

$

$

Not available

20

Simplicity 1673904-7

MOULDING (2-1/2" Long)

$

$

Not available

21

Simplicity 0925094-5

TIE, Plastic, Black

$

$

Not available
