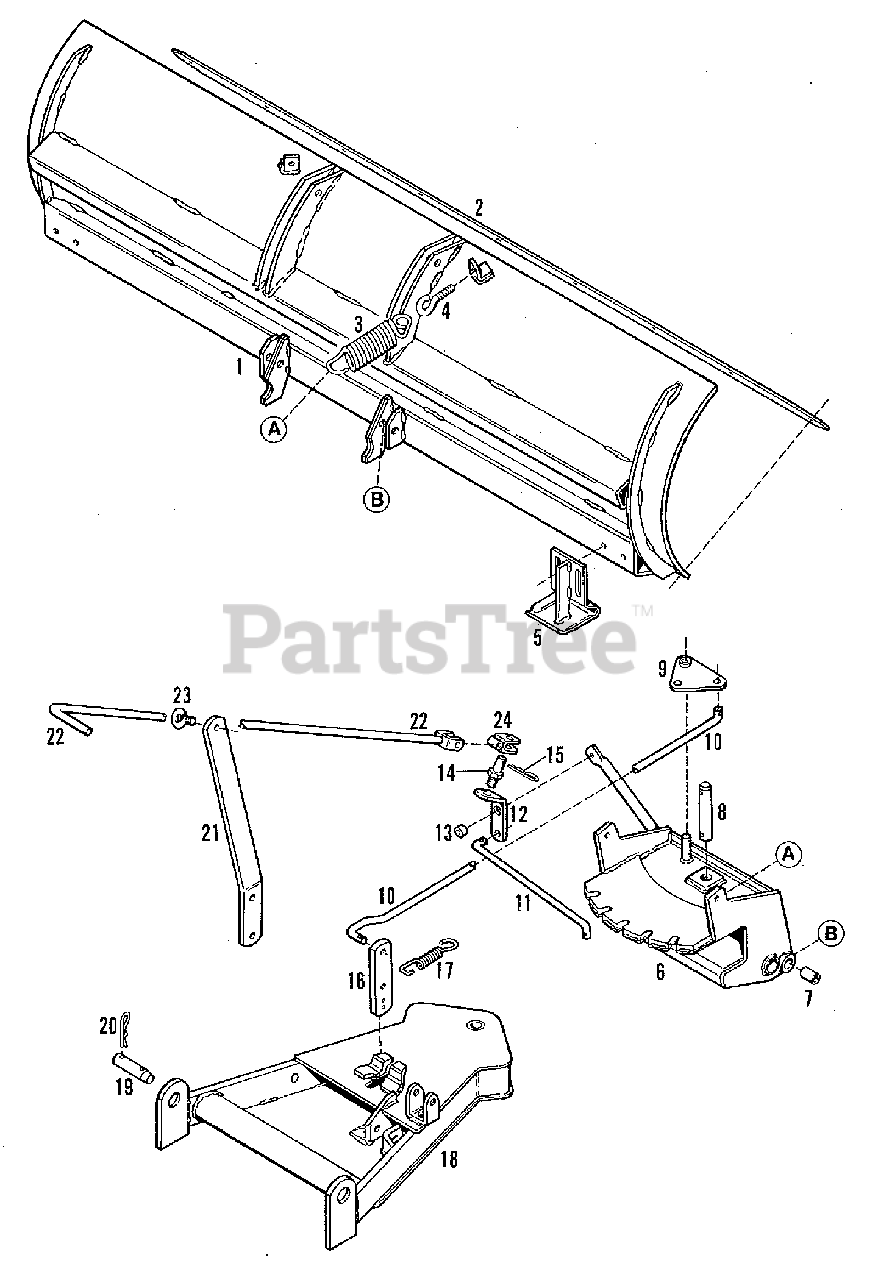

1690771 - Simplicity 60" Dozer Blade Frame - Blade & Support Group (3482I03) Parts Diagram

60" Dozer Blade

Frame - Blade & Support Group (3482I03) Parts Diagram

  • Title

1

Simplicity 2028694-4

BLADE ASSEMBLY (60")

$

$

Not available

1

Simplicity 0927469-7

CAPSCREW, 1/2NC x 2-1/4

$

$

Not available

1

Simplicity 0922134-2

NUT, Lock, 1/2NC

$

$

Not available

2

Simplicity 2028695-1

PLATE, Wear

$

$

Not available

2

Simplicity 0922249-8

BOLT, Carriage, 3/8NC x 1

$

$

Not available

2

Simplicity 0916965-7

LOCKWASHER, 3/8

$

$

Not available

2

Simplicity 0916950-9

NUT, 3/8NC

$

$

Not available

3

Simplicity 2026412-3

SPRING, Tension

$

$

Not available

4

Simplicity 2026491-7

BOLT, Eye

$

$

Not available

4

Simplicity 0917372-5

NUT, 5/16NC

$

$

Not available

5

Simplicity 2026485-9

SHOE ASSEMBLY

$

$

Not available

5

Simplicity 0921965-0

CAPSCREW, 3/8NC x 3/4

$

$

Not available

5

Simplicity 0917378-2

WASHER, Plain, 7/16 x 1 x 14 GA.

$

$

Not available

5

Simplicity 0916965-7

LOCKWASHER, 3/8

$

$

Not available

6

Simplicity 2028696-9

FRAME ASSEMBLY, Pivot

$

$

Not available

6

Simplicity 0918452-4

PIN, Cotter, 1/8 x 1

$

$

Not available

7

Simplicity 2028697-7

SPACER

$

$

Not available

8

Simplicity 2028698-5

PIN, Pivot

$

$

Not available

8

Simplicity 0922002-1

PIN, Cotter, 3/16 x 2

$

$

Not available

9

Simplicity 2026487-5

PLATE ASSEMBLY, Pivot

$

$

Not available

9

Simplicity 0918452-4

PIN, Cotter, 3/16 x 2

$

$

Not available

10

Simplicity 1664637-4

PLATE ASSEMBLY, Pivot

$

$

Not available

10

Simplicity 0918448-2

PIN, Cotter, 3/32 x 3/4

$

$

Not available

11

Simplicity 2028700-9

ROD, Pivot

$

$

Not available

11

Simplicity 0918448-2

PIN, Cotter, 3/32 x 3/4

$

$

Not available

12

Simplicity 2026489-1

ARM, Pivot

$

$

Not available

12

Simplicity 0921333-1

CAPSCREW, 5/16NC x 1

$

$

Not available

12

Simplicity 0917642-1

WASHER, Plain, 3/8 x 7/8 x 16 GA

$

$

Not available

12

Simplicity 0917356-8

LOCKWASHER, 5/16

$

$

Not available

12

Simplicity 0917372-5

NUT, 5/16NC

$

$

Not available

13

Simplicity 2026341-4

SPACER

$

$

Not available

14

Simplicity 2026490-9

STUD, Pivot

$

$

Not available

14

Simplicity 0917356-8

LOCKWASHER, 5/16

$

$

Not available

14

Simplicity 0917372-5

NUT, 5/16NC

$

$

Not available

15

Simplicity 9002801-0

CLIP, Hairpin (Pkg. Of 8)

$

$

Not available

16

Simplicity 2028706-6

LATCH

$

$

Not available

16

Simplicity 0921469-3

PIN, Spring, 7/32 x 1

$

$

Not available

17

Simplicity 2026495-8

SPRING

$

$

Not available

18

Simplicity 1670926-3

FRAME ASSEMBLY

$

$

Not available

19

Simplicity 2028709-0

PIN

$

$

Not available

20

Simplicity 9002802-8

CLIP, Hairpin (Pkg. Of 4)

$

$

Not available

21

Simplicity 1670939-6

ARM, Support

$

$

Not available

21

Simplicity 0950929-0

CAPSCREW, M12 x 1.5 x 35MM

$

$

Not available

21

Simplicity 0950221-2

LOCKWASHER, 12MM

$

$

Not available

22

Simplicity 1670940-4

HANDLE ASSEMBLY

$

$

Not available

22

Simplicity 0921221-8

CAPSCREW, 5/16NC x 1-1/2

$

$

Not available

22

Simplicity 0923362-8

NUT, Lock, 5/16NC

$

$

Not available

23

Simplicity 2027925-3

BOLT, Eye

$

$

Not available

23

Simplicity 0916964-0

LOCKWASHER, 1/4

$

$

Not available

23

Simplicity 0916622-4

NUT, 1/4NC

$

$

Not available

24

Simplicity 2025312-6

FORK ASSEMBLY

$

$

Not available
