1690770 - Simplicity 52" Snow Thrower Attachment Frame - Housing & Drive Group (3482I92) Parts Diagram

52" Snow Thrower Attachment

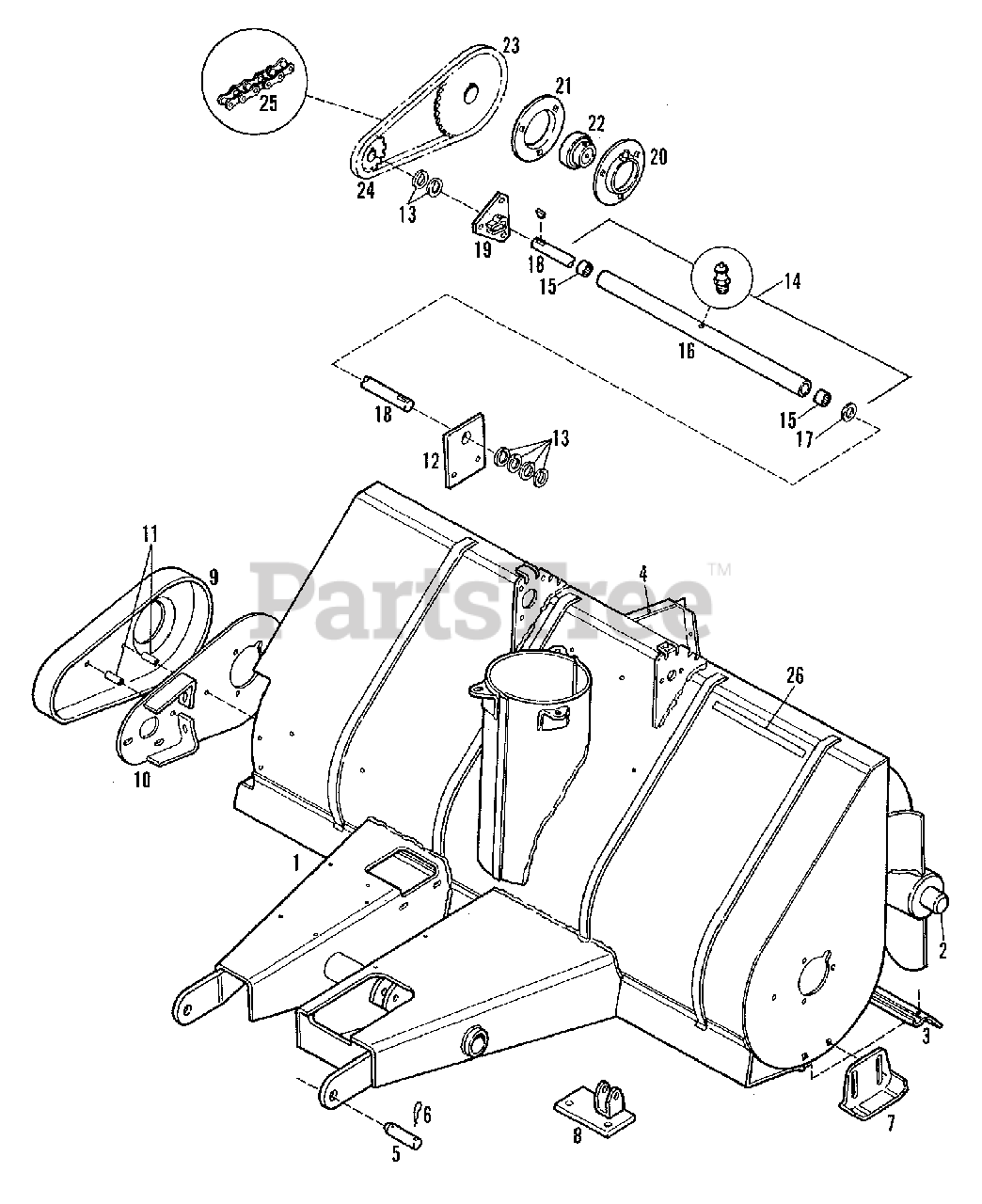

Frame - Housing & Drive Group (3482I92) Parts Diagram

  • Title

1

Simplicity 1670895-0

BODY & FRAME ASSEMBLY

$

$

Not available

2

Simplicity 2028995-5

ROTOR ASSEMBLY

$

$

Not available

3

Simplicity 2029879-0

BLADE, Scraper

$

$

Not available

3

Simplicity 0922126-8

CAPSCREW, 5/16NC x 3/4

$

$

Not available

3

Simplicity 0928698-0

NUT, Jam, 5/16NC

$

$

Not available

4

Simplicity 2029008-6

DEFLECTOR ASSEMBLY

$

$

Not available

4

Simplicity 0925205-7

CAPSCREW, 5/16NC x 5/8

$

$

Not available

4

Simplicity 0917356-8

LOCKWASHER, 5/16

$

$

Not available

4

Simplicity 0917372-5

NUT, 5/16NC

$

$

Not available

5

Simplicity 2028709-0

PIN, Hitch

$

$

Not available

6

Simplicity 9002802-8

CLIP, Hairpin

$

$

Not available

7

Simplicity 2029878-2

PLATE ASSEMBLY, Skid

$

$

Not available

7

Simplicity 0923490-7

CAPSCREW, 3/8NC x 1

$

$

Not available

7

Simplicity 0917378-2

WASHER, Plain, 7/16 x 1 x 14 Ga.

$

$

Not available

7

Simplicity 0928352-4

NUT, Whizlock, 3/8NC

$

$

Not available

8

Simplicity 1671383-6

CYLINDER MOUNT ASSEMBLY

$

$

Not available

8

Simplicity 0920677-2

CAPSCREW, 7/16NC x 1-1/4

$

$

Not available

8

Simplicity 0918199-1

LOCKWASHER, 7/16

$

$

Not available

8

Simplicity 0918213-0

NUT, 7/16NC

$

$

Not available

9

Simplicity 2029011-0

GUARD, Chain

$

$

Not available

10

Simplicity 2028996-3

BRACKET ASSEMBLY & SIDE PLATE

$

$

Not available

10

Simplicity 0924856-8

SCREW, Self-Tapping, 5/16NC x 1/2

$

$

Not available

10

Simplicity 0933254-5

SCREW, Large Flange, Whizlock, 3/8NC x 2-1/4

$

$

Not available

10

Simplicity 0928352-4

NUT, Whizlock, 3/8NC

$

$

Not available

11

Simplicity 2088048-0

SPACER

$

$

Not available

12

Simplicity 1671466-9

PLATE ASSEMBLY, Mounting

$

$

Not available

12

Simplicity 0921221-8

CAPSCREW, 5/16NC x 1-1/2

$

$

Not available

12

Simplicity 0917378-2

WASHER, Plain, 7/16 x 1 x 14 Ga.

$

$

Not available

12

Simplicity 0917356-8

LOCKWASHER, 5/16

$

$

Not available

12

Simplicity 0917372-5

NUT, 5/16NC

$

$

Not available

12

Simplicity 0921965-0

CAPSCREW, 3/8NC x 3/4

$

$

Not available

12

Simplicity 0916965-7

LOCKWASHER, 3/8

$

$

Not available

12

Simplicity 0916950-9

NUT, 3/8NC

$

$

Not available

13

Simplicity 2025722-6

WASHER

$

$

Not available

14

Simplicity 1671461-0

HOUSING ASSEMBLY

$

$

Not available

15

Simplicity 2087999-5

BEARING, Roller

$

$

Not available

16

Simplicity 1671460-2

HOUSING, Bearing

$

$

Not available

16

Simplicity 0914687-9

FITTING, Lube, 1/4NC

$

$

Not available

17

Simplicity 1657386-7

SEAL

$

$

Not available

18

Simplicity 1671456-0

SHAFT, Drive

$

$

Not available

18

Simplicity 0930670-5

KEY, Hi-Pro, 3/16 x 3/4

$

$

Not available

19

Simplicity 1671464-4

PLATE ASSEMBLY, Mounting

$

$

Not available

19

Simplicity 0921210-1

CAPSCREW, 3/8NC x 1

$

$

Not available

19

Simplicity 0916965-7

LOCKWASHER, 3/8

$

$

Not available

19

Simplicity 0916950-9

NUT, 3/8NC

$

$

Not available

20

Simplicity 2028999-7

FLANGE, Bearing

$

$

Not available

20

Simplicity 0922249-8

BOLT, Carriage, 3/8NC x 1

$

$

Not available

20

Simplicity 0916965-7

LOCKWASHER, 3/8

$

$

Not available

20

Simplicity 0916950-9

NUT, 3/8NC

$

$

Not available

21

Simplicity 2028998-9

FLANGE, Bearing

$

$

Not available

22

Simplicity 2028997-1

BEARING

$

$

Not available

22

Simplicity 0928721-0

SETSCREW, 5/16NC x 1/2

$

$

Not available

23

Simplicity 2029000-3

SPROCKET (34T)

$

$

Not available

23

Simplicity 0930673-9

KEY, Hi-Pro, 5/16 x 1

$

$

Not available

23

Simplicity 0930540-0

SETSCREW, 5/16NC x 5/8

$

$

Not available

23

Simplicity 0928721-0

SETSCREW, 5/16NC x 1/2

$

$

Not available

24

Simplicity 2087504-3

SPROCKET (14T)

$

$

Not available

24

Simplicity 0928709-5

SETSCREW, 5/16NC x 3/8

$

$

Not available

25

Simplicity 2029010-2

CHAIN ASSEMBLY

$

$

Not available

26

Simplicity 2027774-5

DECAL (Safety)

$

$

Not available
