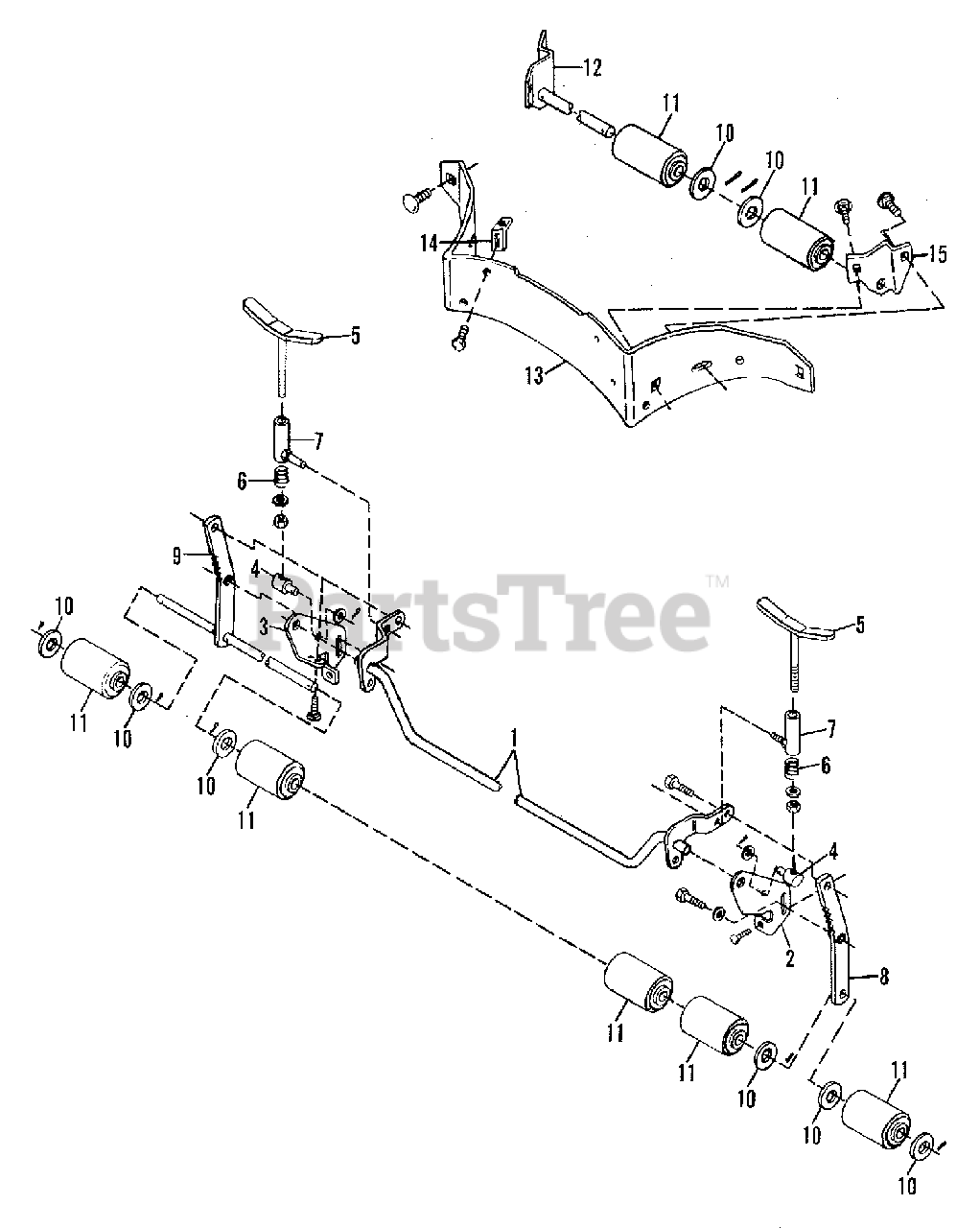

1690769 - Simplicity 48" Mower Deck, Center-Mounted Height Control & Rollers Group (3482I49) Parts Diagram

48" Mower Deck, Center-Mounted

Height Control & Rollers Group (3482I49) Parts Diagram

  • Title

1

Simplicity 2087653-8

ARM ASSEMBLY, Roller

$

$

Not available

1

Simplicity 0921210-1

CAPSCREW, 3/8NC x 1

$

$

Not available

1

Simplicity 0916950-9

NUT, 3/8NC

$

$

Not available

2

Simplicity 2087652-0

BRACKET, Roller, L.H.

$

$

Not available

2

Simplicity 0935156-0

CAPSCREW, 3/8NC x 1

$

$

Not available

2

Simplicity 0922110-2

BOLT, Carriage, 3/8NC x 3/4

$

$

Not available

2

Simplicity 0917378-2

WASHER, Plain, 7/16 x 1 x 14 GA.

$

$

Not available

2

Simplicity 0916965-7

LOCKWASHER, 3/8

$

$

Not available

2

Simplicity 0916950-9

NUT, 3/8NC

$

$

Not available

3

Simplicity 2087651-2

BRACKET, Roller, R.H.

$

$

Not available

3

Simplicity 0935156-0

CAPSCREW, 3/8NC x 1

$

$

Not available

3

Simplicity 0922110-2

BOLT, Carriage, 3/8NC x 3/4

$

$

Not available

3

Simplicity 0917378-2

WASHER, Plain, 7/16 x 1 x 14 GA.

$

$

Not available

3

Simplicity 0916965-7

LOCKWASHER, 3/8

$

$

Not available

3

Simplicity 0916950-9

NUT, 3/8NC

$

$

Not available

4

Simplicity 2087655-3

PIVOT

$

$

Not available

4

Simplicity 0924940-0

WASHER, Plain, 13/32 x 7/8 x 14 Ga

$

$

Not available

4

Simplicity 0918448-2

PIN, Cotter, 3/32 x 1"

$

$

Not available

5

Simplicity 1671391-9

SCREW, Adjusting

$

$

Not available

5

Simplicity 0917378-2

WASHER, Plain, 7/16 x 1 x 14 GA.

$

$

Not available

5

Simplicity 0917421-0

NUT, Jam, 3/8NC

$

$

Not available

6

Simplicity 2025865-3

SPRING

$

$

Not available

7

Simplicity 2025387-8

SOCKET ASSEMBLY

$

$

Not available

7

Simplicity 0930651-5

NUT, Lock, 3/8NC

$

$

Not available

8

Simplicity 1657891-6

BAR, Roller

$

$

Not available

9

Simplicity 1668541-4

SHAFT ASSEMBLY, Roller

$

$

Not available

9

Simplicity 0919387-1

WASHER, Plain, 41/64 x 1-1/4 x 14 Ga.

$

$

Not available

9

Simplicity 0918458-1

PIN, Cotter, 3/16 x 1

$

$

Not available

10

Simplicity 2028743-9

SPACER

$

$

Not available

11

Simplicity 1668513-3

ROLLER

$

$

Not available

12

Simplicity 2027118-5

BRACKET & SHAFT ASSEMBLY

$

$

Not available

12

Simplicity 0919387-1

WASHER, Plain, 41/64 x 1-1/4 x 14 Ga.

$

$

Not available

12

Simplicity 0918458-1

PIN, Cotter, 3/16 x 1

$

$

Not available

13

Simplicity 2027117-7

BAFFLE

$

$

Not available

13

Simplicity 0922110-2

BOLT, Carriage, 3/8NC x 3/4

$

$

Not available

13

Simplicity 0916965-7

LOCKWASHER, 3/8

$

$

Not available

13

Simplicity 0916950-9

NUT, 3/8NC

$

$

Not available

13

Simplicity 0921959-3

CAPSCREW, 1/4NC x 5/8

$

$

Not available

13

Simplicity 0916964-0

LOCKWASHER, 1/4

$

$

Not available

13

Simplicity 0916622-4

NUT, 1/4NC

$

$

Not available

14

Simplicity 2025355-5

CLIP, Baffle

$

$

Not available

14

Simplicity 0925592-8

SCREW, Thread Forming, 1/4NC x 3/4

$

$

Not available

14

Simplicity 0921959-3

CAPSCREW, 1/4NC x 5/8

$

$

Not available

14

Simplicity 0917377-4

WASHER, Plain, 5/16 x 3/4 x 16 Ga.

$

$

Not available

14

Simplicity 0916964-0

LOCKWASHER, 1/4

$

$

Not available

14

Simplicity 0916622-4

NUT, 1/4NC

$

$

Not available

15

Simplicity 2025375-3

BRACKET, Roller, L.H.

$

$

Not available

15

Simplicity 0920562-6

BOLT, Carriage, 5/16NC x 3/4

$

$

Not available

15

Simplicity 0917356-8

LOCKWASHER, 5/16

$

$

Not available

15

Simplicity 0917372-5

NUT, 5/16NC

$

$

Not available
