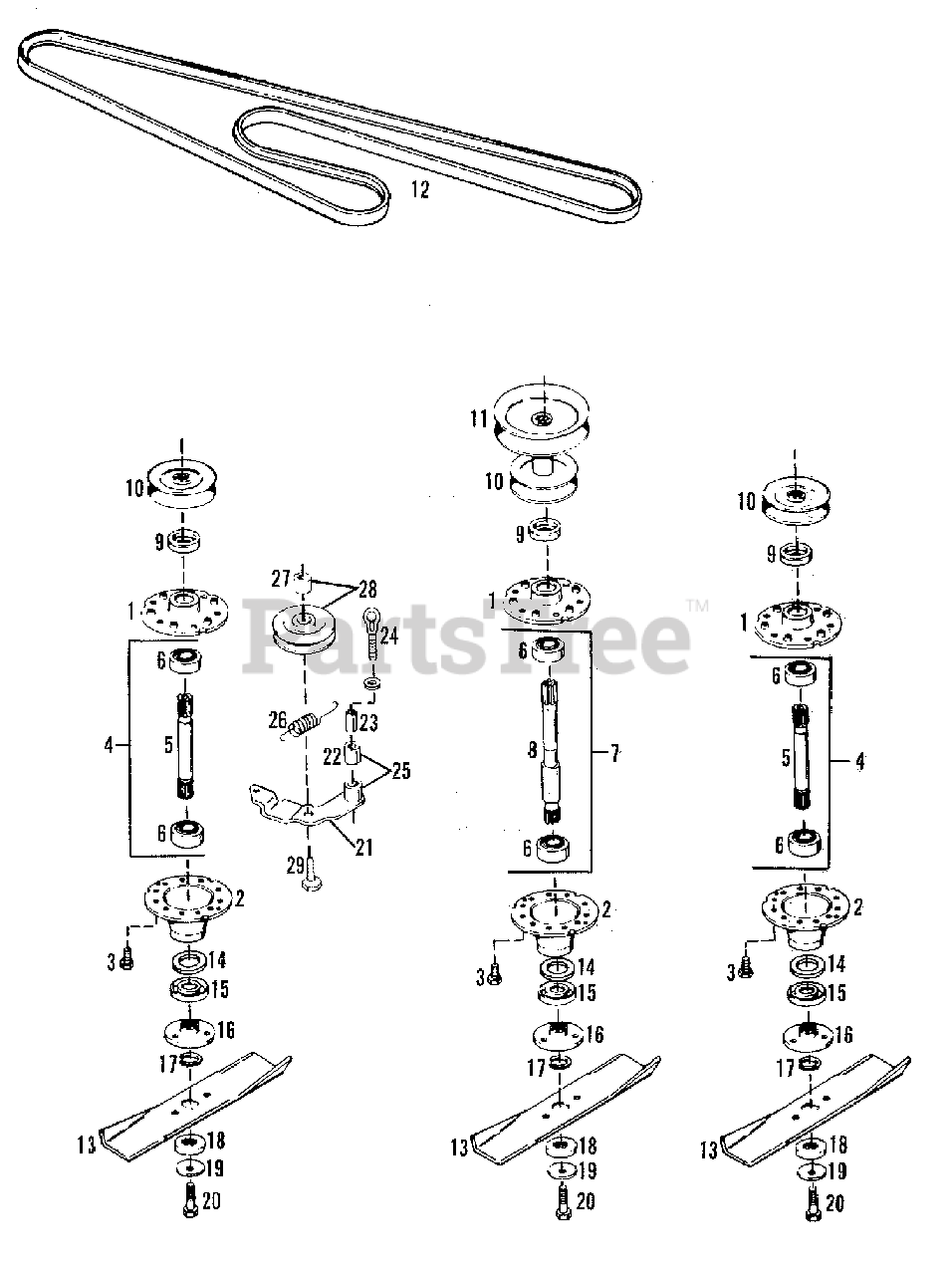

48" Mower Deck, Center-Mounted

Arbors, Blades & Belt Group (3482I50) Parts Diagram

  • Title

1

Simplicity 1655729-0

HOUSING, Top

$

$

Not available

2

Simplicity 1655728-2

HOUSING, Bottom

$

$

Not available

3

Simplicity 1664847SM

SCREW, Taptite, 5/16NC x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

4

Simplicity 1663336-4

BEARING ASSEMBLY, Shaft

$

$

Not available

5

SHAFT, Arbor

$

$

Not available

6

Simplicity 0536986-3

BEARING

$

$

Not available

7

Simplicity 1663337-2

BEARING ASSEMBLY, Center Shaft

$

$

Not available

8

SHAFT, Arbor, Center

$

$

Not available

9

Simplicity 1657969SM

SHIELD, Bearing Upper, Arbor

$7.49

$

In Stock, Qty 20+

0

10

Simplicity 1655867-8

PULLEY ASSEMBLY, Deck Drive

$

$

Not available

10

Simplicity 0923471-7

CAPSCREW, 7/16NC x 1-1/4

$

$

Not available

10

Simplicity 0933263-6

WASHER, Plain, 29/64 x 1-1/4 x 1/4

$

$

Not available

10

Simplicity 0918199-1

LOCKWASHER, 7/16

$

$

Not available

11

Simplicity 1656929-5

PULLEY ASSEMBLY, Center Shaft

$

$

Not available

11

Simplicity 0923471-7

CAPSCREW, 7/16NC x 1-1/4

$

$

Not available

11

Simplicity 0933263-6

WASHER, Plain, 29/64 x 1-1/4 x 1/4

$

$

Not available

11

Simplicity 0918199-1

LOCKWASHER, 7/16

$

$

Not available

12

Simplicity 1657044-2

V-BELT, Arbor Drive

$

$

Not available

13

Simplicity 1656143-3

BLADE, 48" Mower

$

$

Not available

14

Simplicity 1664241-5

WASHER, Shim

$

$

Not available

15

Simplicity 1657588-8

SHIELD, Grass

$

$

Not available

16

Simplicity 1655777-9

ADAPTER, Blade

$

$

Not available

17

Simplicity 1672132-6

COLLAR, Mower Arbor

$

$

Not available

18

Simplicity 1656927-9

WASHER, Spline

$

$

Not available

19

Simplicity 1656916-2

WASHER, Spring

$

$

Not available

20

Simplicity 0923491-5

CAPSCREW, 7/16NC x 1, Gr.8

$

$

Not available

21

Simplicity 1657684-5

LEVER ASSEMBLY, Idler

$

$

Not available

22

Simplicity 1657682-9

BUSHING

$

$

Not available

23

Simplicity 2026286-1

RACE, Inner

$

$

Not available

24

Simplicity 2087644-7

EYEBOLT

$

$

Not available

24

Simplicity 0917642-1

WASHER, Plain, 3/8 x 7/8 x 14 Ga.

$

$

Not available

24

Simplicity 0916965-7

LOCKWASHER, 3/8

$

$

Not available

24

Simplicity 0916950-9

NUT, 3/8NC

$

$

Not available

25

Simplicity 1657684-5

LEVER ASSEMBLY, Idler

$

$

Not available

26

Simplicity 1656936-0

SPRING

$

$

Not available

27

Simplicity 1666294-2

SPACER

$

$

Not available

28

Simplicity 1665432-9

PULLEY ASSEMBLY

$

$

Not available

29

Simplicity 2026881-9

CAPSCREW, 3/8NC x 1-1/4

$

$

Not available

29

Simplicity 0917642-1

WASHER, Plain, 3/8 x 7/8 x 14 Ga.

$

$

Not available

29

Simplicity 0916965-7

LOCKWASHER, 3/8

$

$

Not available

29

Simplicity 0917421-0

NUT, Lock, 3/8NC

$

$

Not available

-

Simplicity 1685144-6

PULLEY KIT

$

$

Not available

-

Simplicity 1685252-7

SHAFT ASSEMBLY KIT, Center Arbor

$

$

Not available

-

Simplicity 1685251-9

SHAFT ASSEMBLY KIT, Ouside Arbor

$

$

Not available
