1690715 - Simplicity Garden Tool Kit Garden Tool Kit Group (3088I01) Parts Diagram

Garden Tool Kit

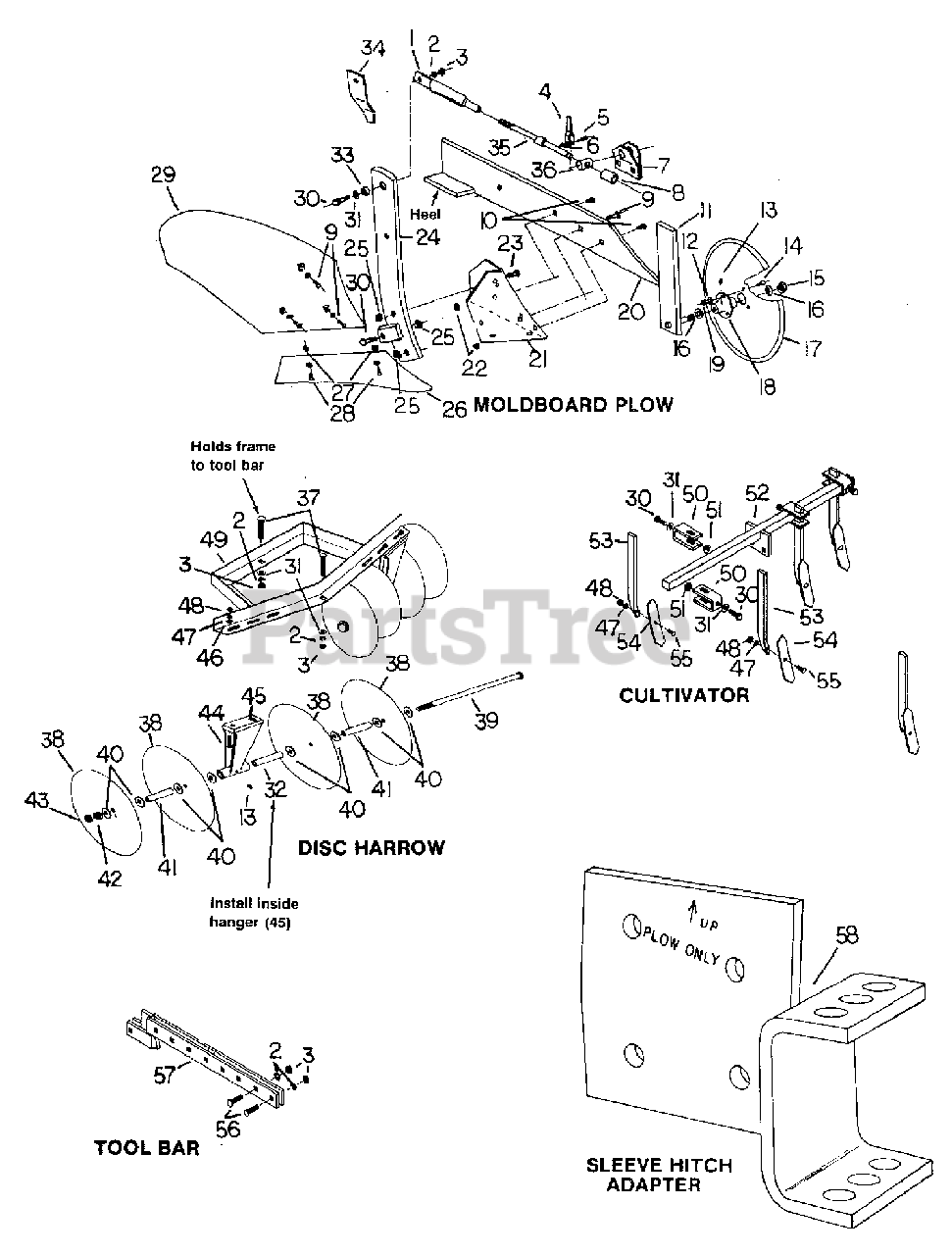

Garden Tool Kit Group (3088I01) Parts Diagram

  • Title

1

Simplicity P-256P

TREAHDED TUBE

$

$

Not available

2

Simplicity 40M1600P

LOCKWASHER, 1/2

$

$

Not available

3

Simplicity 39M1600P

NUT, Hex, 1/2

$

$

Not available

4

Simplicity P-552P

HANDLE ASSEMBLY

$

$

Not available

5

Simplicity 1M0820P

BOLT, Hex, 1/4 x 1-1/4

$

$

Not available

6

Simplicity B1673P

NUT, 1/4" Hex Lock

$

$

Currently unavailable

7

Simplicity P-541

BRACKET ASSEMBLY

$

$

Not available

8

Simplicity P-554P

SPACER, Tube

$

$

Not available

9

Simplicity 15M1632P

BOLT, Plow, 1/2 x 2

$

$

Not available

10

Simplicity 15M1216P

BOLT, Plow, 3/8 x 1

$

$

Not available

11

Simplicity P-499

COULTER HANGER ASSEMBLY

$

$

Not available

12

Simplicity 45M1111P

WASHER, Plain, 5/16

$

$

Not available

13

Simplicity D-128P

FITTING, Lube

$

$

Not available

14

Simplicity 10M1012P

BOLT, Carriage, 5/16-3/4

$

$

Not available

15

Simplicity B-1678P

NUT, Hex, Lock, 5/8

$

$

Not available

16

Simplicity 45M2121P

WASHER, Plain, 5/8 SAE

$

$

Not available

17

Simplicity P-272

BLADE, Coulter

$

$

Not available

18

Simplicity P-250-1

HUB, Coulter

$

$

Not available

19

Simplicity B1674P

NUT, 5/16" Hex Lock

$

$

Currently unavailable

20

Simplicity P-281

LANDSIDE ASSEMBLY

$

$

Not available

21

Simplicity P-273

PLOW FROG

$

$

Not available

22

Simplicity 35M1200

NUT, Square, 3/8

$

$

Not available

23

Simplicity 10M1642P

BOLT, Carriage, 1/2 x 1-1/2

$

$

Not available

24

Simplicity P-490

STANDARD ASSEMBLY

$

$

Not available

25

Simplicity 35M1600P

NUT, Square, 1/2

$

$

Not available

26

Simplicity P-275

10" SHARE

$

$

Not available

27

Simplicity 35M1400

NUT, Square, 7/16

$

$

Not available

28

Simplicity 15M1416

BOLT, Plow, 7/16-1

$

$

Not available

29

Simplicity P-278

MOLDBOARD, 10"

$

$

Not available

30

Simplicity 2M1624P

BOLT, Hex, 1/2 x 1-1/2

$

$

Not available

31

Simplicity 45M1717P

WASHER, Plain, 1/2

$

$

Not available

32

Simplicity D-121

BEARING

$

$

Not available

33

Simplicity P-234

BUSHING

$

$

Not available

34

Simplicity P-498

BRACKET, Plow

$

$

Not available

35

Simplicity P-494

CRANK ASSEMBLY

$

$

Not available

36

Simplicity P-264P

TRUNNION

$

$

Not available

37

Simplicity 10M1655P

BOLT, Carriage, 1/2-3-1/2

$

$

Not available

38

Simplicity D-126

BLADE, Disk

$

$

Not available

39

Simplicity D-144

BOLT, Gang, 3/4-16

$

$

Not available

40

Simplicity D-143P

WASHER, Flat, 3/4

$

$

Not available

41

Simplicity D-122P

SPACER

$

$

Not available

42

Simplicity 30M2400P

NUT, Hex, 3/4

$

$

Not available

43

Simplicity 31M2400P

NUT, Hex, Jam, 3/4

$

$

Not available

44

Simplicity 10M1224P

BOLT, Carriage, 3/8 x 1-1/2

$

$

Not available

45

Simplicity D-181

HANGER, Bearing

$

$

Not available

46

Simplicity 45M1313P

WASHER, Plain, 3/8

$

$

Not available

47

Simplicity 40M1200P

LOCKWASHER, 3/8

$

$

Not available

48

Simplicity 30M1200P

NUT, Hex, 3/8

$

$

Not available

49

Simplicity D-182

FRAME ASSEMBLY

$

$

Not available

50

Simplicity NLA - B-1430

CLAMP, Shank

$

$

Currently unavailable

51

Simplicity B-2178P

NUT, Flange, 1/2

$

$

Not available

52

Simplicity B-2361

CROSS BAR ASSEMBLY, 36"

$

$

Not available

53

Simplicity NLA - B-1429

SHANK

$

$

Currently unavailable

54

Simplicity B-1252

SHOVEL

$

$

Not available

55

Simplicity 15M1224P

BOLT, Plow, 3/8-1-1/2

$

$

Not available

56

Simplicity 10M1632P

BOLT, Carriage, 1/2 x 2

$

$

Not available

57

Simplicity H-457

DRAWBAR ASSEMBLY

$

$

Not available

58

Simplicity H-455

BRACKET ASSEMBLY, Hitch

$

$

Not available
