1690710 - Simplicity 36" Mower Deck 36" Clutch & Roller Support Group Parts Diagram

36" Mower Deck

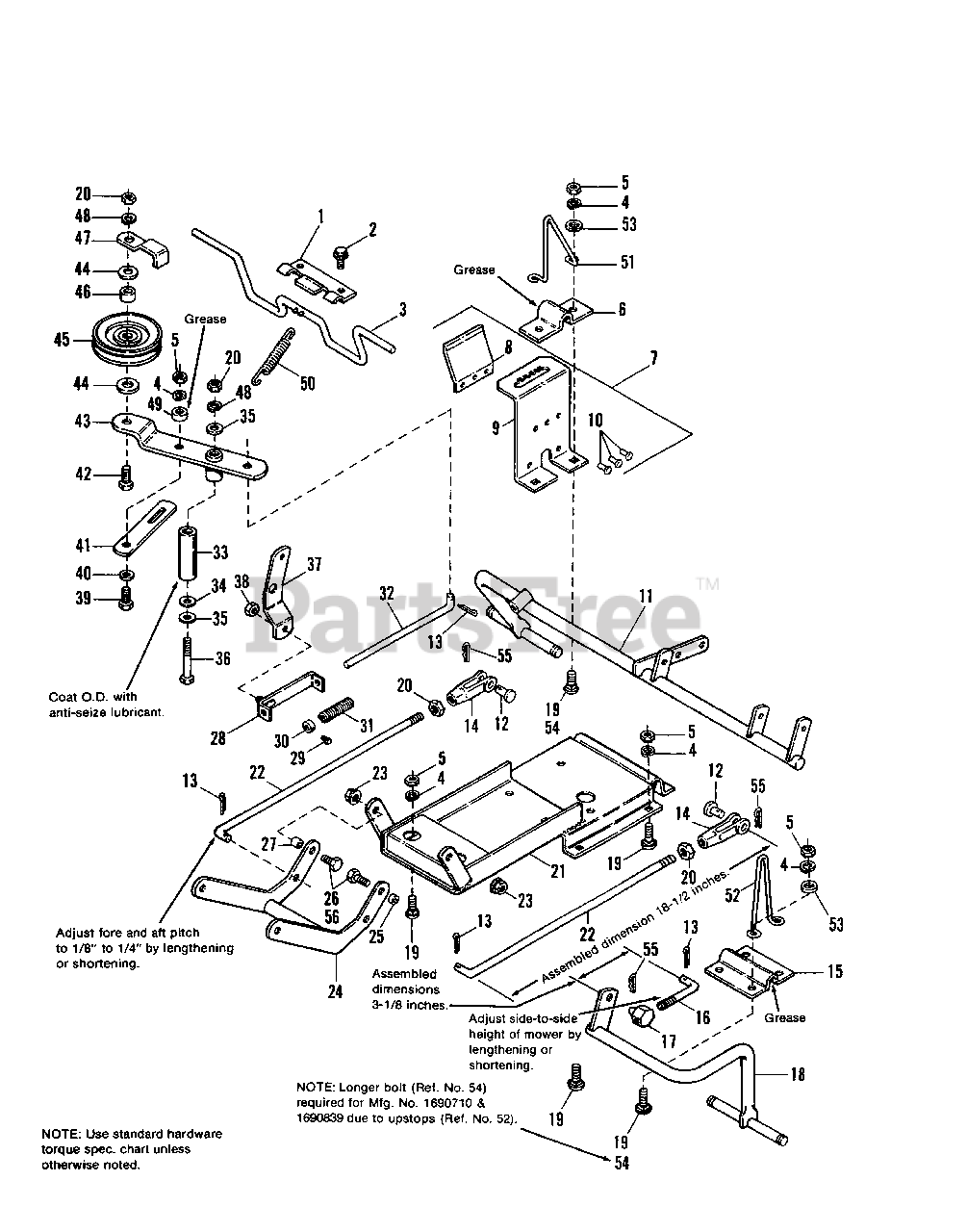

36" Clutch & Roller Support Group Parts Diagram

  • Title

1

Simplicity 1655507

SUPPORT, Brake

$

$

Not available

2

Simplicity 2827428

SCREW, Hex, Washer Hd., Taptite, 1/4-20 x 3/8

$

$

Not available

3

Simplicity 1655425SM

ROD ASSY., Brake

Note: Used on all Mfg. No. 1690627 & 1690710 and on 1690839 before serial no. 1010.

$33.99

$

Usually ships in 2-12 days

0

3

Simplicity 1673110SM

ROD ASSY., Brake

Note: Used on Mfg. No. 1690839 serial no. 1010 and higher.

$

$

Not available

4

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 1654655

STRAP

$

$

Not available

7

Simplicity 1663223SM

QUADRANT ASSY.

$34.99

$

Usually ships in 2-12 days

0

8

Simplicity 1663222SM

SPRING, Flat

Note: Order Part No. 1663222 to fit quadrant with five rivet holes. Order Part No. 1602200 to fit quadrant with two rivet holes.

$

$

Not available

Simplicity 1602200

SPRING, Flat

$

$

Not available

9

QUADRANT (Order Part No. 1663223)

$

$

Not available

10

Simplicity 2810542SM

RIVET, Tubular, 3/16 x 5/16

$3.99

$

Usually ships in 2-12 days

0

11

Simplicity 1668099ASM

SUPPORT ASSY., Roller, R.H.

$311.99

$

Usually ships in 2-12 days

0

12

Simplicity 2823087

PIN, Clevis

$

$

Not available

13

Simplicity 2818447

PIN, Cotter, 3/32 x 3/4

$

$

Not available

14

Simplicity 2108157SM

CLEVIS, Adjusting

$24.99

$

Usually ships in 2-12 days

0

15

Simplicity 1653768ASM

CLAMP, Wheel Support

$12.99

$

Usually ships in 2-12 days

0

16

Simplicity 1655811SM

ROD, Bolt

$20.99

$

In Stock, only 2 left!

0

17

Simplicity 2108512SM

PIVOT

$36.99

$

In Stock, only 1 left!

0

18

Simplicity 1668098SM

SUPPORT ASSY., Roller, L.H.
(Superseded to 1668098ASM)

$170.99

$

Usually ships in 2-12 days

0

19

Simplicity 2820562

BOLT, Carriage, 5/16-18 x 3/4 (Qty. 14 for 1690627)

$

$

Not available

20

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16 (Qty. 6 on 1690839)
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

21

Simplicity 1685253

SUPPORT ASSY., Mower
(Superseded to 1685253SM)

Note: (1690627 & 1690710, and Model 1690839 before serial no. 1699)

$148.99

$

Usually ships in 2-12 days

0

21

Simplicity 1702341

SUPPORT ASSY., Mower (1690839 after serial no. 1698)
(Superseded to 1702341ASM)

$271.99

$

Usually ships in 2-12 days

0

22

Simplicity 1702502SM

ROD, Height Adjustment

$

$

Not available

23

Simplicity 2830645

LOCKNUT, Hex, Flange, 3/8-16

$

$

Not available

24

Simplicity 1674011

ARM ASSY., Rocker (1690627 & 1690710 & 1690839 before serial no. 1699)
(Superseded to 1674011ASM)

$66.99

$

Usually ships in 2-12 days

0

24

Simplicity 1674011ASM

ARM ASSY., Rocker (1690839 after serial no. 1698)

$66.99

$

Usually ships in 2-12 days

0

25

Snapper 2118335SM

SPACER

$8.49

$

Usually ships in 2-12 days

0

26

Simplicity 2821210

CAPSCREW, Hex Hd., 3/8-16 x 1

$

$

Not available

27

Simplicity 2154177SM

SPACER

$39.99

$

In Stock, only 1 left!

0

28

Simplicity 2108662SM

GUIDE ASSY., Rod

$

$

Not available

29

Simplicity 2828804

SETSCREW, 1/4-20 x 3/8

$

$

Not available

30

Simplicity 1729276SM

COLLAR, Set

$

$

Not available

31

Simplicity 2163103SM

SPRING

$8.49

$

Usually ships in 2-12 days

0

32

Simplicity 2171320SM

ROD, Clutch

$

$

Not available

33

Simplicity 1657242SM

SPACER

$10.99

$

In Stock, Qty 10

0

34

Simplicity 2824356

WASHER

$

$

Not available

35

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

36

Simplicity 1928957SM

CAPSCREW, Hex Hd., 3/8-16 x 2-3/4

$6.49

$

In Stock, only 2 left!

0

37

Simplicity 1656991ASM

ARM, Pivot (1690627 only)

$25.99

$

Usually ships in 2-12 days

0

37

Simplicity 1669283

ARM, Pivot (1690710 & 1690839)

$

$

Not available

38

Simplicity 2823362

LOCKNUT, Hex, 5/16-18

$

$

Not available

39

Simplicity 2821333

CAPSCREW, Hex Hd., 5/16-18 x 1.0

$

$

Not available

40

Simplicity 2817377

WASHER, Plain, 1/4

$

$

Not available

41

Simplicity 1701563SM

LEVER, Brake

$

$

Not available

42

Simplicity 2821971

CAPSCREW, Hex Hd., 3/8-16 x 1-3/4 (Was 921969, 1-1/2)

$

$

Not available

43

Simplicity 1677750SM

LEVER ASSY., Clutch

$

$

Not available

44

Simplicity 2822755

WASHER, Plain
(Superseded to 704128)

$4.99

$

In Stock, Qty 11

0

45

Simplicity 1685150SM

PULLEY ASSY. (Incl. Ref. No. 46)

$34.99

$

In Stock, Qty 20+

0

46

Simplicity 1666294SM

SPACER

$4.99

$

In Stock, Qty 20+

0

47

Simplicity 2106717

GUIDE, Belt

$

$

Not available

48

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 18

0

49

Simplicity 2165034SM

SPACER

$9.49

$

Usually ships in 2-12 days

0

50

Simplicity 2159159SM

SPRING

$37.99

$

In Stock, only 1 left!

0

51

Simplicity 1669232SM

UP-STOP, R.H. (Not used on 1690627)

$

$

Not available

52

Simplicity 1669233SM

UP-STOP, L.H. (Not used on 1690627)

$11.99

$

Usually ships in 2-12 days

0

53

Simplicity 2817642

WASHER, Plain, 5/16 (Not used on 1690727)

$

$

Not available

54

Simplicity 2820564

BOLT, Carriage, 5/16-18 x 1-1/4 (Not used on 1690627)

$

$

Not available

55

Simplicity 2106787

CLIP, Hairpin

$

$

Not available

56

Simplicity 1920415SM

CAPSCREW, Hex Hd., 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0
