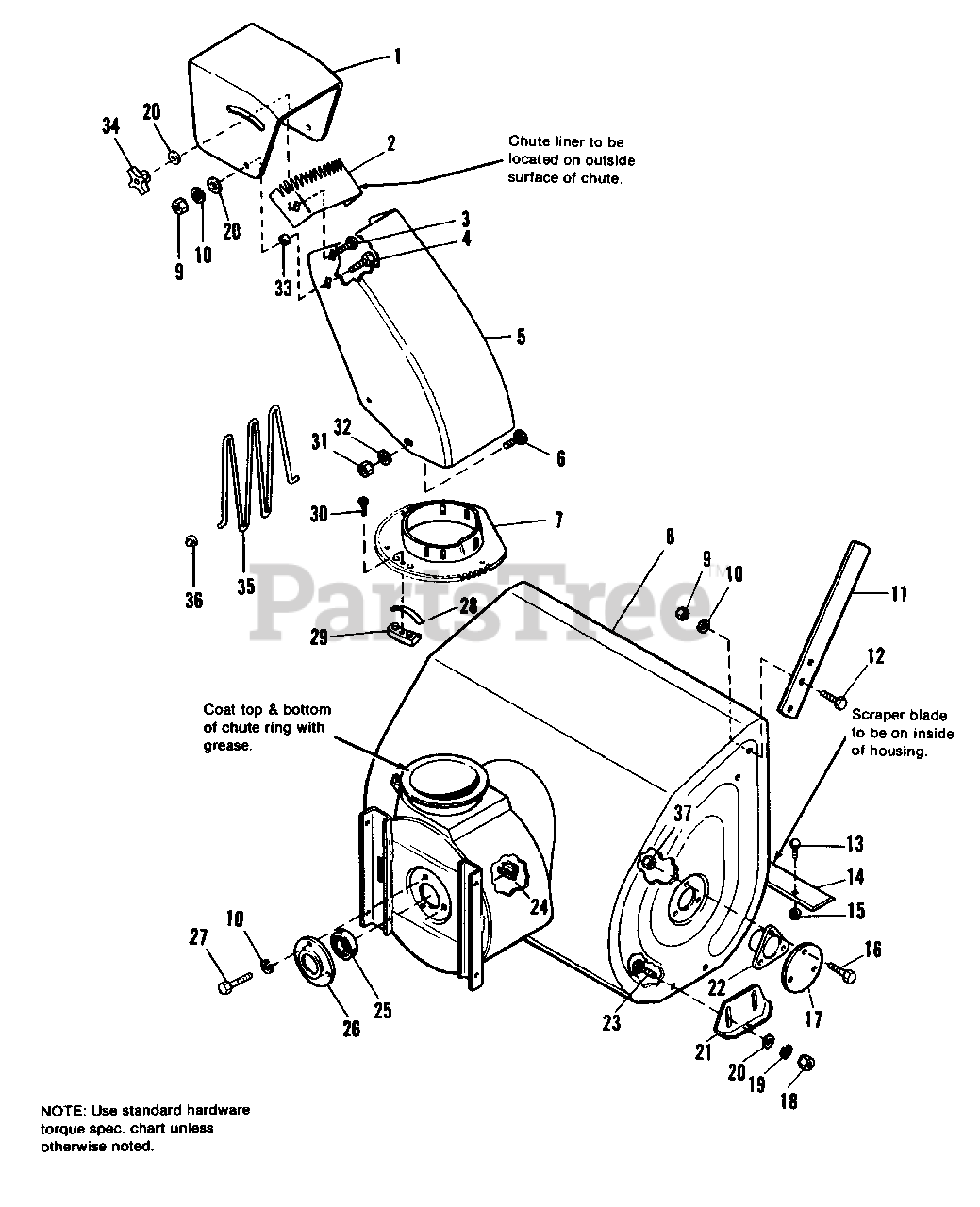

1690675 - Simplicity 32" Snow Thrower, 10hp Auger Housing & Chute Group Parts Diagram

32" Snow Thrower, 10hp

Auger Housing & Chute Group Parts Diagram

  • Title

1

Simplicity 1667791A

DEFLECTOR ASSY.
(Superseded to 1667791ASM)

$37.99

$

Usually ships in 2-12 days

0

2

Simplicity 1667828SM

LINER, Chute

$30.99

$

Usually ships in 2-12 days

0

3

Simplicity 2823055

BOLT, Carriage, 5/16-18 x 7/8

$

$

Not available

4

Simplicity 2836482

SCREW, Truss Phil Hd., 5/16-18 x 3/4

$

$

Not available

5

Simplicity 1671011SM

CHUTE
(Superseded to 1671011ASM)

$86.99

$

Usually ships in 2-12 days

0

6

Simplicity 2823333

BOLT, Carriage, 1/4-20 x 5/8

$

$

Not available

7

Simplicity 1678634SM

GEAR, Chute

$

$

Not available

8

Simplicity 1667509

HOUSING ASSY., Auger, 60 cm (24")(Used on Mfg. No. 1690543, 1690544, 1690775, 1690903, 1691023)

Note: Ref. No. 8 includes Ref. No. 13, 14 & 15.

$

$

Not available

8

Simplicity 1667510

HOUSING ASSY., Auger, 70 cm (28")(Used on Mfg. No. 1690545, 1690678, 1690776, 1690778)

$

$

Not available

8

Simplicity 1667511

HOUSING ASSY., Auger, 80 cm (32")(Used on Mfg. No. 1690546, 1690679, 1690777, 1690779)

$

$

Not available

9

Simplicity 1917372SM

NUT, 5/16-18 (Qty. 6, 8 & 10 HP only)
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

10

Simplicity 1917356SM

LOCKWASHER, 5/16 (Qty. 9, 8 & 10 HP only)
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

11

Simplicity 1715787

CUTTER, Drift (8 & 10 HP only)
(Superseded to 1715787CSM)

$37.99

$

Usually ships in 2-12 days

0

12

Simplicity 2821332

CAPSCREW, Hex Hd., 5/16-18 x 3/4 (8 & 10 HP only)

$

$

Not available

13

Simplicity 2820561

BOLT, Carriage, 5/16-18 x 5/8 (Qty. 7, 10 HP only)

$

$

Not available

14

Simplicity 1709946

BLADE, Scraper, 60 cm (24")
(Superseded to 1709946ASM)

$39.99

$

In Stock, Qty 6

0

14

Simplicity 1709947

BLADE, Scraper, 70 cm (28")
(Superseded to 1709947BMYP)

$45.99

$

In Stock, Qty 18

0

14

Simplicity 1697988

BLADE, Scraper, 80 cm (32")

$

$

Not available

15

Simplicity 2835048

LOCKNUT, Flange, 5/16-18 (Qty. 7, 10 HP only)

$

$

Not available

16

Simplicity 2823325

CAPSCREW, Hex Hd., 5/16-18 x 7/8

$

$

Not available

17

Simplicity 1668639CSM

CAP, Bearing
(Superseded to 1668639BMYP)

$51.99

$

Usually ships in 2-12 days

0

18

Simplicity 2816950SM

NUT, Hex, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

19

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

20

Simplicity 2817642

WASHER, Flat, 5/16

$

$

Not available

21

Simplicity 2177434C

SKID

$

$

Not available

22

Simplicity 1665980SM

BEARING, Auger

$

$

Not available

23

Simplicity 2822110

BOLT, Carriage, 3/8-16 x 3/4

$

$

Not available

24

Simplicity 2830659

NUT, Retainer, 5/16-18

$

$

Not available

25

Simplicity 2108202SM

BEARING, Ball

$11.99

$

In Stock, Qty 20+

0

26

Simplicity 1665982ASM

RETAINER, Bearing
(Superseded to 1665982SM)

$6.99

$

In Stock, Qty 17

0

27

Simplicity 2825205

CAPSCREW, Hex Hd., 5/16-18 x 5/8

$

$

Not available

28

Simplicity 1667865SM

SPRING

$10.99

$

In Stock, Qty 5

0

29

Simplicity 1666613SM

HOLD DOWN, Chute

$3.49

$

In Stock, Qty 20+

0

30

Simplicity 1960001SM

SCREW, Plastite #10
(Superseded to 703062)

$4.49

$

In Stock, only 3 left!

0

31

Simplicity 2820397

LOCKNUT, Nylon, 1/4-20

$

$

Not available

32

Simplicity 2817377

WASHER, Flat, 1/4

$

$

Not available

33

Simplicity 1667790SM

SPACER

$13.99

$

Usually ships in 2-12 days

0

34

Simplicity 1670578SM

KNOB, 4 Arm w/5/16-18 Thd. Insert

$13.99

$

Usually ships in 2-12 days

0

35

Simplicity 1704446SM

GUARD, Chute (Used on Mfg. No.1690775, 1690776, 1690777, 1690778, 1690779, 1690903, 1691023)

$22.99

$

Usually ships in 2-12 days

0

36

Simplicity 1960126SM

PUSHNUT (Used on Mfg. No. 1690775, 1690776, 1690777, 1690778, 1690779, 1690903, 1691023)
(Superseded to 704066)

$4.99

$

In Stock, Qty 14

0

37

Simplicity 2823362

NUT, Hex, Center Lock, 5/16-18

$

$

Not available
