1690592 - Simplicity Sno-Pro 28" Snow Thrower, 8hp Spout Group Parts Diagram

Sno-Pro 28" Snow Thrower, 8hp

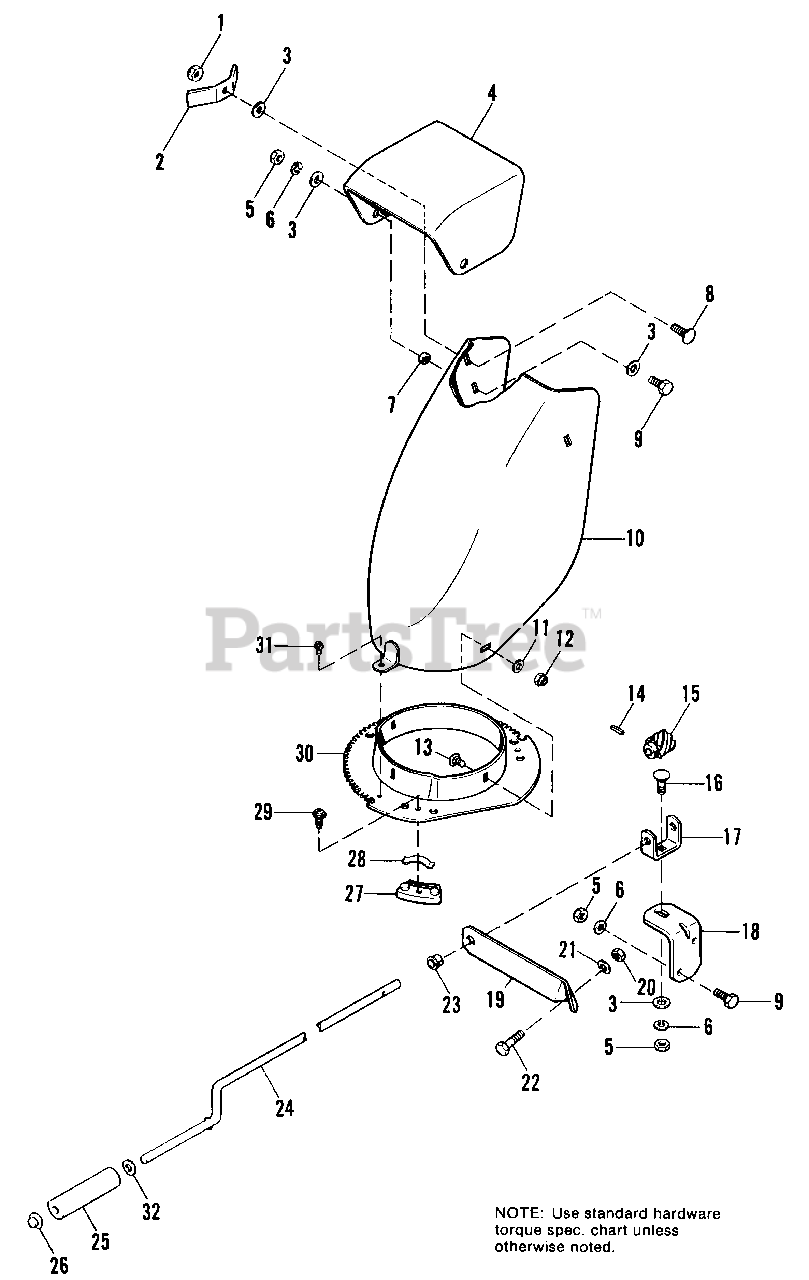

Spout Group Parts Diagram

  • Title

1

Simplicity 2823362

LOCKNUT, Hex, 5/16-18

$

$

Not available

2

Simplicity 2106229

NUT, Wing, 5/16-18

$

$

Not available

3

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

4

Simplicity 1667791A

DEFLECTOR, Chute
(Superseded to 1667791ASM)

$37.99

$

Usually ships in 2-12 days

0

5

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

7

Simplicity 1667790SM

SPACER

$13.99

$

Usually ships in 2-12 days

0

8

Simplicity 2820563

BOLT, Carriage, 5/16-18 x 1

$

$

Not available

9

Simplicity 2821332

CAPSCREW, Hex, 5/16-18 x 3/4

$

$

Not available

10

Simplicity 1667809

CHUTE ASSY.

$

$

Not available

11

Simplicity 2817377

WASHER, Plain, 1/4

$

$

Not available

12

Simplicity 2820397

LOCKNUT, Nylon. 1/4-20

$

$

Not available

13

Simplicity 2823333

BOLT, Carriage, 1/4-20 x 5/8

$

$

Not available

14

Simplicity 2816168SM

PIN, Spring, 1/8 x 3/4

$4.49

$

In Stock, Qty 13

0

15

Simplicity 1668186SM

GEAR, Worm

$41.99

$

In Stock, only 3 left!

0

16

Simplicity 2820562

BOLT, Carriage, 5/16-18 x 3/4

$

$

Not available

17

Simplicity 1685369SM

BRACKET, Worm

$6.49

$

Usually ships in 2-12 days

0

18

Simplicity 1667569

BRACKET, Worm Support

$

$

Not available

19

Simplicity 1667515

BRACKET, Chute Control

$

$

Not available

20

Simplicity 2816622SM

NUT, Hex, Full, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

21

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

22

Simplicity 2822837

CAPSCREW, Hex, 1/4-20 x 1-1/2

$

$

Not available

23

Simplicity 1667588SM

BUSHING, Plastic

$5.99

$

In Stock, Qty 20+

0

24

Simplicity 1667514

ROD, Chute Control

$

$

Not available

25

Simplicity 1667690

HANDLE, Plastic

$

$

Not available

26

Simplicity 1960093SM

PALNUT
(Superseded to 703948)

$4.49

$

In Stock, Qty 17

0

27

Simplicity 1666613SM

HOLD DOWN, Chute

$3.49

$

In Stock, Qty 20+

0

28

Simplicity 1667865SM

SPRING

$10.99

$

In Stock, Qty 5

0

29

Simplicity 1960001SM

SCREW, Plastic, #10
(Superseded to 703062)

$4.49

$

In Stock, only 3 left!

0

30

Simplicity 1667793

GEAR, Chute

$

$

Not available

31

Simplicity 2829000

SCREW, Hex, Taptite, 1/4-20 x 3/8

$

$

Not available

32

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0
