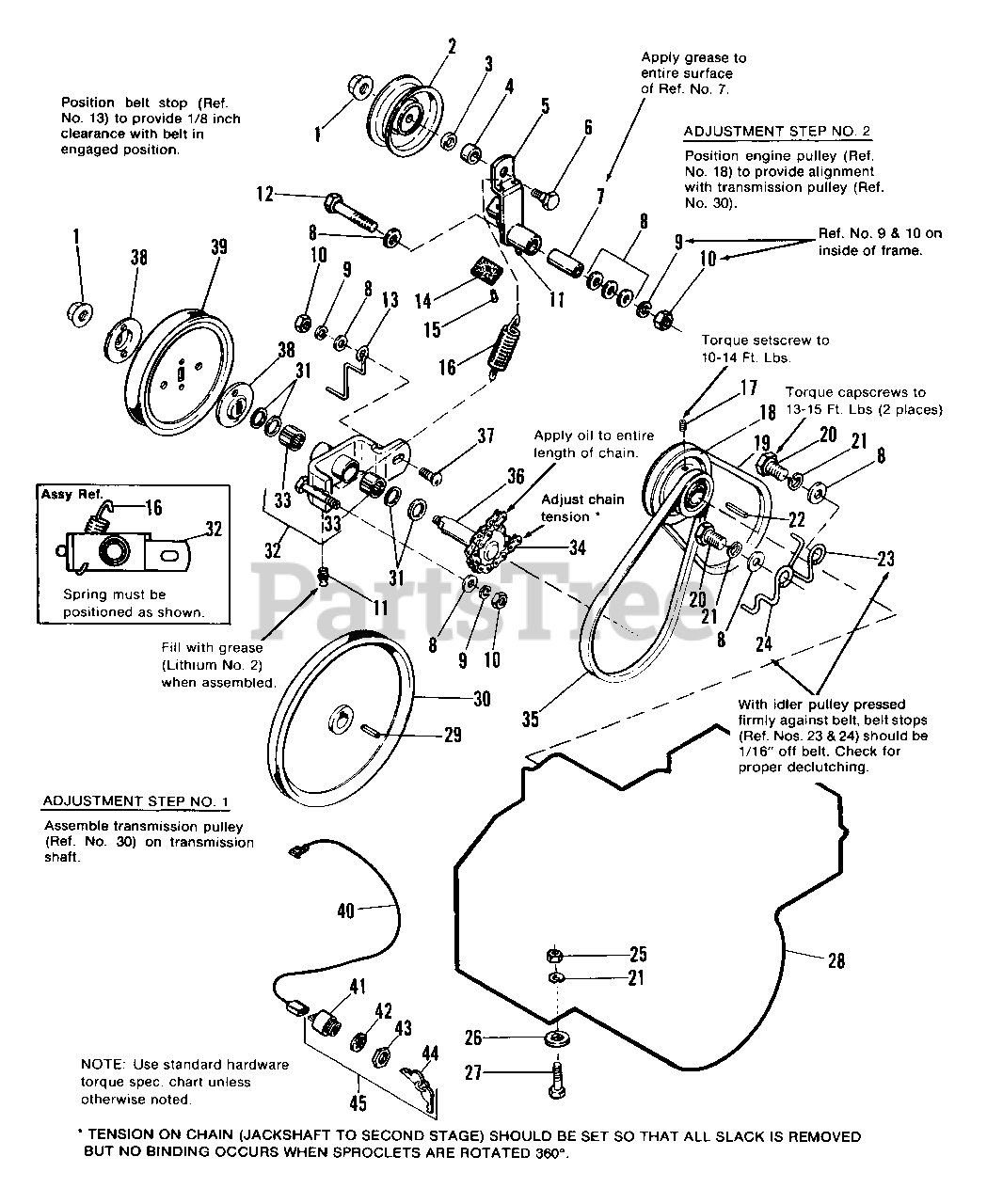

1690592 - Simplicity Sno-Pro 28" Snow Thrower, 8hp Engine & Drive Group Parts Diagram

Sno-Pro 28" Snow Thrower, 8hp

Engine & Drive Group Parts Diagram

  • Title

1

Simplicity 2830645

LOCKNUT, Hex, Flange, Whiz, 3/8-16

$

$

Not available

2

Simplicity 1657827

PULLEY, Idler

$

$

Not available

3

Simplicity 1666295

SPACER, Inner Race

$

$

Not available

4

Simplicity 2174870SM

SPACER

$45.99

$

Usually ships in 2-12 days

0

5

Simplicity 1657861

LEVER & BRAKE ASSY. (Includes Ref. Nos. 11, 14 & 15)

$

$

Not available

6

Simplicity 1920415SM

CAPSCREW, Hex Hd., 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

7

Simplicity 1729261SM

SPACER

$13.99

$

Usually ships in 2-12 days

0

8

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

9

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

10

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

11

Simplicity 2821133SM

FITTING, Grease
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

12

Simplicity 2821972

CAPSCREW, Hex Hd., 3/8-16 x 2-1/2

$

$

Not available

13

Simplicity 1656938

STOP, Belt

$

$

Not available

14

Simplicity 1654500

PAD, Brake

$

$

Not available

15

Simplicity 921429

RIVET, #7 x 3/8, Brass

$

$

Not available

16

Simplicity 2121037SM

SPRING

$

$

Not available

17

Simplicity 2830544

SETSCREW, 5/16-18 x 3/8

$

$

Not available

18

Simplicity 106939

PULLEY, Engine

$

$

Not available

19

Simplicity 1664457SM

V-BELT, 40"

$28.99

$

Usually ships in 2-12 days

0

20

Simplicity 2821515

CAPSCREW, Hex Hd., 5/16-24 x 3/4

$

$

Not available

21

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

22

Simplicity 1729279SM

KEY
(Superseded to 703889)

$4.49

$

In Stock, only 3 left!

0

23

Simplicity 1664500

STOP, Belt

$

$

Not available

24

Simplicity 1664499

STOP, Belt

$

$

Not available

25

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

26

Simplicity 2819381

WASHER, Special (828 & 1028)

$

$

Not available

27

Simplicity 2821221

CAPSCREW, Hex Hd., 5/16-18 x 1-1/2 (524 Only)

$

$

Not available

Simplicity 2821332

CAPSCREW, Hex Hd., 5/16-18 x 3/4 (724 Only)

$

$

Not available

Simplicity 1922127SM

CAPSCREW, Hex Hd., 5/16-18 x 1-3/4 (828 & 1028)
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

28

ENGINE, 5, 7, 8 & 10 HP, Tecumseh, Model HM50, Type 67166D

$

$

Not available

29

Simplicity 2805850SM

KEY

$

$

Not available

30

Simplicity 176213

PULLEY, Transmission

$

$

Not available

31

Simplicity 2860207SM

SPACER, Washer

$3.49

$

Usually ships in 2-12 days

0

32

Simplicity 1664139

HOUSING ASSY. (Includes Ref. Nos. 11 & 33)

$

$

Not available

33

Simplicity 2156072SM

BEARING, Roller

$24.99

$

In Stock, only 1 left!

0

34

Simplicity 2105336SM

CHAIN, W/Connecting Link (Jackshaft to Second Stage)

$29.99

$

Usually ships in 2-12 days

0

35

Simplicity 1675704SM

V-BELT

$26.99

$

Usually ships in 2-12 days

0

36

Simplicity 2106925SM

SHAFT ASSY., Sprocket (Jackshaft)

$152.99

$

Usually ships in 2-12 days

0

37

Simplicity 2822109

BOLT, Carriage, 3/8-16 x 1-1/4

$

$

Not available

38

Simplicity 2158378SM

WASHER, Special

$

$

Not available

39

Simplicity 2158377SM

PULLEY (Jackshaft)

$

$

Not available

40

Simplicity 1667700

WIRE ASSY.

$

$

Not available

41

Simplicity 2177163SM

SWITCH

$47.99

$

In Stock, only 1 left!

0

42

Simplicity 2818906

LOCKWASHER, Int., 5/8

$

$

Not available

43

Simplicity 2122234SM

NUT, Hex, 5/8-32
(Superseded to 704229)

$3.49

$

In Stock, only 1 left!

0

44

Simplicity 1717163SM

KEY & RING ASSY.

$8.99

$

In Stock, Qty 20+

0

45

Simplicity 2177163SM

SWITCH, Key

$47.99

$

In Stock, only 1 left!

0
